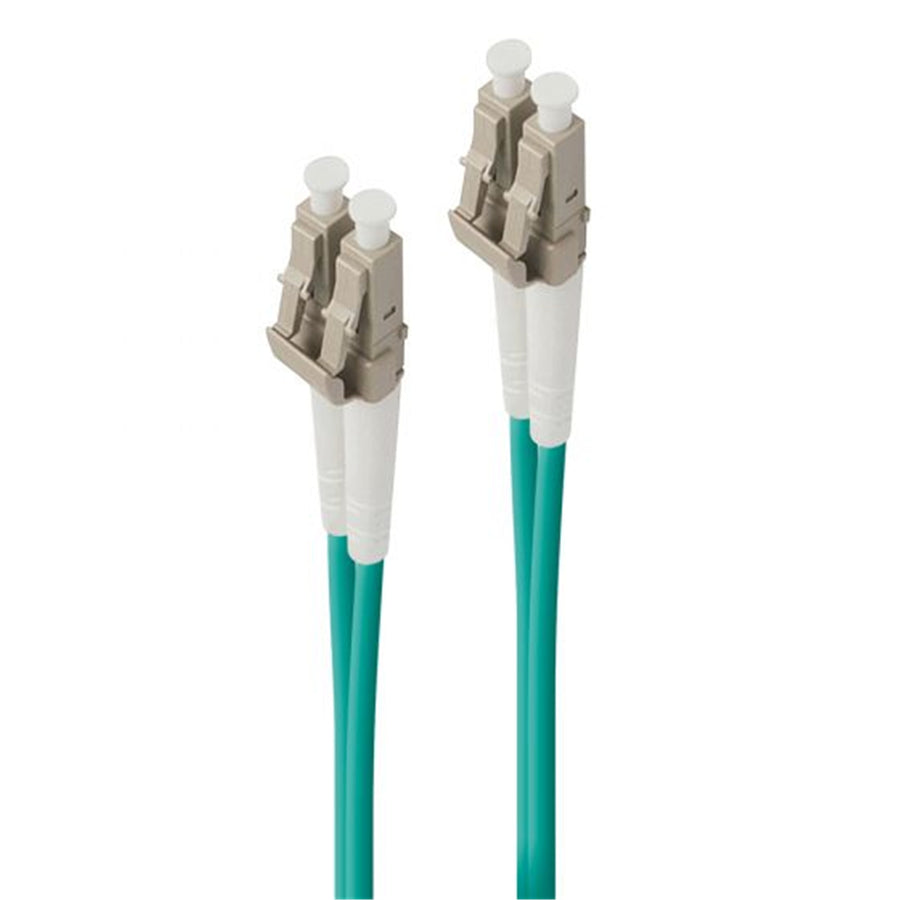

ALOGIC LCLC-03-OM4 - 3M LC-LC 40G FIBRE CABLE 50/125

Features

The Multi Mode OM4 cables are designed to support very high transfer speed, the cables are capable of supporting up to 100gigabit applications at the same time being backward compatible with OM3 and OM2 infrastructure. The cables meet or exceed industry standard specifications; each cable is individually tested for maximum reliability and comes with performance reports. The ALOGIC OM4 Patch Cables are available in various lengths starting from 0.5m to 20m length (Refer to the Ordering Information below).

- Supports 100Gigabit applications.
- Multi Mode OM4 fibre optic cable.
- Low Smoke Zero Halogen Jacket for minimal toxic emissions in case of fire.
- 100% optically tested and provided with test reports.

Specifications

Technical Specifications

Part No.	LCLC-03-OM4
Cable Length	3M
Connector	LC, LC
Jacket	LSZH (Low Smoke Zero Halogen)
Wavelengths	50 µm (OM4)/125 µm
Attenuation	At 850 nm: <3.0 dB per km \| At 1300 nm: <1.2 dB per km
Insertion loss	<0.5 dB per 300 m @ 850 nm or 1300 nm
Fiber	Glass
Number of fibers	2
Cable outer diameter	3mm +/-0.2mm
Safety	ETL/c-ETL
