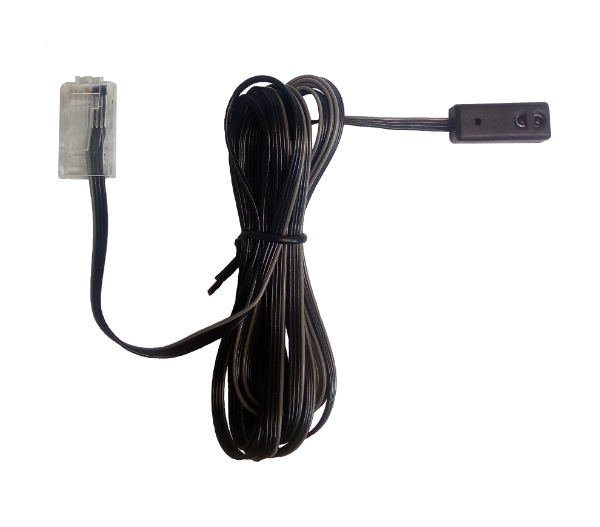

AXIUM AXIRFX3 - Single IR Receiver. Plasma LED LCD Sky/MySky Box Friendly
Each AXIRFX3 Single contains 1x AXIRFX3 IR Receiver. FEATURES: Excellent IR receiver range: 8m ± 45° (Depends on ambient light levels and remote control strength) Receives/processes very short pulse burst codes systems as used by some set-top box receivers Wide input voltage range: 8V~16V DC 50mA Amplifier ON indicator and IR reception “flashback” indicator. (Both can be defeated) Default modulation frequency: 38KHz ± 1% Multiple AXIRFX3 receivers may be connected in parallel High Strength Acrylic sticky mounts are used to attach the IRFX3 The receiver has excellent off-axis reception, giving >50% range when 45° off-axis Flat 4 core 28AWG 2m black lead Ingenious Rear / Bottom cable exit Enhanced EMI immunity with Data Stream Filtering Rejects IR disturbances that can slow down or cause intermittent problems on IR systems Fitted with RJ45 for easy connection via wall plates or direct to EX4-N Supplied with 3 shell colours Black White Silver Dimensions: Width 9.0mm Length 22.0mm Height 6.5mm • Approvals: C-Tick CISPR22, FCC
