Cambium Networks C000000L065A - Cambium C000000L065A Gigabit Surge Supressor (30V)

C000000L065A

Cambium Networks C000000L065A - Cambium C000000L065A Gigabit Surge Supressor (30V)

Cambium Networks designs outdoor wireless broadband solutions to operate in the toughest of environments. Lightning strikes are the most typical cause of system outages or failures of mast-mounted equipment especially when mounted as high as 300m. The Gigabit Ethernet Surge Suppressor is critical for lightning protection to minimize the potential for damage.

Network operators should always follow best-practices for grounding and lightning protection. Doing so will minimize network outages and reduce the associated costs of tower climbs and equipment repair/replacement.

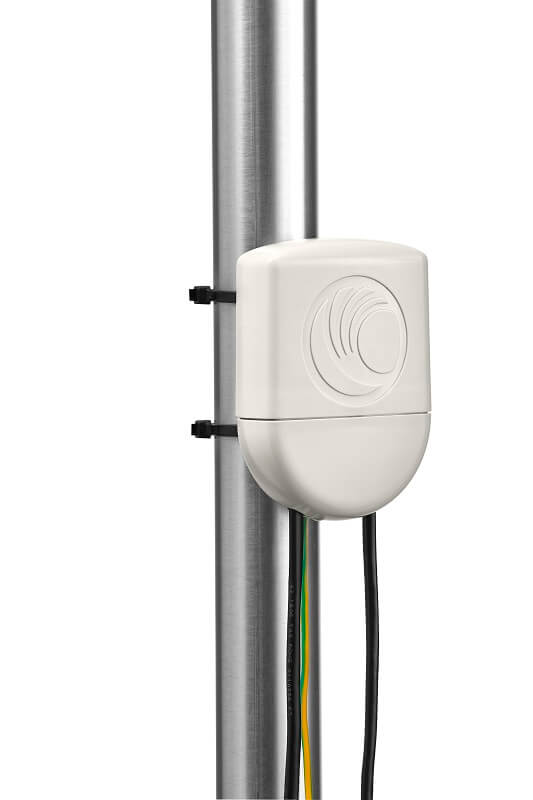

The C000000L065A Gigabit Ethernet Surge Suppressor is compatible with the PMP 450 and PMP 450b Subscriber Modules that are powered with 30V PoE injectors. It’s also compatible with the Force 180, Force 200, and other Cambium products that are powered by 30V PoE injectors. It’s compatible with both 1000BaseT (Gigabit Ethernet) and 100BaseT (Fast Ethernet). The surge suppressor ships with hardware suitable for mounting to a wall or pole.

Details
Product Code	C000000L065B
Connectors	(2) Gigabit Ethernet, RJ-45
Nominal Voltage	30V
Protection Mode	Line-to-line and line-to-ground
Surge Arrestor	TVS Diodes (Transient Voltage Suppression for longer operational life)
Surge Current Rating, L-G, total	216A, 10/1000us
Response time	5 nanoseconds typical
Dimensions	118mm x 87.5mm x 46.5mm
Weight	156gm
Wind Survival	200 mph (321 km/hour)
Operating Temperature	-40° C to +60° C
Humidity	100% condensing
Environmental Protection	IP54 (Dust and Water Intrusion Protection)
