Cambium Networks

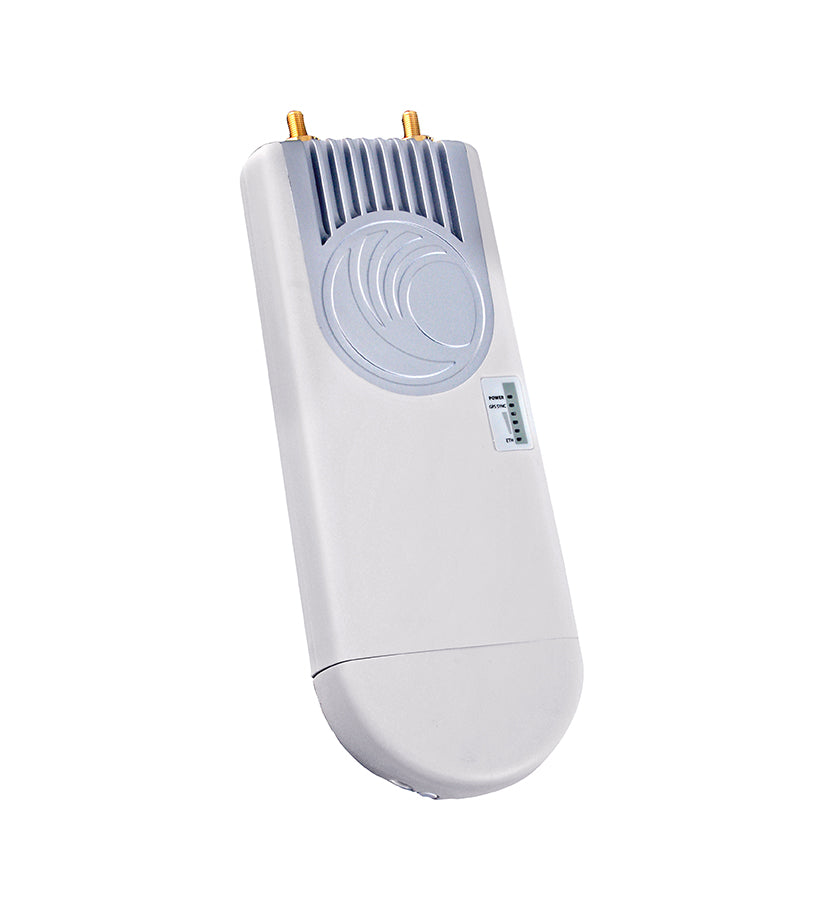

Cambium Networks C025900A621A - Cambium ePMP 1000 2.5GHz CPE Connectorised Radio (ROW) for MSP
$65.00
Free shipping over $299
Genuine product
7-day returns
C025900A621A
Cambium Networks C025900A621A - Cambium ePMP 1000 2.5GHz CPE Connectorised Radio (ROW) for MSP
Description
Cambium ePMP 1000 2.5GHz CPE Connectorised Radio (ROW).
Wireless service providers and enterprises need reliable, high-quality broadband connectivity that can be rapidly deployed and expanded. The ePMP architecture provides highly scalable broadband access solution that will allow you to build and expand your network with a faster return on investment. Cambium Networksâ radios deliver bandwidth-intensive services such as VoIP, video and data to end users in multiple vertical markets, with high performance and exceptional reliability. Using the 2.5 GHz frequency spectrum, the ePMP architecture is the most effective connectivity solution for reaching the under and unconnected around the world.
Cambium Networksâ ePMP 1000 Connectorised Radio provides more than 150 Mbps of real user throughput. Using 2x2 MIMO-OFDM technologies, ePMP deployments achieve industry leading data rates.
The ePMP 1000 Connectorised Radio has the exibility to connect to a variety of external antennas such as 90 and 120 degree sector, omni and high-gain panel or dish antennas. This versatility allows service providers to con gure their network using high gain antennas to satisfy the most challenging environments.
The ePMP 1000 Connectorised Radio can be configured as a Subscriber Module, an unsynchronised Access Point, or a Backhaul radio. This radio will function as a client (slave) to an ePMP GPS Synchronised Radio in either a PMP or PTP deployment forming a GPS Synchronised solution.
Wireless service providers and enterprises need reliable, high-quality broadband connectivity that can be rapidly deployed and expanded. The ePMP architecture provides highly scalable broadband access solution that will allow you to build and expand your network with a faster return on investment. Cambium Networksâ radios deliver bandwidth-intensive services such as VoIP, video and data to end users in multiple vertical markets, with high performance and exceptional reliability. Using the 2.5 GHz frequency spectrum, the ePMP architecture is the most effective connectivity solution for reaching the under and unconnected around the world.
Cambium Networksâ ePMP 1000 Connectorised Radio provides more than 150 Mbps of real user throughput. Using 2x2 MIMO-OFDM technologies, ePMP deployments achieve industry leading data rates.
The ePMP 1000 Connectorised Radio has the exibility to connect to a variety of external antennas such as 90 and 120 degree sector, omni and high-gain panel or dish antennas. This versatility allows service providers to con gure their network using high gain antennas to satisfy the most challenging environments.
The ePMP 1000 Connectorised Radio can be configured as a Subscriber Module, an unsynchronised Access Point, or a Backhaul radio. This radio will function as a client (slave) to an ePMP GPS Synchronised Radio in either a PMP or PTP deployment forming a GPS Synchronised solution.
Features
- Suitable for Managed Spectrum Park (MSP) 2.6GHz
- Covers 2580 - 2620 MHz frequencies
Specifications
| Details | |
|---|---|
| Manufacturer's Code | C025900A821A, C025900A021A, C025900A621A |
| Output Power | -17 to +26 dBm (combined, to regional EIRP limit) (1 dB interval) |
| Channel Width | 5 / 10 / 20 / 40 MHz |
| Frequency Range | 2570 â 2620 MHz (MSP) |
| Protocols Used | IPv4, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping |
| Interfaces | 100 BaseT, Cambium PoE (V+ = pins 7 & 8, Return = pins 4 & 5) |
| Temperature Range | -30°C to +60°C (-22°F to +140°F) |
| PoE In | 10 - 30V |
| Max Power consumption | 7 W Maximum, 5 W Typical |
| Polarisation | 2x2 MIMO/OFDM |
| Wind Loading | 145 km/hour (90 mi/hour) when mounted on ePMP Sector Antennas |
| Dimensions | 29.1 x 14.5 x 8.3 cm |
| IP Rating | IP55 |
| Brand | Cambium Networks |
|---|---|
| Product Type | Networking & Wireless |
| Weight | 0.5 kg |
