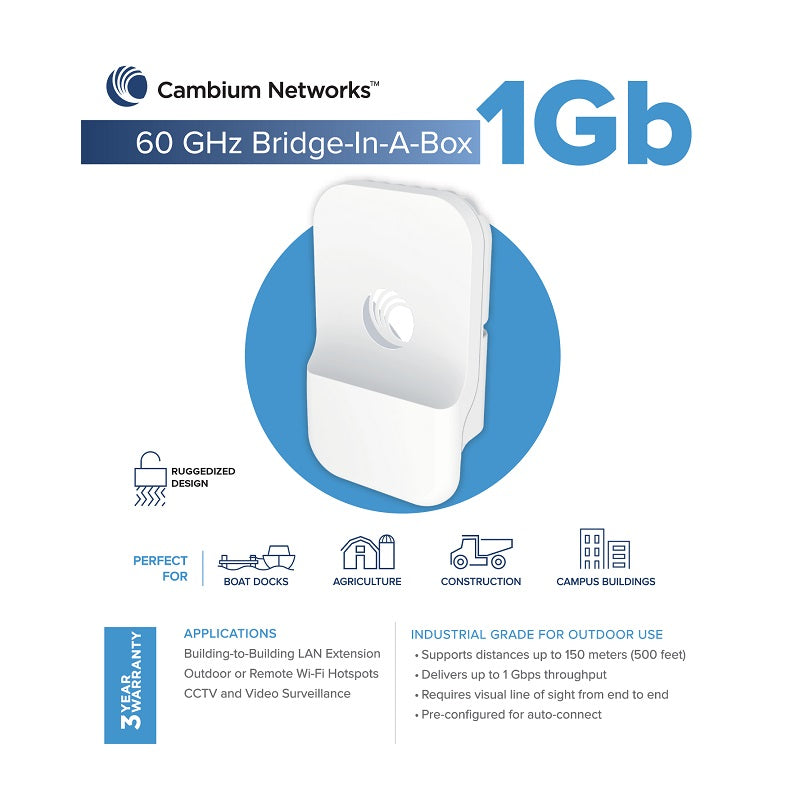

Cambium Networks C600510C008 - Cambium cnWave 60 GHz Bridge in a Box 1Gbps Full Duplex Wireless Backhaul

C600510C008

Cambium Networks C600510C008 - Cambium cnWave 60 GHz Bridge in a Box 1Gbps Full Duplex Wireless Backhaul

Cambium cnWave 60 GHz Bridge in a Box 1Gbps Full Duplex Wireless Backhaul.

Each Bridge-in-a-Box comes with two wireless radio modules and power over Ethernet supplies that can be used to extend your network from wherever you have an Ethernet port to wherever you need. The Gigabit modules use the unlicensed 60 GHz frequency band and are extremely easy to deploy as they come pre-configured and pre-paired to connect.

For those places you couldn’t connect before, Bridge-in-a-Box will get you there today.

How are people using Bridge-in-a-Box?

Building-to-building connectivity
Extending Internet Connectivity
Connecting Remote or outdoor Wi-Fi hotspots
Remote camera or CCTV video feeds

Details
Manufacturer's Code	C600510C008A
Wireless Standard	802.11ay standard
Radio Power	Up to 38 dBm EIRP
Antenna	22.5 dBi
Environmental	IP66/67
Operating Temperature	-40ºC to 60ºC (-40ºF to 140ºF)
Mounting	25 mm to 70 mm (1 in to 2.75 in)
Security	128-bit AES encryption
Frequency Range	57–66 GHz
Channel Bandwidth Options	2.16 GHz, 4.32 GHz
Ethernet Interface	1 x 100/1000 BaseT with PoE In
Protocols	IPv4, IPv6, Layer2 Bridge, Layer3 IPv6 Routing, Open/R mesh
Network Management	cnMaestro, HTTP, HTTPS, SNMP v2c & v3
VLAN	802.1ad (QinQ), 802.1Q with 802.1p priority
ARQ	Yes
Modulation Levels	MCS-0 (BPSK) to MCS-10 (16-QAM-3/4)
Surge Suppression	2KV
Weight	0.46 kg (1.01 lbs)
Wind Survival	200 km/h (124 mph)
Dimensions H x W x D	169 x 100 x 54 mm (6.65 x 3.94 x 2.13 in)
Power Consumption	10W
