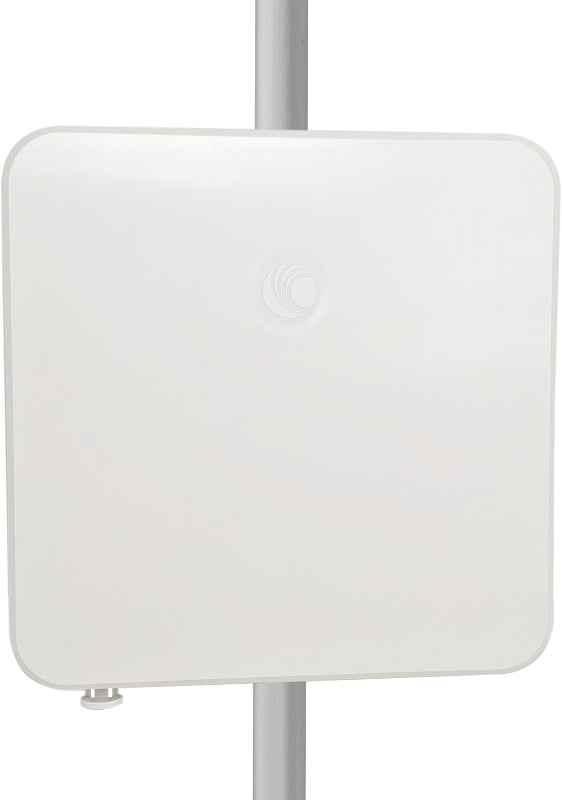

Cambium Networks CV-C19RPANA-RW - Cambium cnVision Client MAXr 19 dBi IP67 Subscriber Module
Cambium Networks

Cambium Networks CV-C19RPANA-RW - Cambium cnVision Client MAXr 19 dBi IP67 Subscriber Module

SKU: CV-C19RPANA-RW ● In Stock
$365.00
Free shipping over $299 Genuine product 7-day returns

CV-C19RPANA-RW

Cambium Networks CV-C19RPANA-RW - Cambium cnVision Client MAXr 19 dBi IP67 Subscriber Module

Description

The Cambium cnVision Client MAXr is 19 dBi, IP67 Subscriber Module.

cnVision™ is Cambium Networks’ new line of wireless backhaul products that are custom designed to serve the video surveillance market. This line of products was created with the intention to be cost-effective and predictable in performance with the right blend of features that integrate smoothly into the CCTV space.

Reliable Transmission
Losing a critical frame in your video transmission is unacceptable. With a deterministic protocol, high resiliency to interference and a built in packet re-transmission mechanism, cnVision ensures those critical video frames arrive when they need to. Adapting to changing environments, cnVision can shift gears just like the transmission system in a car to ensure reliable delivery of critical video.

Security
User security via different login privileges, radius authentication, HTTPS Browser access, SSH and AES 128-bit data encryption with proprietary protocol makes cnVision the last thing to worry about in your network.

Ease of Planning, Discovery and Managing
With a comprehensive set of features under the cnVision companion, you can confidently plan your camera deployment and know exactly which cnVision products to choose and what capacity to anticipate. With the discovery component you can pre-stage the equipment, and perform system maintenance and software upgrades.

ONVIF and Stream Detection Support
With a built in ONVIF client, cnVision client products can detect and display camera hardware models and system information. Stream detection capability allows viewing of the camera feed from within cnVision clients.
Features
  • Automatic Packet Retry: Lost frames due to interference are retransmitted to minimize frame loss
  • cnVision Companion: Standalone tool that allows for device discovery, network planning, and software update support
  • VMS Integration: Seamless integration with common Video Management Systems (VMS), such as Milestone™, Genetec™ and others
  • ONVIF: Camera detection via ONVIF discovery
  • Stream Display: Camera feed display in Hub/Client UI

Specifications

Details
Manufacturer's Code CV-C19RPANA-RW
Frequency Range (Country specific) Wide Band operation 4910 -5970 MHz
Channel Width 5/10 (MAXr) 20/40/80
Ethernet Interface 10/100/1000 BaseT
Max. Power Consumption 12 Watts
Adaptive Modulation Adapt link quality based on dynamic conditions
Consistent and Low Latency 5 ~7ms roundtrip latency and consistency resulting in less jitter
Typical Configuration Speeds of 600Mbps can support upwards of 40 4K cameras in point to point or hub and spoke configuration
Encryption 128bit AES, 256bit AES (Optional)
Antenna Gain 19 dBi
Antenna Beamwidth Azimuth: 3dB - 14.5 degrees, Elevation: 3dB - 12.5 degrees
POE Input voltage 30V DC
Dimensions 27.8 x 27.8 x 4.5 cm, 1.45kg
Environmental IP67
Temperature -30°C to +60°C
Wind Survival 180 kph
