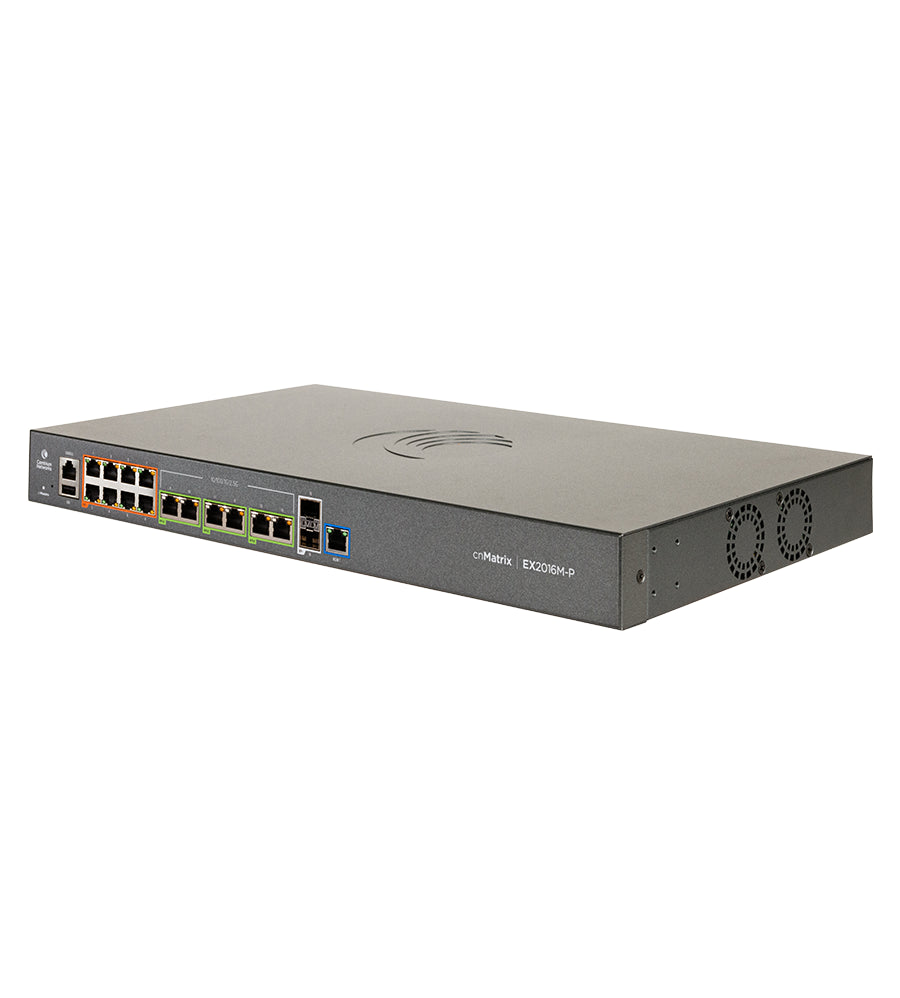

Cambium Networks EX2016M-P - Cambium cnMatrix EX2016M-P, Intelligent Ethernet PoE Switch, with 8x1G, 6x2.5G Ethernet and 2xSFP+ Fiber Ports
Cambium Networks

Cambium Networks EX2016M-P - Cambium cnMatrix EX2016M-P, Intelligent Ethernet PoE Switch, with 8x1G, 6x2.5G Ethernet and 2xSFP+ Fiber Ports

SKU: EX2016M-P ● In Stock
$2,168.00
Free shipping over $299 Genuine product 7-day returns

EX2016M-P

Cambium Networks EX2016M-P - Cambium cnMatrix EX2016M-P, Intelligent Ethernet PoE Switch, with 8x1G, 6x2.5G Ethernet and 2xSFP+ Fiber Ports

Description

Cambium cnMatrix EX2016M-P 16-Port Enterprise Cloud Managed PoE Switch with SFP+.

Cambium Networks’ next generation switching platform offers a cloud managed, high performance, feature rich enterprise grade ethernet switching solution.

The cnMatrix series of fully managed switches delivers full Layer 2 and Layer 3 capabilities with enhanced access security. Depending on the model, the cnMatrix EX2000 series offers flexibility with SFP+ (10 Gbps) or SFP (1 Gbps) uplink ports. These switches come with a 5-year limited lifetime warranty.
Features
  • 6 x 2.5 Gigabit Compatible Ethernet Ports
  • Easy and simple, free cloud (or on premise) management with cnMaestro™ or XMS*
  • Zero-touch deployment of switches makes installation easy
  • Policy Based Automation eliminates manual and time consuming configuration
  • Enhanced Security with automated device profiling and segmentation
  • Policy Based Automation eliminates manual configuration during adds, moves and changes of network devices
  • Unified Wired-Wireless access solution
  • Non-blocking, line-rate architecture with fully featured L2/L3 switching
  • Limited lifetime warranty (5 Years)

Specifications

Details
Product code MXEX2016MXPA00
Non-Blocking Throughput 86Gbps
Forwarding Rate in Mpps (64 Byte Packets) 120
Packet Buffer 1.5 MB
10/100/1000 Ports 8
2.5 G Ports 6
Uplink Ports 2 SFP+
PoE+ Enabled Ports 802.3af/at 8
PoE+ Enabled Ports 802.3af/at/bt 6
Serial Console Yes
USB Yes
Out-of-Band Management Port Yes
Rack Mount Kit Included
Internal Fans 2
Reset Button Yes
MAC Address Table Size 16K
VLANs (simultaneous) 4K
QinQ Yes
LACP/Trunking 8 LAGs/8 links per LAG
Policy Based Automation Yes
Power Supply 100–240 VAC
Max Switch Power (with Traffic) 26.76W
MTBF (Hours) 385,242
Flash Storage 128 MB
DRAM 256 MB
Weight 3.6 kg (7.93 lb)
Dimensions 44 x 4.4 x 25 cm (17.3 x 1.75 x 9.85 in)
PoE+ Power Budget 240W
PoE + Voltage 54V
PoE Max Power per Port 30W, 60W
Temperature Ranges 0° to 50°C (32° to 122°F)
Operating Humidity 55° at 95% RH
Storage Temperature -40° to 70°C (-40° to 158°F)
