CWDM-CHASSIS-2 - MikroTik 1U Chassis bracket for CWDM 8 Port MUX/DEMUX

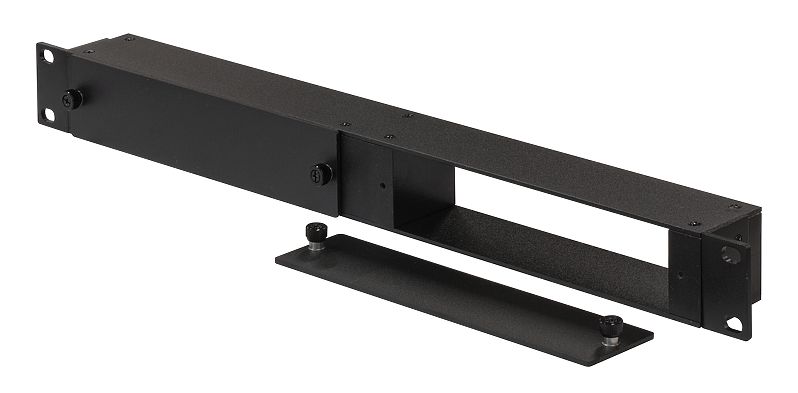

The MikroTik CWDM-CHASSIS-2 is a standard 1U Chassis bracket that can hold two CWDM-MUX8A units.

MikroTik CWDM-MUX8A is a passive MUX/DEMUX unit, which allows you to combine up to eight fiber links into one, to simplify and reduce the cost of long distance fiber installations. At the other location, the combined line is split back up again, so that instead of eight long fiber lines, you would only need one. The Coarse Wavelength-Division Multiplexing (CWDM) technology offers a solution which will increase capacity of existing fiber infrastructure by enabling multiple channels/wavelengths over the same fiber cabling and will reduce costs for a new fiber optic deployment.

You can use a single optical fiber cable to create up to eight independent 1.25Gbps SFP (up to 40km) or 10Gbps SFP+ (up to 10km) links, offering more affordable alternative to installing more fiber or leasing additional fibers. You can even use 1.25Gbps modules and 10Gbps modules at the same time.

CWDM in your network will allow you to:
• increase efficiency of existing fiber network
• provide scalable and easy-to-deploy fiber channel services
• reduce electricity consumption
• reduce equipment maintenance and installation costs

Details
Product code	CWDM-CHASSIS-2 (see options below)
CWDM-MUX8A	CWDM MUX/DEMUX 8-port unit
S-C47DLC40D	SFP CWDM module 1.25G SM 40km 1470nm Dual LC-connector DDM
S-C49DLC40D	SFP CWDM module 1.25G SM 40km 1490nm Dual LC-connector DDM
S-C51DLC40D	SFP CWDM module 1.25G SM 40km 1510nm Dual LC-connector DDM
S-C53DLC40D	SFP CWDM module 1.25G SM 40km 1530nm Dual LC-connector DDM
S-C55DLC40D	SFP CWDM module 1.25G SM 40km 1550nm Dual LC-connector DDM
S-C57DLC40D	SFP CWDM module 1.25G SM 40km 1570nm Dual LC-connector DDM
S-C59DLC40D	SFP CWDM module 1.25G SM 40km 1590nm Dual LC-connector DDM
S-C61DLC40D	SFP CWDM module 1.25G SM 40km 1610nm Dual LC-connector DDM
S+C47DLC10D	SFP+ CWDM module 10G SM 10km 1470nm Dual LC-connector DDM
S+C49DLC10D	SFP+ CWDM module 10G SM 10km 1490nm Dual LC-connector DDM
S+C51DLC10D	SFP+ CWDM module 10G SM 10km 1510nm Dual LC-connector DDM
S+C53DLC10D	SFP+ CWDM module 10G SM 10km 1530nm Dual LC-connector DDM
S+C55DLC10D	SFP+ CWDM module 10G SM 10km 1550nm Dual LC-connector DDM
S+C57DLC10D	SFP+ CWDM module 10G SM 10km 1570nm Dual LC-connector DDM
S+C59DLC10D	SFP+ CWDM module 10G SM 10km 1590nm Dual LC-connector DDM
S+C61DLC10D	SFP+ CWDM module 10G SM 10km 1610nm Dual LC-connector DDM
