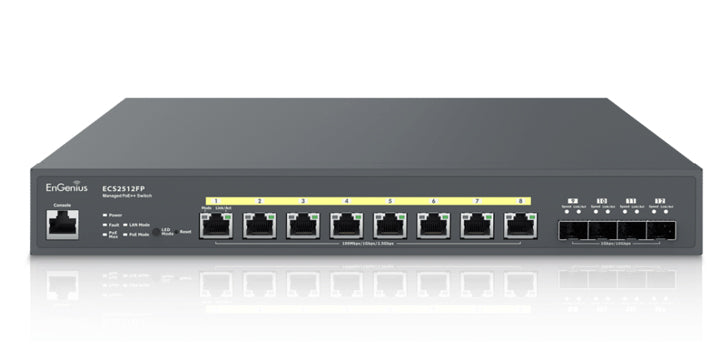

ECS2512FP - EnGenius ECS2512FP Cloud Managed 802.3bt/at/af 240W 8 Port PoE 2.5Gbps Multi-Gigabit Network Switch
EnGenius

ECS2512FP - EnGenius ECS2512FP Cloud Managed 802.3bt/at/af 240W 8 Port PoE 2.5Gbps Multi-Gigabit Network Switch

SKU: ECS2512FP ● In Stock
$398.00
Free shipping over $299 Genuine product 7-day returns

ECS2512FP

ECS2512FP - EnGenius ECS2512FP Cloud Managed 802.3bt/at/af 240W 8 Port PoE 2.5Gbps Multi-Gigabit Network Switch

Description

EnGenius Cloud ECS2512FP Multi-Gigabit Switch has 8 Ethernet Ports, 2.5G per port, High Powered 802.3af/at/bt PoE++ Layer 2+ with 240W Budget, and 4 10G SFP+ uplink ports. Multi-Gigabit switches optimize network efficiency ensuring peak performance for large businesses. Select Cloud or on-premises management options based on network architecture, administrative permissions, technical aptitude, or budget.

The ECS series switches can be managed by EnGenius Cloud and on-premises ezMaster or can be worked as standalone switches, providing enterprise-class features for simplifying network configuration and monitoring at prices affordable to small and mid-sized businesses. With advanced management, EnGenius Switches enhance network performance to allow companies to focus on growing their business.

EnGenius Cloud is built on top of the most advanced cloud computing technology. Scalable and AI-ready, the robust and dynamic cloud computing infrastructure helps you work smart on your network with important analytics and visualization tools.

Deploy and Monitor Your Networks with EnGenius Cloud App: Easy device deployment, visualized monitoring, and alerts for abnormal network activity available within an intuitive mobile app.

Configure stand alone with EnSky or Manage for Free with EnGenius Cloud Here.
Features
  • Perfect for powering high capacity WiFi 6 access points
  • Full-Featured Layer 2+ Switching
  • 8 x 10/100/1000/2500 Base-T GbE Ports to serve high-bandwidth devices like Wifi6 access points
  • Standard 3 year warranty
  • 802.3bt PoE++ capable on all ports with a 240W PoE budget
  • 120 Gbps Switching capacity for improved performance
  • 4 x Dual-Speed 10G SFP+ (fiber) uplink ports

Specifications

Details
Manufacturer's Code ECS2512FP
Network Ports (8) 100/1000/2500 Mbps Ports + 4x SFP+ Ports
Port Standards 802.3 10Base-T Ethernet, 802.3u 100Base-TX Ethernet, 802.3ab 1000Base-T Ethernet, 802.3x Full-Duplex Flow Control
Switching Capacity 120Gbps
SDRAM 512MB
Flash Memory 128MB
PoE Capable Ports 1-8 - 802.3 af/at/bt
Total PoE Budget 240W
Power Source 100 ~ 240VAC, 50/60Hz
LED Indicators Power LED, Fault LED, PoE Max LED, LAN Mode LED, PoE Mode LED
Ports LED Link/Activity/Speed (per Ethernet port), Link/Activity/Speed (per SFP slot)
Network Layer Support Layer 2 & 3 (See Datasheet)
Dimensions Weight: 3.1 kg, Width: 396 mm, Length: 310 mm, Height: 102 mm
