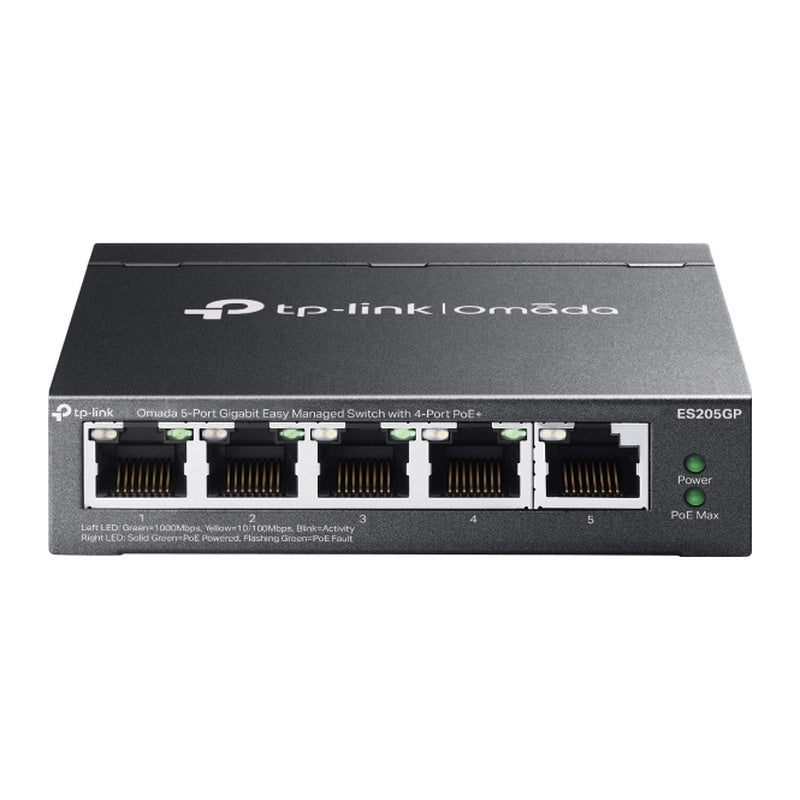

ES205GP - Omada ES205GP SDN 5-Port Gigabit PoE Switch with 4-Port PoE+
Omada

ES205GP - Omada ES205GP SDN 5-Port Gigabit PoE Switch with 4-Port PoE+

SKU: ES205GP ● In Stock
$97.99
Free shipping over $299 Genuine product 7-day returns

ES205GP

ES205GP - Omada ES205GP SDN 5-Port Gigabit PoE Switch with 4-Port PoE+

Description

Omada ES205GP SDN 5-Port Gigabit PoE Switch with 4-Port PoE+.

Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface.
Features
  • 5× 10/100/1000Mbps RJ45 ports (4× 802.3at/af-compliant PoE+)
  • 65W Power Budget, with up to 30W for each PoE port
  • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
  • Centralized Cloud Management via the web or the Omada app
  • Up to 250m PoE (10mbps), QoS, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
  • Automatic Loop Prevention, VLAN, and IGMP Snooping
  • Fanless design for silent operation
  • Durable metal casing and desktop/wall mounting design

Specifications

Details
Manufacturer's Code ES205GP
Interface 5 10/100/1000Mbps RJ45 Ports
Flash 64 Mbit
Port Standard IEEE 802.3i:10BASE-T Ethernet; IEEE 802.3u:100BASE-X Fast Ethernet; IEEE 802.3ab:1000BASE-T Gigabit Ethernet; IEEE 802.3x: Flow Control; IEEE 802.1p: Traffic Class Expediting and Dynamic Multicast Filtering; IEEE 802.1q: Virtual Bridged Local Area Networks
PoE Standard 802.3af/at
PoE Ports 4, up to 30 W / per port
PoE Power Budget 65 W
Switching Capacity 10 Gbps
Packet Forwarding Rate 7.4 Mpps
MAC Address Table 8K
Packet Buffer 4 Mbit
Transmission Method Store and Forward
Jumbo Frame 15 KB
Power Supply 53.5 VDC / 1.31A
Surge Protection ±6 kV in common mode for Ethernet Ports
ESD Protection Air: ±8 kV, Contact: ±4 kV
MTBF 559597h @ 25°C
Dimensions (W x D x H) 3.9 × 3.9 × 1.0 in (99.8 × 98 × 25 mm)
Fan Quantity Fanless
Installation Desktop/Wall-Mounting
Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature -40 °C to 70 °C (-40 °F to 158 °F)
Operation Humidity 10% to 90% RH, non-condensing
Storage Humidity 5% to 90% RH, non-condensing
Certification CE, FCC, RoHS
SDN Support Support Hardware Controller, Software Controller, Cloud-Based Controller; Automatic Device Discovery; Batch Configuration; Batch Firmware Upgrading; Unified Configuration
Link Aggregation Static Link Aggregation; Up to 2 aggregation groups and up to 4 ports per group
Loopback Detection Loopback Detection
Flow Control 802.3x Flow Control
Mirroring Port Mirroring; One-to-One; Many-to-One; Ingress/Egress/Both
Port Statistics Port Mirror Status; Traffic Statistics
LLDP 802.1ab LLDP
IGMP Snooping IGMP v1/v2/v3 Snooping; Fast Leave
VLAN MTU VLAN; Port-Based VLAN; 802.1Q Tag VLAN; Max 32 VLAN Groups; 4K VID
QoS 802.1p DSCP Priority; 8 Priority Queues; Priority Schedule Mode: WRR (Weighted Round Robin); Queue Weight Config; Bandwidth Control: Port-Based Rating Limit; Storm Control: Multiple Control Modes (kbps/pps); Broadcast/Multicast/Unknown-Unicast Control
Management Web-based GUI; DHCP Client; Cable Diagnostics
