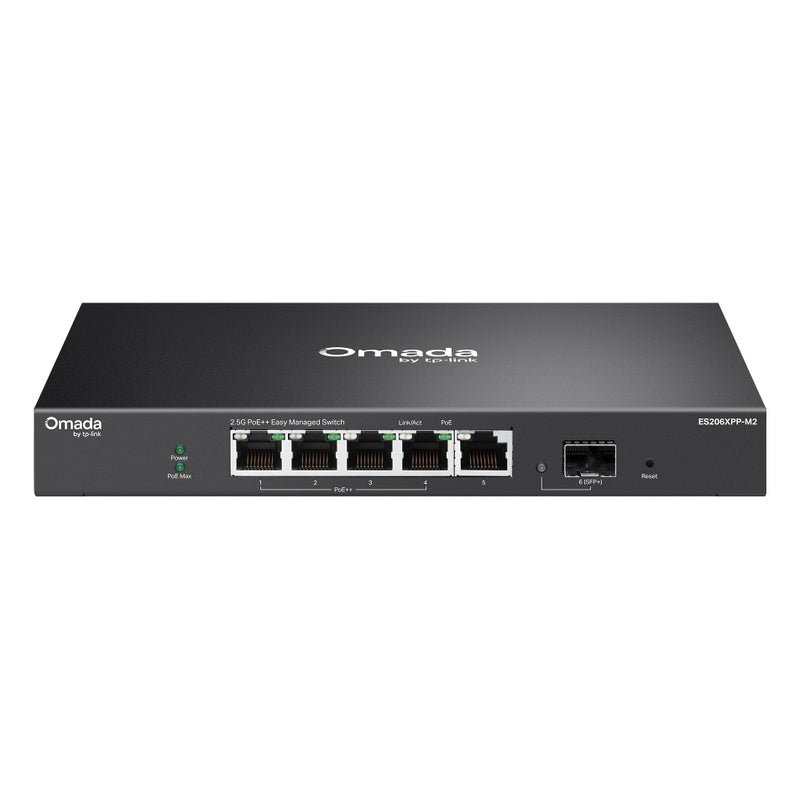

ES206XPP-M2 - Omada ES206XPP-M2 5-Port 2.5GBASE-T and 1-Port 10GE SFP+ Easy Managed Switch with 4-Port PoE++
Omada

ES206XPP-M2 - Omada ES206XPP-M2 5-Port 2.5GBASE-T and 1-Port 10GE SFP+ Easy Managed Switch with 4-Port PoE++

SKU: ES206XPP-M2 ● In Stock
$299.00
Free shipping over $299 Genuine product 7-day returns

ES206XPP-M2

ES206XPP-M2 - Omada ES206XPP-M2 5-Port 2.5GBASE-T and 1-Port 10GE SFP+ Easy Managed Switch with 4-Port PoE++

Description

Omada ES206XPP-M2 5-Port 2.5GBASE-T and 1-Port 10GE SFP+ Easy Managed Switch with 4-Port PoE++.

Power over Ethernet, Flexible Network Deployment

Transmit both data and power via a single cable to other PoE++ devices, without the hassle and cost of installing power cabling. Automatically detect and supply the required power to PoE-enabled devices.

Unlock the Highest Performance of 2.5G Multi-Gig Bandwidth and Devices

Works with Omada Central Essentials for Free and Easy Cloud Management

Omada Central Essentials provides free and easy-to-use centralized cloud management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for small businesses and home office.
Features
  • 5× 2.5 Gbps RJ45 ports (4× 802.3af/at/bt-compliant PoE++)
  • 1× 10 Gbps SFP+ slot
  • 120W PoE budget, with up to 90W for each PoE port
  • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
  • Centralized Cloud Management via the web or the Omada app
  • Automatic Loop Prevention, VLAN, Port Isolation, QoS, and IGMP Snooping
  • Fanless design for silent operation
  • Durable metal casing and desktop/wall mounting design

Specifications

Details
Manufacturer's Code ES206XPP-M2
Standards and Protocols IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3x, IEEE 802.1q, TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP, LLDP, 802.11b/g/n
Interface 3 Gigabit WAN/LAN Ports
LTE 1 Nano SIM slot (CAT4 4G)
LTE Speed Downlink: 150 Mbps, Uplink: 50 Mbps
Wi‑Fi Speed 2.4 GHz: 300 Mbps
Antennas 2 internal Wi‑Fi antennas; 2 external LTE antennas
Network Media 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m); EIA/TIA-568 100Ω STP (Max 100 m); 100BASE-TX: UTP category 5, 5e cable (Max 100 m); EIA/TIA-568 100Ω STP (Max 100 m); 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
PoE Standard Passive/802.3af/at/bt PoE in for port 1; Passive/802.3af/at PoE out for port 2-3
PoE Power Budget 52 W when powered by 802.3bt Type 4 (90 W); 34 W when powered by 802.3bt Type 3 (60 W); 13 W when powered by 802.3at (30 W); 9 W when powered by Passive
Network Type 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700); 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz); 3G HSPA+/HSDPA/HSUPA/WCDMA: B1/B5/B8 (2100/850/900 MHz)
Button Reset button
Power Supply Passive/802.3af/at/bt PoE or 12V/1A Adapter
Flash 128 MB NAND
DRAM 256MB DDR3
LED 4G Signal, WLAN, WAN/LAN, SYS
Max Power Consumption 10 W without PoE; 62 W with PoE
Surge Protection 4 kV surge protection
Mounting Wall-mounting; Pole-mounting
Dimensions 100.4 × 38.7 × 174.8 mm
Net Weight 0.420 kg
MTBF 889200 h@25°C; 510826 h@40°C
SDN Support Hardware Controller; Automatic Device Discovery; Intelligent Network Monitoring; Abnormal Event Warnings; Unified Configuration; Reboot Schedule; Captive Portal Configuration; ZTP (Zero-Touch Provisioning); Software Controller; Omada App
Certifications CE, RoHS
Operating Temperature -30°C to 60°C
Storage Temperature -40°C to 70°C
Operating Humidity 5% to 95% non-condensing
Storage Humidity 5% to 90% non-condensing
