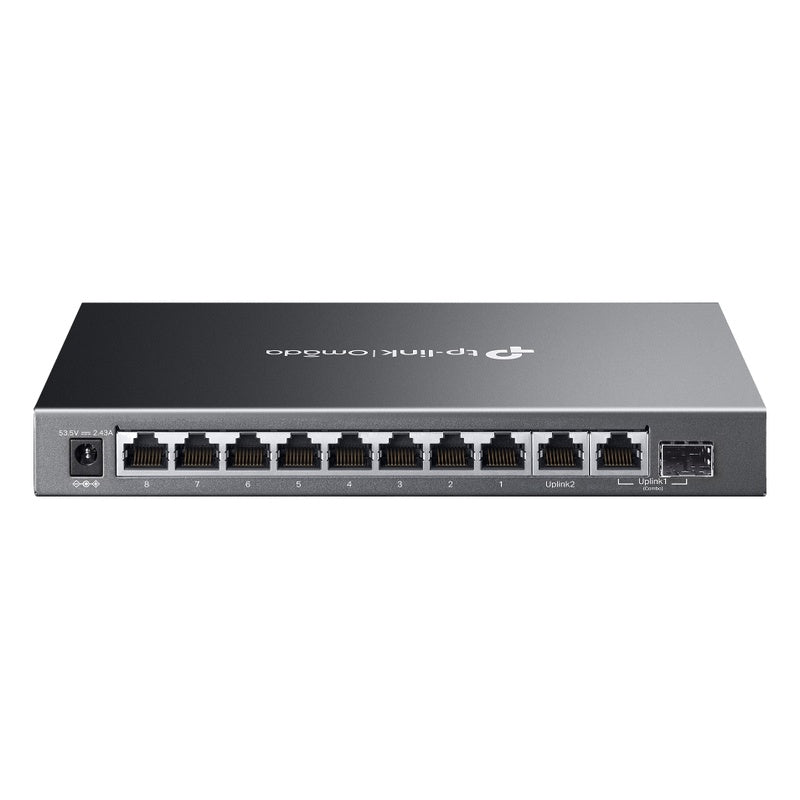

ES210GMP - Omada ES210GMP 10-Port Gigabit Easy Managed Switch with 8-Port PoE+
Omada

ES210GMP - Omada ES210GMP 10-Port Gigabit Easy Managed Switch with 8-Port PoE+

SKU: ES210GMP ● In Stock
$229.00
Free shipping over $299 Genuine product 7-day returns

ES210GMP

ES210GMP - Omada ES210GMP 10-Port Gigabit Easy Managed Switch with 8-Port PoE+

Description

The Omada ES210GMP is a 10-Port Gigabit Easy Managed Switch with 8-Port PoE+.

Omada Cloud Essentials is a free, easy-to-use cloud-based management option for the Omada networking system, covering access points, switches, and gateways. It enables simple, centralized network management and monitoring with essential features, making it ideal for surveillance networks and small businesses that don't require the complexity of larger operations.
Features
  • 8× Gigabit 802.3af/at-compliant PoE+ RJ45 ports
  • 1× Gigabit RJ45 port, 1× Gigabit SFP/RJ45 Combo port
  • 123W Power Budget, with up to 30W for each PoE port
  • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
  • Centralized Cloud Management via the web or the Omada app
  • Up to 250m PoE (10mbps), QoS, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
  • Automatic Loop Prevention, VLAN, and IGMP Snooping
  • Fanless design for silent operation
  • Durable metal casing and desktop/wall mounting design

Specifications

Details
Manufacturer's Code ES210GMP
Interface 8× 10/100/1000 Mbps PoE+ RJ45 Ports; 1× 10/100/1000 Mbps RJ45 Port; 1× Gigabit SFP/RJ45 Combo Port
Flash 64 Mbit
Port Standard IEEE 802.3: Ethernet Media Access Control (MAC) Protocol; IEEE 802.3i:10BASE-T Ethernet; IEEE 802.3u:100BASE-X Fast Ethernet; IEEE 802.3ab:1000BASE-T Gigabit Ethernet; IEEE 802.3x: Flow Control; IEEE 802.1p: Traffic Class Expediting and Dynamic Multicast Filtering; IEEE 802.1q: Virtual Bridged Local Area Networks; IEEE 802.1ab: Station and Media Access Control Connectivity Discovery (LLDP)
PoE Standard 802.3af/at
PoE Ports 8, up to 30 W per port
PoE Power Budget 123 W
Fast PoE YES
Perpetual PoE YES
Switching Capacity 20 Gbps
Packet Forwarding Rate 14.88 Mpps
MAC Address Table 8K
Packet Buffer 4 Mbit
Transmission Method Store and Forward
Jumbo Frame 15 KB
Power Supply AC/DC Adapter (Input: 100-240V AC; Output: 53.5VDC / 2.43A)
Standby Power Consumption 3.41 W (110V/60 Hz)
Max Power Consumption 141.46 W (220V/50Hz) (with 123 W PD connected)
Max Heat Dissipation 480.96 BTU/hr (220V/50Hz) (with 123 W PD connected)
MTBF 411681 h @ 25°C
Dimensions 209 × 126 × 26 mm
Net Weight 0.356 kg
Fan Quantity Fanless
Installation Desktop / Wall Mounting
Operating Temperature 0 °C to 40 °C
Storage Temperature -40 °C to 70 °C
Operation Humidity 10% to 90% RH, non-condensing
Storage Humidity 5% to 90% RH, non-condensing
Surge Protection ±6 kV in common mode for Ethernet Ports; ±2 kV in differential mode, ±2 kV in common mode for AC power input port
ESD Protection Air: ±8 kV, Contact: ±4 kV
Certification CE, FCC, RoHS
SDN Support Support Hardware Controller; Software Controller; Cloud-Based Controller; Automatic Device Discovery; Batch Configuration; Batch Firmware Upgrading; Unified Configuration
