Go Wireless NZ ANT-281 - 824 - 960MHz 6dBi Fiberglass Omni Antenna with N-Female - Pole Mount Included
Go Wireless NZ

Go Wireless NZ ANT-281 - 824 - 960MHz 6dBi Fiberglass Omni Antenna with N-Female - Pole Mount Included

SKU: ANT-281 ● In Stock
$91.07
Free shipping over $299 Genuine product 7-day returns

ANT-281

Go Wireless NZ ANT-281 - 824 - 960MHz 6dBi Fiberglass Omni Antenna with N-Female - Pole Mount Included

Description

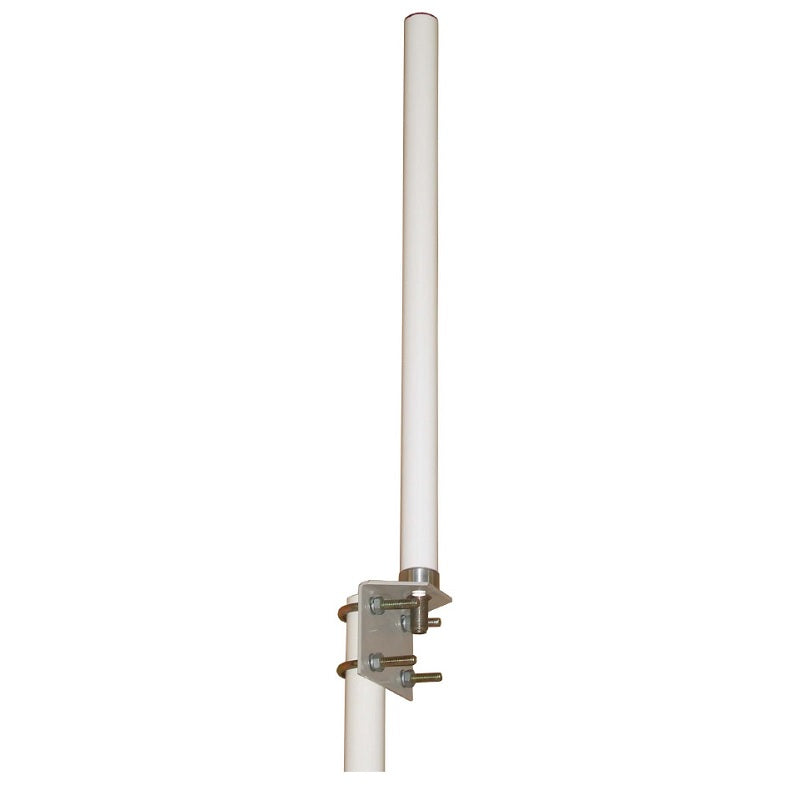

824MHz to 960MHz 6dBi Fiberglass Omni Antenna with N-Female for ISM, GSM, LoRaWAN IoT and Wireless LAN Systems. It is ideally suited for multipoint, Non Line of Sight (NLOS) IoT and mobile applications where high gain and wide coverage is desired. This antenna features an integral N-Female bulkhead type connector that can mount through the wall of an equipment enclosure. Also included with the Omni Antenna is a mast mounting kit, consisting of a heavy-duty steel bracket and a pair of U-bolts, this kit allows installation on masts up to 50 mm in diameter.
Features
  • Sealed Fiberglass Radome, Strong Protection against the elements
  • All Weather Operation
  • Stable Steel Mounting Kit
  • Suitable for LoRaWAN and Sigfox 865MHz and 923MHz IoT applications

Specifications

Details
Manufacturer's Product Code ANT-281
Freq Range 824 to 960MHz
Gain 6dBi
Horz Beamwidth 360 deg
Vert Beamwidth 30 deg
VSWR ≤1.5
Impedance 50 Ohm
Polarization Vertical
Max.Power 100 Watts
Connector N Female
Dimensions 3.6cm x 57.5cm
Weight 0.67 Kg
Ratedwind Velocity m/s 60
Radome Fiberglass
Pole Mount Diameter 50mm
