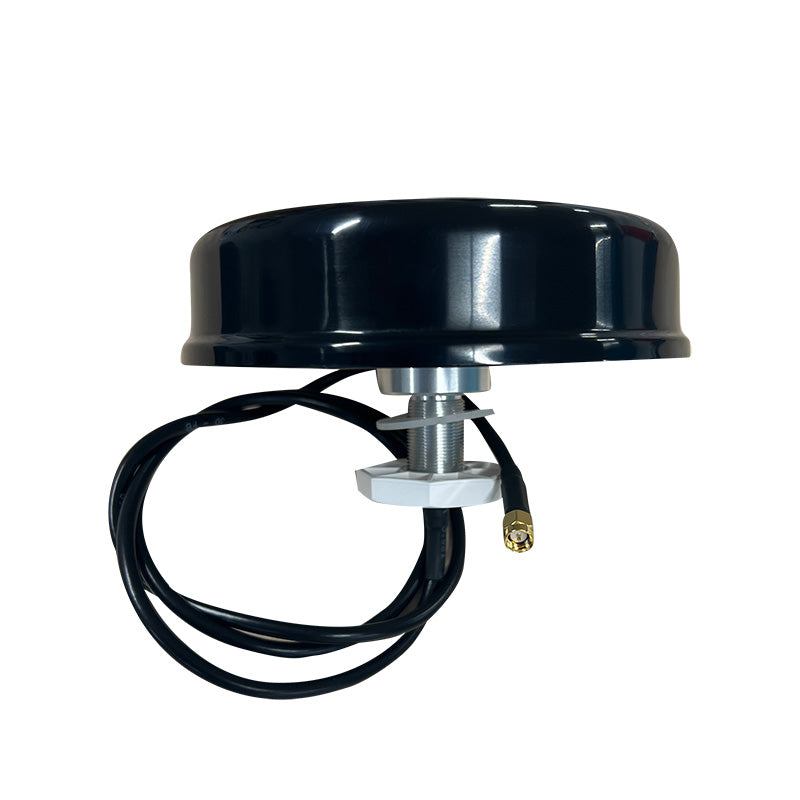

Go Wireless NZ ANT-292 - 3dBi 698 - 2700MHz Low Profile Outdoor Omni Antenna with 100cm Cable and SMA Male connector - Black, UV Stable IP68
Go Wireless NZ

Go Wireless NZ ANT-292 - 3dBi 698 - 2700MHz Low Profile Outdoor Omni Antenna with 100cm Cable and SMA Male connector - Black, UV Stable IP68

SKU: ANT-292 ● In Stock
$111.00
Free shipping over $299 Genuine product 7-day returns

ANT-292

Go Wireless NZ ANT-292 - 3dBi 698 - 2700MHz Low Profile Outdoor Omni Antenna with 100cm Cable and SMA Male connector - Black, UV Stable IP68

Description

3dBi 698 - 2700MHz Low Profile Outdoor Omni Antenna with 100cm Cable and SMA Male connector - Black, UV Stable IP65

Features
  • Perfect for Cellular 4G/LTE IoT applications

Specifications

Details
Manufacturer's Product Code ANT-292
Frequency Range 698 - 960/1710 - 2700MHz
Bandwidth 262/990MHz
Polarization Vertical
Gain 3dBi @ 698 - 960MHz; 5dBi @ 1710 - 2700MHz
Horizontal Beam Width 360deg Omni
Vertical Beam Width 68 to 35 deg
Impedance 50 Ohm
VSWR ≤2.5
Maximum Input Power 50W
Connector Type SMA Male
Cable Length 1000mm
Antenna Size 145 x 40mm
Antenna Weight 0.3 Kg
Radome material ABS
Radome colour Black
Operating Temperature -40 to＋85 degC
Relative Humidity 5 - 95 %
Rated Wind Velocity(m/s) 60
Salt Spray Resistance 96Hour Neutral (GB/T 2423.17-2008）
waterproofing grade IP65
Mounting 20mm through hole Nut tightening
