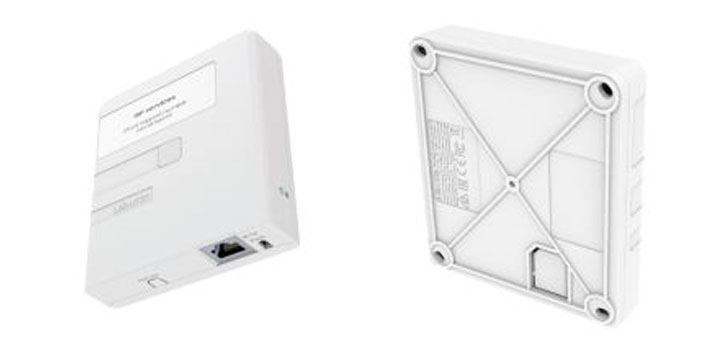

GPEN11 - MikroTik GPEN11 Gigabit Fixed Passive PoE injector

GPEN11

GPEN11 - MikroTik GPEN11 Gigabit Fixed Passive PoE injector

The MikroTik GPEN11 is a passive power injector that can be mounted on a wall and will power your uplink devices with PoE power. The GPEN11 is part of the GPEN (Gigabit Passive Ethernet Network) concept, which aims to replace GPON installations with lower cost and easier to deploy ethernet alternative.

GPEN11 can be mounted inside customer premises, next to the WiFi router which provides the connectivity to the users. The GPEN11 itself will then power the ISP router, whether an outdoor wireless unit mounted on a roof, or the network switch. The GPEN unit can be securely attached to a wall, or communications cabinet. The ethernet cable can be routed either directly through its bottom cable opening, or into the wall, as preferred.

Details
Product code	GPEN11
10/100/1000 Ethernet ports	2
Number of DC inputs	1
PoE out	Yes, Passive PoE same as Input
Supported input voltage	12 - 57 V
Max out per port output (input 18-30 V)	2 A
Max total out (A)	2 A
Dimensions	92 x 104 x 24 mm
Operating temperature	-40 to 70°C
