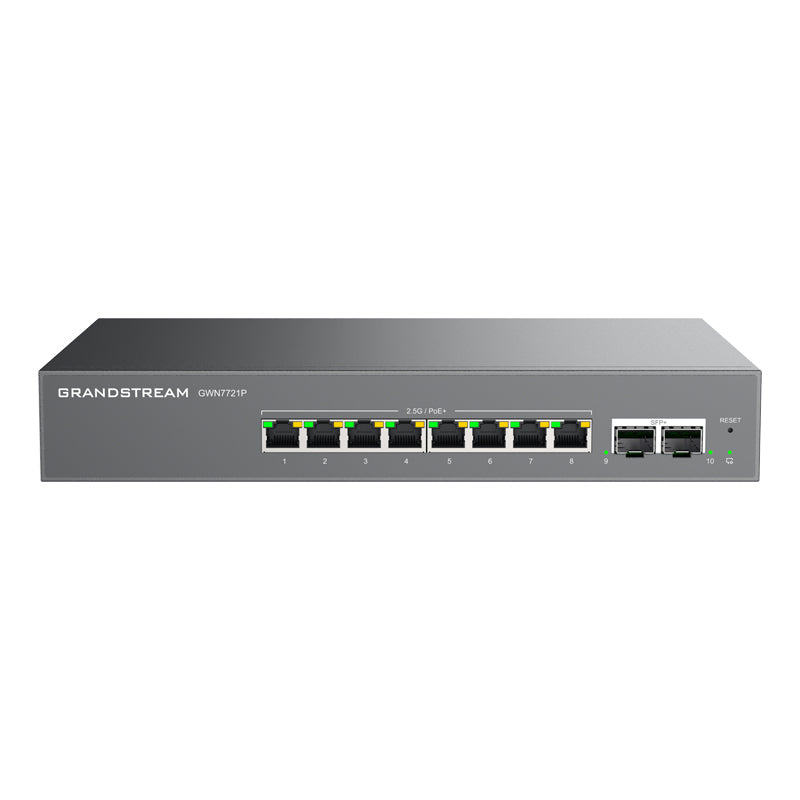

Grandstream Networks GWN7721P - Grandstream GWN7721P Layer 2-Lite Managed Multi-Gig Switch, 8 x 2.5 GigE, 2 x 10G SFP+ (8 x PoE/PoE+)
Grandstream Networks

Grandstream Networks GWN7721P - Grandstream GWN7721P Layer 2-Lite Managed Multi-Gig Switch, 8 x 2.5 GigE, 2 x 10G SFP+ (8 x PoE/PoE+)

SKU: GWN7721P ● In Stock
$212.07
Free shipping over $299 Genuine product 7-day returns

GWN7721P

Grandstream Networks GWN7721P - Grandstream GWN7721P Layer 2-Lite Managed Multi-Gig Switch, 8 x 2.5 GigE, 2 x 10G SFP+ (8 x PoE/PoE+)

Description

The Grandstream GWN7721P Layer 2-Lite Managed Multi-Gig Switch, 8 x 2.5 GigE, 2 x 10G SFP+ (8 x PoE/PoE+). The GWN7721P are 10-port Layer 2 Lite Managed Switches equipped with 8 2.5-Gigabit Ethernet ports and 2 10-Gigabit SFP+ ports to allow small-to-medium businesses to build scalable and secure high-speed networks.

These devices support complex VLAN traffic segmentation, port-based VLAN, DSCP and 802.1p QoS priority management modes and IGMP Snooping to provide bandwidth control and maximize network performance. The GWN7721P’s 8 Ethernet ports all provide PoE power output, suitable for IP phones, IP cameras, Wi-Fi access points, and more. These Layer 2 Lite network switches offer a variety of free and flexible management options, including cloud management with GDMS Networking, on-premise software management with GWN Manager, and through their web user interface. By providing high-speed 2.5 Gigabit Ethernet and 10 Gigabit SFP+ ports, layer 2 lite control, flexible management options, and advanced security protection, the GWN7721P are ideal for small to-medium businesses, hotels, home offices, and more.
Features
  • 8x 2.5 Gigabit Ethernet ports and 2x 10 Gigabit SFP+ ports
  • GWN7721P ports 1-8 support PoE and provide smart power control to support dynamic PoE/PoE+ power allocation per port
  • Supports Loop Detection, Cable Test and Port Mirroring to quickly locate network faults
  • SNMPv2 remote monitoring, fault diagnosis, and configuration management
  • STP/RSTP to guarantee fast convergence, ensure network stability and provide link load balancing
  • Free and flexible management options include the local web user interface, GWN Manager, and GDMS Networking
  • DHCP Snooping ensures DHCP packets are only allowed from trusted ports to keep the DHCP environment safe
  • Built-in QoS allows for prioritization of network traffic

Specifications

Details
Manufacturer's Code GWN7721P
Network Protocol IPv4, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
2.5 Gigabit Ethernet Ports 8
10 Gigabit SFP+ Ports 2, supports 1Gbps/2.5Gbps/10Gbps
Maximum no. of Supported Modules SM-10G: 2, MM-10G: 2, RJ45-10G: 1
PoE Out Ports 8
Power Supply External Internal 110~220V AC
PoE Output Port 1-8 support 802.3af/at standard PoE out: - Up to 30W per port PoE out
Max Total PoE Output Power 130W
Max Output Power per PoE Port 30W
Auxiliary Ports 1x Reset Pinhole
Forwarding Mode Store-and-forward
Total non-blocking throughput 40Gbps
Switching Capability 80Gbps
Jumbo Frame 1518/2048/3072/4096/5120/6144/7168/8192/9216
Forwarding Rate 59.52Mpps
Pack Buffer 8Mb
MAC 16K MAC address capacity
VLAN • Supports up to 32 VLANs (out of 4K VLAN IDs) • port-based VLAN, 802.1Q VLAN • DHCP Snooping
LAG 5
Multicast IGMP Snooping ,Report Message Suppression
QoS • Auto prioritization of the incoming port of the packet • Priority Mapping • Queue scheduling, including SP, WFQ • Supports port priority, 802.1P priority, and DSCP priority • Bandwidth control • Rate limit
DHCP DHCP client
Maintenance Backup and restore, system reboot , Factory Reset, firmware upgrade, Support MAC address search, SNMP, LLDP, Monitoring including port statistics, port mirroring cable test, Ping
Security • DHCP Snooping • Spanning tree • Loop prevention • PoE Watchdog • Kensington Security Slot (Kensington Lock) support
Mounting Desktop/ Wall-Mount/Rack-Mount
LED Indicators Per device: Power- Green, Per port: Link/Activity - Green, GWN7721P Port 1-8: PoE power state - Yellow
Environmental Operating Temperature: 0 to 45 °C (32 to 113 °F), Storage Temperature: -20 to 60 °C (-4 to 140 °F), Operating Humidity: 10% to 90% Non-condensing, Storage Humidity: 10% to 90% Non-condensing
Dimensions (L x W x H) Unit: 280 x 180 x 44mm, Package: 361 x 195.5 x 52mm
Enclosure Metal
Weight Unit: 1.45KG, Entire Package: 2.06KG
Compliance FCC, CE, RCM, IC
