Grandstream Networks GWN7831 - Grandstream GWN7831 Enterprise Layer 3 Managed Aggregation Switch, 20 x SFP, 4 x SFP/GigE Combo, 4 x SFP+, Redundant PSU Support

GWN7831

Grandstream Networks GWN7831 - Grandstream GWN7831 Enterprise Layer 3 Managed Aggregation Switch, 20 x SFP, 4 x SFP/GigE Combo, 4 x SFP+, Redundant PSU Support

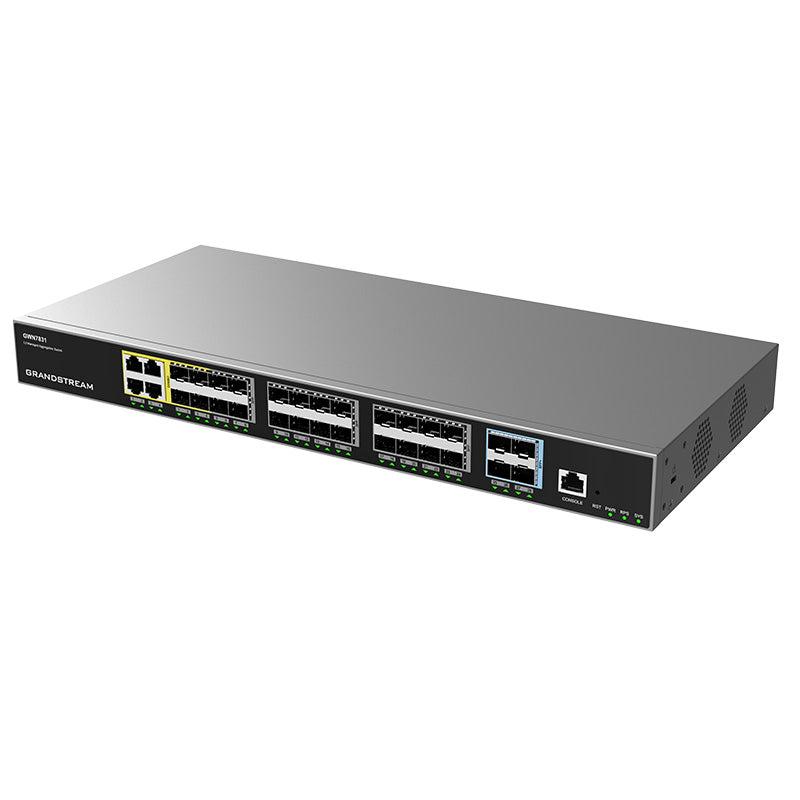

Grandstream GWN7831 Enterprise Layer 3 Managed Aggregation Switch, 20 x SFP, 4 x SFP/GigE Combo, 4 x SFP+, Redundant PSU Support.

The GWN7830 Series are Layer 3 aggregation managed switches that allow enterprises to build scalable, secure, high performance and smart business networks that are fully manageable and support maximum capacity. It supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP/MLD Snooping for network performance optimization, and comprehensive security capabilities against potential attacks. The GWN7830 series can be managed in several ways, including the local Web user interface of the switch, and CLI, the command line interface. This series is also supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform. With complete end-to-end quality of service, flexible security settings, and support for maximum network capacity, the GWN7830 Series provides enterprise-grade Layer 3 aggregation switches ideal for medium-to-large deployments.

Details
Manufacturer's Code	GWN7831-AU
Network Protocol	IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x
SFP/GigE Combo Ethernet Ports	4
SFP Ports	20
SFP+ 10Gigabit Ports	4
Console	1
Total Non-Blocking Throughput	64Gbps
Switching Capability	128Gbps
Forwarding Rate	95.232Mpps
Packet Buffer	12Mb
QoS	Port priority, Priority mapping, Queue scheduling, including SP, WRR, WFQ, SP-WRR, and SP-WFQ, Traffic shaping, Rate limit, 2K ACL for Ethernet, IPv4 and IPv6
Switching, Routing, and Multicast	16K static, dynamic, and filtering MAC addresses, 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN, 14 Link Aggregation, 2K ACL for Ethernet, IPv4, and IPv6, VLAN virtual interface, GVRP (pending), Spanning tree, 32 instances for STP/RSTP/MSTP, Static routing, Dynamic routing, including RIP, RIPng, OSPF and OSPFv3, Policy routing (pending), IGMP Snooping, MLD Snooping, MVR (pending)
Security	User hierarchical management and password protection, HTTPS, SSH, Telnet, 802.1X authentication, AAA authentication including RADIUS, TACACS+, Storm control, Port isolation, port security, sticky MAC, Filtering MAC address, IP source guard, DoS attack prevention, ARP inspection, DHCP Snooping, Loop protection including BPDU protection, root protection(pending) and loopback protection(pending), Kensington Security Slot (Kensington Lock) support
Mounting	Desktop, Wall-Mount or Rack-Mount(rack-mounting kits included)
System LEDs	1x tri-color LED for device tracking and status indication
Power Supply LEDs	2x bi-color LEDs for per power supply PWR&RPS
Data Transferring LEDs	32 x green-color
Fan	2
Environmental Operation	0°C to 45°C, humidity 10% to 90% RH(Non-condensing), Storage: -10°C to 60°C, humidity: 10% to 90% RH(Non-condensing)
Dimensions	440mm(L)x200mm(W)x44mm(H)
Unit Weight	3.15Kg
Compliance	FCC, CE, RCM, IC, UKCA
