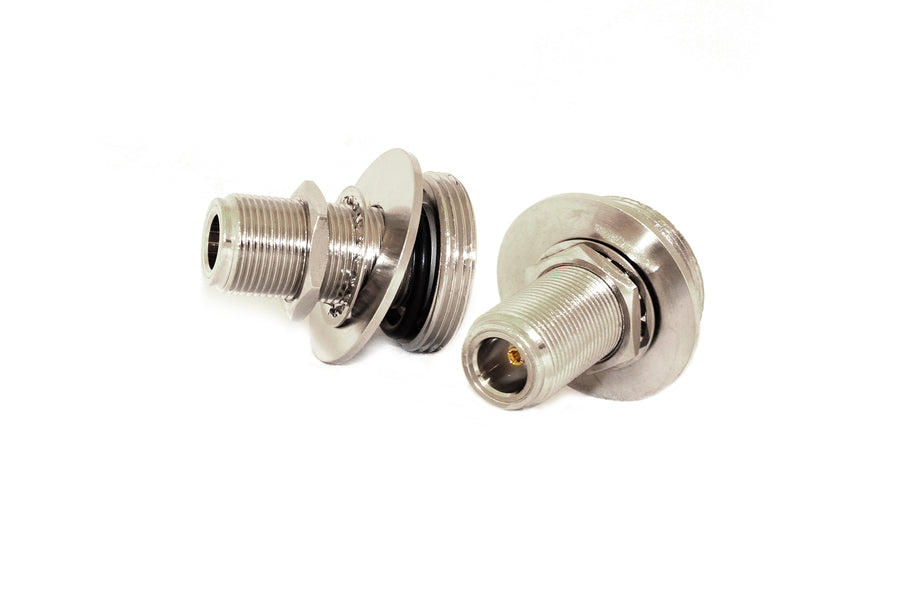

L-com MNT-02 - NMO/TAD Mobile Antenna Mount with N-Female Bulkhead Connector
L-com

L-com MNT-02 - NMO/TAD Mobile Antenna Mount with N-Female Bulkhead Connector

SKU: MNT-02 ● Out of Stock
$69.00
Free shipping over $299 Genuine product 7-day returns

MNT-02

L-com MNT-02 - NMO/TAD Mobile Antenna Mount with N-Female Bulkhead Connector

Description

The L-com AXA-AMNFB permanent mobile antenna mount features a standard TAD/NMO Motorola®-type connection. The opposite end of this mount features a N-Female Bulkhead connector. This antenna mount can be installed into panels up to 11/16 inch (17.4mm) thick, making it ideal for use with heavy duty vehicles such as mining and construction vehicles, service vehicles, public transportation as well as marine craft. It can also be used as a ceiling antenna mount. The included o-ring helps protect from moisture.
Features
  • NMO/TAD to N-Female Bulkhead connector
  • For panels up to 11/16 in. (17.4mm) thick
  • Includes o-ring to help protect from moisture

Specifications

Details
Manufacturer's Product Code AXA-AMNFB
Mount Type TAD/NMO Mount
Impedance 50 Ohms
Frequency Range DC ~ 11 GHz
Voltage Rating 1500 Volts Peak
Dielectic Withstanding Voltage 2500 Volts RMS
Insertion Loss 0.15 dB Max.
Mating NMO/TAD Threaded Coupling, 5/8-24-UNEF Threaded Coupling
Mating Torque 15 inch pounds (170 N.cm) Max.
Body Brass
Contact Gold Plated Brass
Insulator TFE
Temperature Range -55C(-67F) to +85C(+185F)
Temperature Cycling MIL-Std. 202
Weatherproof Yes
Moisture Resistance MIL-Std. 202
Corrosion MIL-Std. 202
Vibration MIL-Std. 202
Altitude MIL-Std. 202
RoHS Compliant Yes
