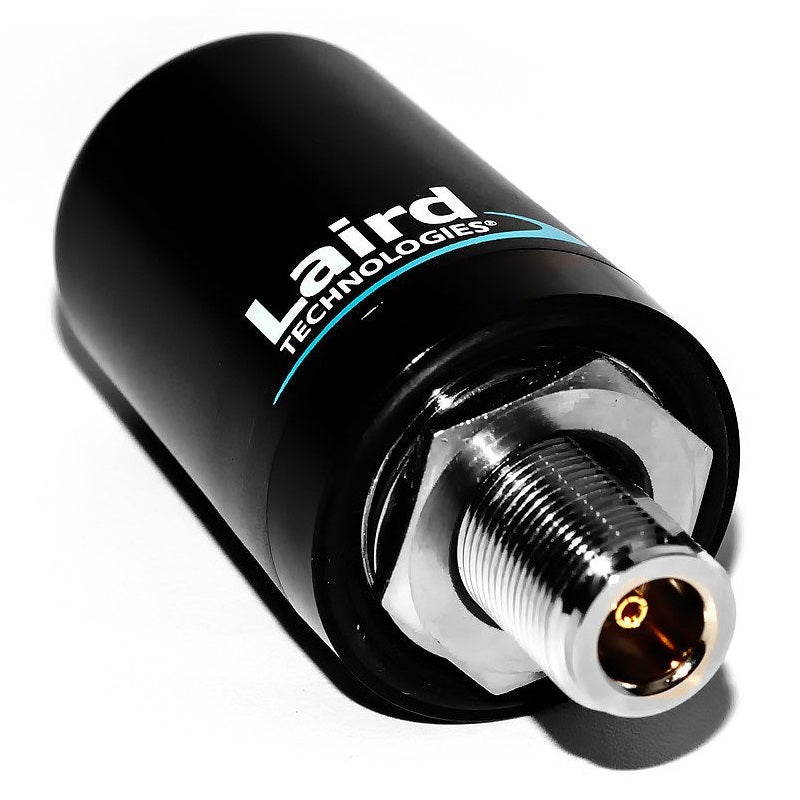

Laird Connectivity ANT-283 - Laird 902-928MHz 3dBi Black N-Female Phantom Antenna
Laird Connectivity

Laird Connectivity ANT-283 - Laird 902-928MHz 3dBi Black N-Female Phantom Antenna

SKU: ANT-283 ● In Stock
$114.11
Free shipping over $299 Genuine product 7-day returns

ANT-283

Laird Connectivity ANT-283 - Laird 902-928MHz 3dBi Black N-Female Phantom Antenna

Description

Laird 902-928MHz 3dBi Black N-Female Phantom Antenna. Laird's unique patented Phantom antenna is ideal for cell, GSM, PCE, WIFI, 802.11 and Bluetooth wireless applications. Measuring only 2.7” tall, the Phantom 800 MHz to 5.8 GHz antenna models’ revolutionary design features a robust IP67 rated mechanical solution with frequency agility, low visibility, wide bandwidth and a low angle radiation pattern that is superior to traditional gain antennas in most applications, both outdoor and indoor.

The industry standard NMO mounting socket mates with all Laird Technologies’ magnetic, trunk lid, and hole mounts. A threaded permanent stud mount model is also available for vandal resistant mounting on brackets, panels, ceilings or any other kind of housing.

The Phantom patented technology is beneficial when high performance is desired and extreme ruggedness and low profile is required.
Features
  • Patented Field Diversity Pat No. 5,977,931 & 6,292,156
  • High performance mobile antenna operates on a nonmetallic
  • surface or no ground plane (NGP)
  • High performance whipless design for mobile application.
  • Easy installation w/ optional NMO mounts
  • 100% tested on a network analyser

Specifications

Details
Manufacturer's Product Code TRAB9023NP
Frequency Range 902-928 MHz
VSWR < 2.1
Gain 3dBi
Max Power - Ambient 25°C 100 Watts
Nominal Impedance 50 Ohms
Polarization Vertical
Pattern Omnidirectional
Half-Power Beamwidth (Elevation x Azimuth) 130 x 360 degrees
Connector Type N-Female Bulkhead
Colour Black
Material SABIC Lexan
Operating Temperature -40 to +85 deg C
