Laird Connectivity DCE-04 - Laird Technologies DCE10-H-001
Laird Connectivity

Laird Connectivity DCE-04 - Laird Technologies DCE10-H-001

SKU: DCE-04 ● In Stock
$194.45
Free shipping over $299 Genuine product 7-day returns

DCE-04

Laird Connectivity DCE-04 - Laird Technologies DCE10-H-001

Description

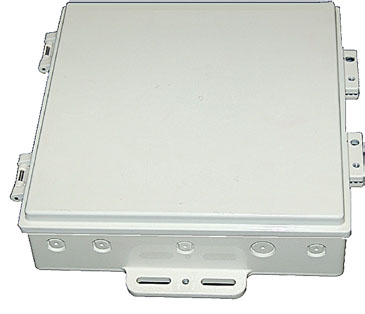

Laird 10x10x2 Die Cast Aluminium Enclosure with 11 engineered knockouts Nema 6 Rated with pole mount bracket.

The die-cast enclosure can be pole or wall mounted. A heavy-duty tilt bracket is available for those installations requiring up or down tilt. Eleven (11) engineered knockouts are provided; 9 sized for N connectors and 2 sized for a cable feedthrough.
Features
  • 11 engineered knockouts
  • Wide band antennas
  • Rugged and weatherproof
  • Hinged cover for easy maintenance
  • IP 67 Rated

Specifications

Details
Product Code DCE10-H-001
Knockouts (Qty 11) Qty 3 0.810 Diameter hole Qty 8 0.625 Diameter hole, Double D
Knockout Locations Qty 5 on bottom, Qty 3 on Right Side, Qty 2 on Top and Qty 1 in Back
Useable Interior Space 10 x 10 x 2 (181 x 156 x 51mm)
Mounting 1 to 2 pole using included bracket kit, or wall mount using user supplied screws
Cover Seal High Performance EPDM Gasket
Solar Heat Rise Internal Temperature 4 deg C above External Ambient
Overall Size (L x W x H) 12.5 x 10.4 x 3.6 (254 x 180 x 57mm)
Weight 5.75 lb.
