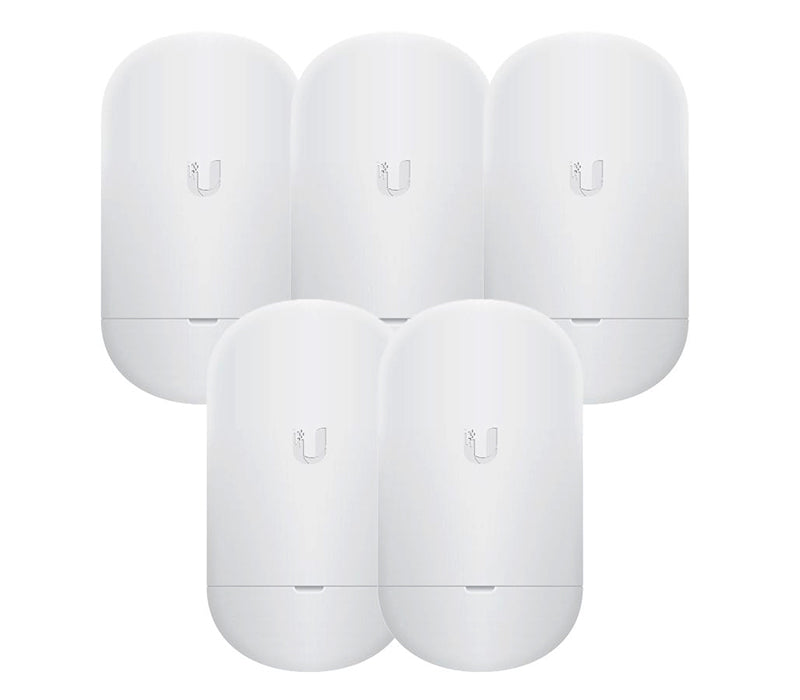

LOCO5AC-5 - Ubiquiti NanoStation Loco 5ac 5 Pack (PoE Sold Separately)
Ubiquiti

LOCO5AC-5 - Ubiquiti NanoStation Loco 5ac 5 Pack (PoE Sold Separately)

SKU: LOCO5AC-5 ● In Stock
$527.49
Free shipping over $299 Genuine product 7-day returns

LOCO5AC-5

LOCO5AC-5 - Ubiquiti NanoStation Loco 5ac 5 Pack (PoE Sold Separately)

Description

Ubiquiti NanoStation 5AC Loco 300mW 13dBi CPE/Bridge Radio 5 Pack. Ubiquiti Networks set the bar for the world's first low-cost and efficient broadband Customer Premises Equipment (CPE) with the NanoStation® M. The NanoStation AC and NanoStation AC loco take the same concept to the future with sleek form factors, along with integrated airMAX (MIMO TDMA protocol) technology and dedicated Wi-Fi management. The radio and antenna are combined to create a more efficient and compact CPE. The NanoStation AC and NanoStation AC loco get maximum gain out of the smallest footprint. The low cost, high performance, and small form factor of the NanoStation AC and NanoStation AC loco make them extremely versatile and economical to deploy.

Power over Ethernet power supply sold separately
Features
  • Cost Effective 5 Pack
  • PoE Sold Separately
  • Versatile Mounting Both models are suitable for indoor and outdoor installations
  • Improved Surge Protection The NanoStation AC and NanoStation AC loco utilize the latest ESD Protection to help protect against power surges
  • Efficient Footprint The radio and antenna are combined into a single body that takes up minimal space
  • Quick Installation No fasteners are required for pole-mounting, and a single wall fastener (not included) is required for wall-mounting (NS-5AC only)

Specifications

Details
Manufacturer's Code Loco5AC-5
Output Power 25dBm
Operating Modes AP/Station/WDS
Frequency Range 5150-5875MHz; 2.4GHz (Management Radio)
Interfaces (1) 10/100/1000 Mbps Ethernet Port
PoE In Yes, 24VDC
Antenna gain dBi 13dBi
Max Power consumption 8.5W
Number of chains 2
Polarisation Dual Linear
Beamwidth 45° (H-pol) / 45° (V-pol) / 45° (Elevation)
Pole Diameter 30-50mm
Dimensions 179 x 77.5 x 59.1 mm
