LTU-Instant-5 - Ubiquiti UISP LTU Instant 5-pack Convertor Kit for LBE-5AC-GEN2
Ubiquiti

LTU-Instant-5 - Ubiquiti UISP LTU Instant 5-pack Convertor Kit for LBE-5AC-GEN2

SKU: LTU-Instant-5 ● In Stock
$639.69
Free shipping over $299 Genuine product 7-day returns

LTU-Instant-5

LTU-Instant-5 - Ubiquiti UISP LTU Instant 5-pack Convertor Kit for LBE-5AC-GEN2

Description

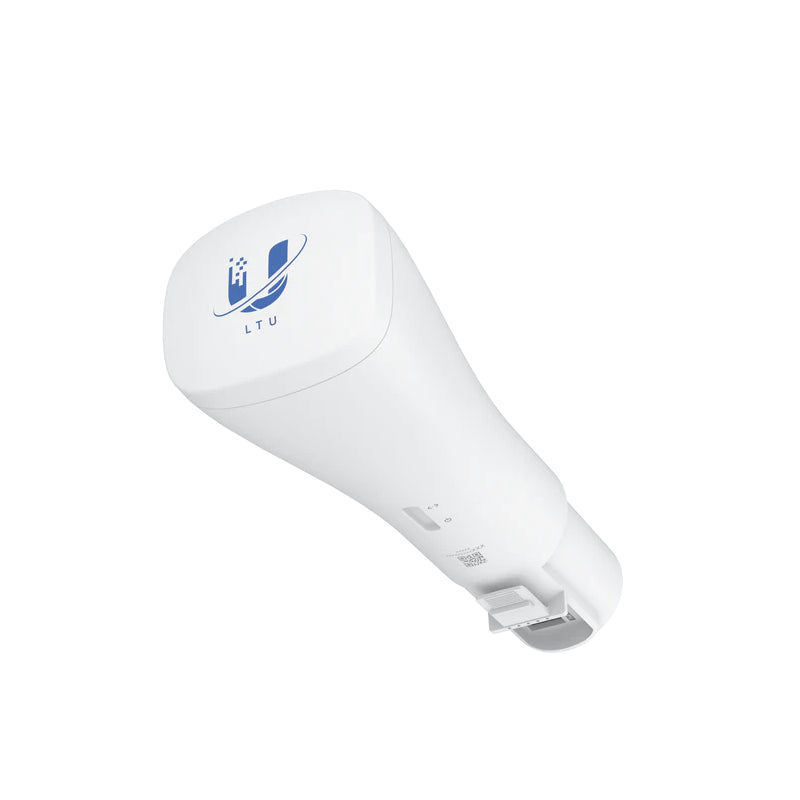

Ubiquiti UISP LTU Instant 5-pack Convertor Kit for LBE-5AC-GEN2. 5 GHz LTU client that functions in a point-to-multipoint (PtMP) environment with the LTU Rocket as its base station and PTP mode.

The LTU Instant is a 5 GHz LTU client that serves as a plug-and-play conversion module for existing LiteBeam (LBE-5AC-GEN2) deployments. Designed to function in a PtMP environment with an LTU Rocket serving as its base station, the LTU Instant delivers up to 550 Mbps of real TCP/IP throughput with its 22dBi high-gain antenna. It also offers a robust feature set including frequency splitting, router mode support, accommodating bandwidth options, and configuration management from the AP side. The LTU Instant can be set up in minutes and fully managed with the UISP web application or mobile app.
Features
  • Proprietary Ubiquiti LTU core processor
  • Easily integrates with LBE-5AC-GEN2 deployments
  • Channel width flexibility (10/20/30/40/50 MHz bandwidth)
  • Configuration management from the AP side
  • Router mode support
  • Frequency splitting
  • Quick, Bluetooth-powered setup via the UISP Mobile app
  • Also Supports PTP Mode

Specifications

Details
Manufacturer's Code LTU-Instant-5
Operating frequency 5.15 to 5.95 GHz * Dependent on regional regulations..
Max. conducted TX power 22 dBm (per chain)
Channel bandwidth 10/20/30/40/50 MHz
Antenna gain 22 dBi
Isolation 20 dB
OS airOS
Modes PtMP CPE only
Management interface UISP application (web/mobile)
Minimum software requirements A modern web browser or an iOS/Android device
Maximum throughput 550 Mbps
Encryption WPA2-PSK (AES)
Uplink/downlink ratio 25/75, 33/67, 50/50
Networking interfaces (1) GbE RJ45 port
LEDs Power/Ethernet
RF connections Internal
Max. power consumption 8.5W
Power method Passive PoE 2-pair (4, 5+; 7, 8-)
Power supply 24VDC, 0.5A Gigabit PoE adapter (included)
Supported voltage range 22 to 26VDC
Operating temperature -40 to 60° C (-40 to 140° F)
Operating humidity 5 to 95% noncondensing
Certifications FCC, IC, CE
Dimensions Feed: 201.46 x 64.15 x 56.15 mm (7.93 x 2.53 x 2.21")
Weight Feed: 215 g (7.58 oz)
Enclosure material UV-stabilized polycarbonate
Wind loading 275 N at 200 km/h (61.8 lbf at 125 mph)
Weatherproofing IPX6
