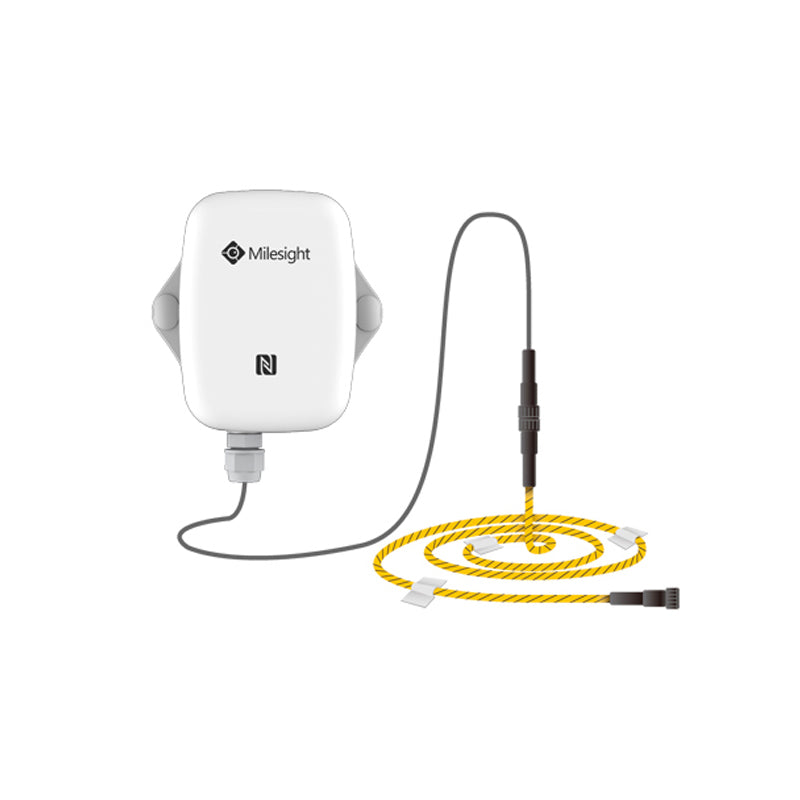

Milesight IoT EM300-ZLD-915M - Milesight LoRaWAN AU915/AS923 EM300 Zone Leakage Detection IoT Sensor
Milesight IoT

Milesight IoT EM300-ZLD-915M - Milesight LoRaWAN AU915/AS923 EM300 Zone Leakage Detection IoT Sensor

SKU: EM300-ZLD-915M ● In Stock
$230.00
Free shipping over $299 Genuine product 7-day returns

EM300-ZLD-915M

Milesight IoT EM300-ZLD-915M - Milesight LoRaWAN AU915/AS923 EM300 Zone Leakage Detection IoT Sensor

Description

Milesight LoRaWAN AU915/AS923 EM300 Zone Leakage Detection IoT Sensor. The Milesight EM300-ZLD is a compact zone leakage detection IoT sensor used for detecting large areas of water (or other liquids) and transmitting an alarm using LoRaWAN® technology. With its low power consumption technology, the EM300-ZLD can work up to 5 years with one 4000 mAh battery. Combining a Milesight LoRaWAN® gateway and Milesight IoT cloud, users can manage all sensor data remotely and visually and receive alarms via the mobile APP.

EM300-ZLD also integrates temperature and humidity sensors, which has a great use for applications such as pipe leakage monitoring, basement flooding, pump failure, etc.

Need help selecting the right IoT solution?

Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API’s for third party connectivity.

Consult with Scopious IoT today!
Features
  • Detect the presence of liquids using a long cable and based conductivity
  • Embedded with a temperature and humidity sensor for environment monitoring
  • Ultra-wide-distance transmission up to line of sight of 10km
  • IP67 UV-resistant and waterproof enclosure for harsh environment applications
  • Built-in 4000 mAh replaceable battery and works for 5 years without replacement
  • Equipped with NFC for easy configuration
  • Compliant with standard LoRaWAN® gateways and network servers
  • Quick and easy management with Milesight IoT Cloud solution

Specifications

Details
Product Code EM300-ZLD-915M
Frequency US915/AU915/KR920/AS923
Tx Power 16dBm
Sensitivity -147dBm @300bps
Mode OTAA/ABP Class A
Trigger Condition When liquid level reaches 5mm
Cable Length 3m (customizable)
Temperature Range -30°C to + 70°C
Accuracy 0°C to + 70°C (+/- 0.3°C), -30°C to 0°C (+/- 0.6°C)
Humidity Range 0% to 100% RH
Accuracy 10% to 90% RH (+/- 3%), below 10% and above 90% RH (+/- 5%)
Resolution 0.5% RH
Power On & Off NFC, power button (Internal)
Configuration Mobile APP(via NFC) or PC software (via USB Type-C)
Power Supply 1 × 4000 mAh ER18505 Li-SOCL2 battery (extendable to 2 batteries)
Battery Life* >5 years (10 min interval and alarm once every day, SF10)
Operating Temperature -30°C to +70°C
Relative Humidity 0% to 100% (non-condensing)
Ingress Protection IP67
Dimension 105.6 × 85.3 × 27 mm (4.16 × 3.36 × 1.06 in)
Installation Wall Mounting
