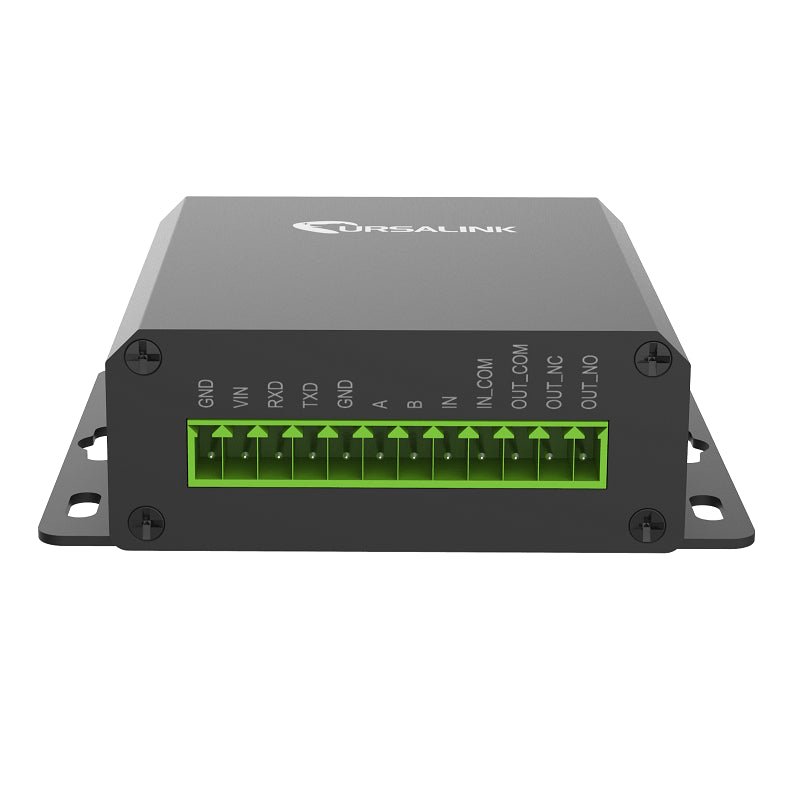

Milesight IoT UC1152-868 - Ursalink LoRaWAN EU868 Remote IoT Client with RS232, RS485 and Digital I/O
Milesight IoT

Milesight IoT UC1152-868 - Ursalink LoRaWAN EU868 Remote IoT Client with RS232, RS485 and Digital I/O

SKU: UC1152-868 ● In Stock
$50.00
Free shipping over $299 Genuine product 7-day returns

UC1152-868

Milesight IoT UC1152-868 - Ursalink LoRaWAN EU868 Remote IoT Client with RS232, RS485 and Digital I/O

Description

Ursalink LoRaWAN EU868 Remote IoT Client with RS232, RS485 and Digital I/O. Ursalink UC1152 is designed as a cost-effective industrial machine monitoring device that monitors and controls up to 1 RS485, 1 RS232, 1 DC signal and 1 drivable relay output. With the aid of Ursalink UC1152, the alarm condition brings attention to engineering personnel immediately. The output can be to with an alarm indication device, such as a light or horn. The module can give immediate response to the status of both the input and output conditions. A LoRa module is embedded in the Ursalink UC1152.

Ursalink is a professional IoT company that leverages the top trending technologies to simplify the process of data collection, storage and retrieval in order to accomplish the goal: connecting "things" to the Cloud.

Need help selecting the right IoT solution?

Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API’s for third party connectivity.

Consult with Scopious IoT today!
Features
  • Easy operation anywhere and anytime
  • 1 relay drivable output
  • 1 digital input connected with 1 DC signal
  • Offer serial interface with 1 RS232 and 1 RS485
  • Collects data from Modbus slave device
  • Integrate legacy serial and I/O devices into cloud
  • Customizable conditions & programmable actions
  • Send uplink alert messages according to user-defined conditions
  • Automatic switching of field devices at set times
  • Comply with the LoRaWAN Class C protocol
  • Support star network and mesh network
  • High Rx sensitivity and adjustable Tx power
  • Up to 10km communication distance with omni-directional antenna

Specifications

Details
Manufacturer's Code UC1152-EU868
Antenna 50 Ω SMA Antenna Interface
Frequency Band EU868
Sensitivity -147 dBm @300bps
Output Power 20dBm
Protocol LoRaWAN Class C
RS485 Baud rate: 2400-115200bps, Protocol: Modbus RTU
RS232 Baud rate: 4800-115200bps
Digital Input Opto-isolated depending on voltage. Can accept any DC signals of any type, including: Dry Contacts, DC Voltage (3 - 20V), High Voltage: +3V ~ +24V, Low Voltage: +1V max
Digital Output 1 x SPDT Relay Contact Rating: Maximum Load Current: 250VAC/30VDC@3A
Connector type Screw Terminals
DC Power Supply 5-24 VDC
Operating Temperature -40degC to +70degC
Relative Humidity 0% to 95% (non- condensing)
Dimensions 79 x 60 x 24 mm
