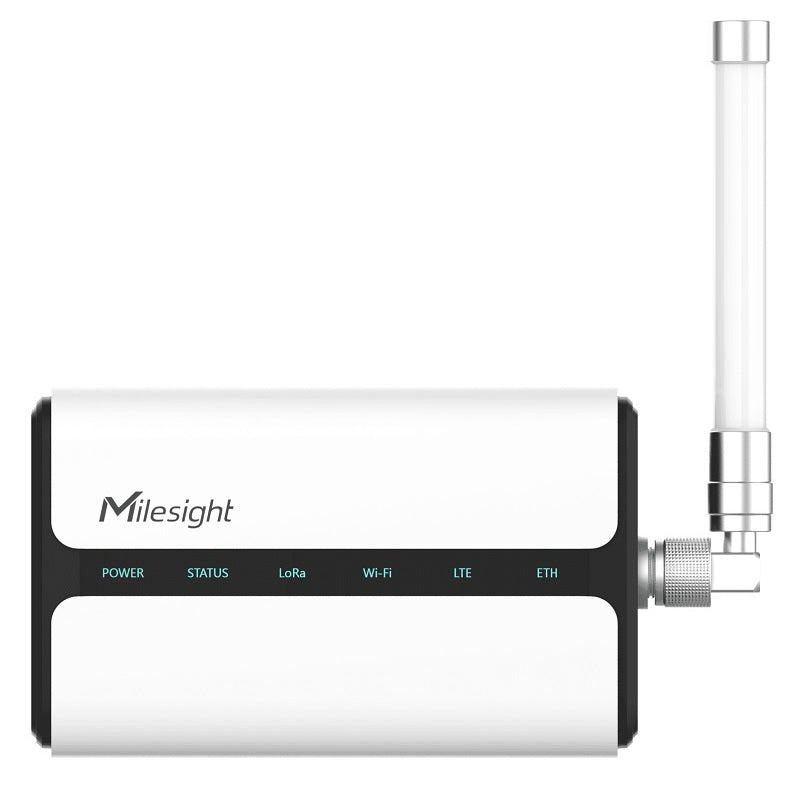

Milesight IoT UG65-915M-EA - Milesight UG65 Indoor AS923 LoRaWAN IoT Gateway with WiFi and PoE Support

UG65-915M-EA

Milesight IoT UG65-915M-EA - Milesight UG65 Indoor AS923 LoRaWAN IoT Gateway with WiFi and PoE Support

The Milesight UG65 is an affordable 8-channel indoor LoRaWAN IoT gateway. Adopting the SX1302 LoRa chip and a high-performance quad-core CPU, the UG65 supports connections with more than 2000 nodes. The UG65 has line of sight up to 10km and can cover about 2km in an urbanized environment, which is ideally suited to smart offices, smart buildings and many other indoor applications.

The UG65 supports multiple back-haul backups with Ethernet, Wi-Fi connections and has integrated mainstream LoRa network servers (such as TTN, ChirpStack, etc.). The UG65 also has a built-in network server and Ursalink Cloud for easy deployment.

Need help selecting the right IoT solution?

Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API’s for third party connectivity.

Consult with Scopious IoT today!

Details
Manufacturer's Code	UG65-915M-EA
CPU	Quad-core 1.5 GHz, 64-bit ARM Cortex-A53
Memory	512 MB DDR4 RAM
Flash	8 GB eMMC
LoRaWAN Antenna	Internal Antenna and 1 × 50 Ω N-Female External Connector)
Channels	8
Frequency Bands	AU915/AS923
Sensitivity	-140dBm Sensitivity @292bps
Output Power	27dBm Max
Protocol	V1.0 Class A/Class C and V1.0.2 Class A/Class C
Ethernet	1 × RJ45 (PoE PD support)
Data Rate	10/100/1000 Mbps (Auto-Sensing)
Mode	Full or Half Duplex (Auto-Sensing)
Wi-Fi Antenna	Integrated and Internal Antenna
Standards	IEEE 802.11 b/g/n
Tx Power	13-18dbm
Network Protocols	PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS,HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc.
VPN	OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN
Firewall	ACL/DMZ/Port Mapping/MAC Binding/URL Filter
Power Supply	DC Jack Connector for 9-24 VDC power supply or 802.3 af PoE input
Consumption	≤ 4.2W
Ingress Protection	IP65
Dimensions	180 x 110 x 56.5 mm
Mounting	Desktop, Wall or Pole Mounting
Reset Button	1 × RST
Console Port	Type-C Port
Operating Temperature	-40°C to +70°C (-40℉ to +158℉)
Storage Temperature	-40°C to +85°C (-40℉ to +185℉)
Relative Humidity	0% to 95% (non-condensing) at 25°C/77℉
