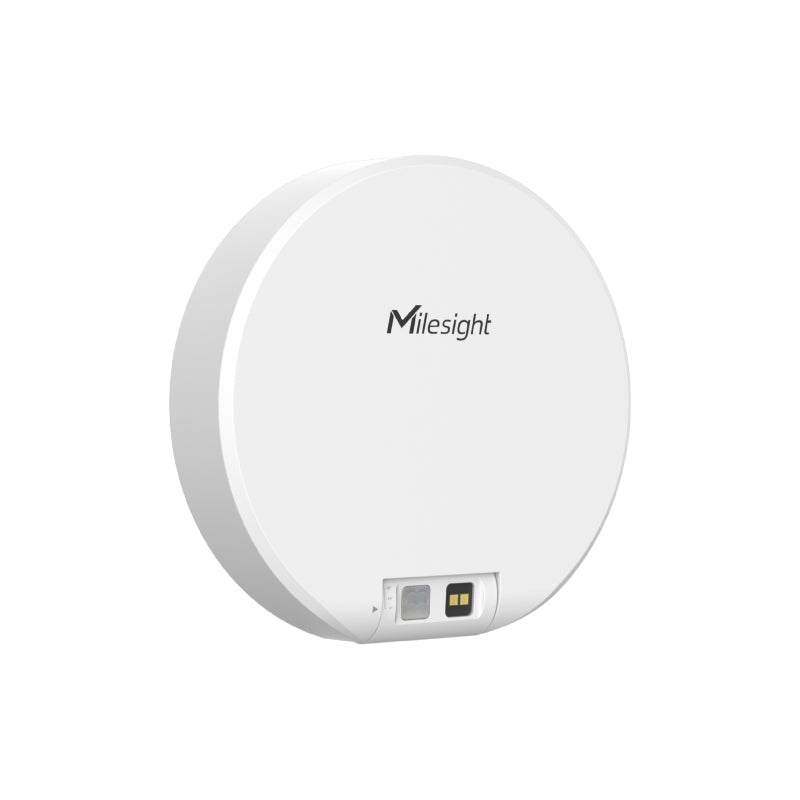

Milesight IoT VS330-915M - Milesight LoRaWAN AS923 Bathroom Occupancy Sensor with 100% Anonymous Detection

VS330-915M

Milesight IoT VS330-915M - Milesight LoRaWAN AS923 Bathroom Occupancy Sensor with 100% Anonymous Detection

The Milesight VS330-915M Uses dual technology to maximise effectiveness in data gathering for analytics. To optimize accuracy and efficiency, VS330 adopts PIR and ToF to detect space occupancy in each partition of bathrooms. With PIR detecting the human motion, and ToF measuring the distance from the objects, VS330 can definitely secures the detection results by achieving an unparalleled accuracy and ensuring 100% anonymity.

Compliant with GDPR & 100% Anonymous Detection

PIR detects infrared radiation from objects/human while ToF (Time of Flight）measures the time for a wave to travel to the object and back. No personal information is involved in the whole process.

In high traffic but low capacity environment such as public bathrooms, it is crucial to update occupancy status immediately for better flow management and higher facility efficiency.

When users enter or leave the bathroom partition, PIR is triggered firstly and then ToF technology will be used to collect data at a 5-second intervals to realize prompt and accurate updates on the occupancy status of the bathroom partition.

High accuracy does not mean high power consumption. VS330 has sophisticated trigger logic of PIR and ToF detection, which improves power efficiency and guarantee a minimum of 4 years battery life.

Need help selecting the right IoT solution?

Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API’s for third party connectivity.

Consult with Scopious IoT today!

Details
Manufacturer's Code	VS330-915M
Frequency	AU915/AS923
Tx Power	22 dBm
Sensitivity	-137dBm @ 300bps
Mode	OTAA/ABP Class C
TOF Field of View	27 ° Horizontal, 27 ° Vertical
TOF Recognition Range	0.040 to 3.5m
PIR Field of View	80 ° Horizontal, 80 ° Vertical
PIR Recognition Range	Maximum 2.5m
Sensors Adjustable angle	0°, 15°, 30°, 45°, 60°, 75°
Buttons	1 × Reset Button, 1 × Power/Reset
LED Indicators	1 × Status/Test Indicator
Power Supply	3 x 4000 mAh ER18505 Li-SOCl2 Replaceable Batteries
Operating Temperature	-20°C ~ +60°C
Storage Temperature	-20°C ~ +60°C
Relative Humidity	0 ~ 95% (Non-condensing)
Color	White (Black on request)
Dimension	100 × 100 × 24 mm
Installation	Ceiling Mount or Wall Mount via Screws or 3M tapes
