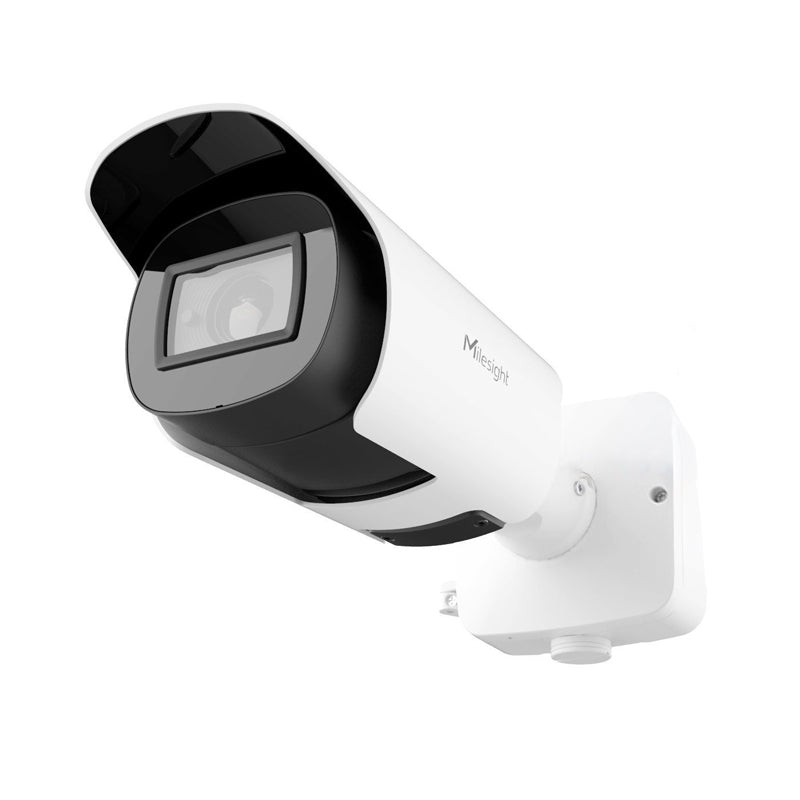

MS-C4466-RFILPG1 - Milesight 4MP NDAA Entrance & Exit AI LPR Pro Bullet Plus Camera

MS-C4466-RFILPG1

MS-C4466-RFILPG1 - Milesight 4MP NDAA Entrance & Exit AI LPR Pro Bullet Plus Camera

Milesight offers a number of options to ensure the powerful plate data management and flexible deployment of Milesight ANPR systems. Milesight Milesight Entrance & Exit AI LPR Camera features on-edge plate management for black/white lists realizing the fast implementation for barrier control. It also works well with Milesight own back-ends including Milesight NVR, CMS and Milesight VMS Enterprise to form fully closed-loop traffic solutions. Besides, it offers various CGI/APIs and supports interfaces and protocols like TCP, HTTP, etc., which makes it easy to integrate openly with all data being pushed to third-party VMS or platforms.

With built-in AI LPR algorithms and embedded black and white lists, Milesight Entrance & Exit AI LPR Cameras enable a standalone license plate recognition solution for fast implementation scenarios such as gates or barrier control with high efficiency and accuracy. It can also be used with Milesight's own back-ends, including Milesight NVR, CMS and Milesight VMS Enterprise, to form a fully closed-loop traffic solution. This highly integrated system ensures a smooth experience for access control operations at both entrances and exits.

Beyond vehicle feature and license plate recognition, Milesight Entrance & Exit AI LPR Camera can link with any regular cameras to capture the evidence. Thanks to the seamless trigger between the LPR camera and the regular camera, users can easily provide solid and convincible evidence with LPR results together with overview snapshots and critical details, such as driver's face and loaded materials in trucks.

With Milesight LPR Smart Search, relevant videos can be found quickly by searching for only a portion of the target suspect vehicle's features, such as vehicle type & color, plate color, plate number, speed, direction and etc., ensuring efficient event investigations and intelligent road traffic monitoring. In addition, it supports manual export and automatic export for easy management by security operators. Based on AI algorithm, the LPR function provides value-added data via a pre-trained deep learning model and continuously training to algorithms automatically, which can not only recognize vehicle plates in real time with high accuracy, but also identify more vehicle features, like vehicle type, color, etc., generating powerful security and traffic insights.

Details
Model	MS-C4466-RFILPG1
Image Sensor	1/1.8″ Progressive Scan CMOS
Min. Illumination	Color: [email protected] B/W: 0Lux with IR on
WDR	Support
Shutter Time	1/100000s~1s
Day/Night Mode	Day/Night/Auto/Customize/Schedule
IR Wave Length	850nm (Default); 740nm (Optional)
Illumination Distance	Up to 20m
S/N	>55dB
Lens	Motorized [email protected]
Field of View	H114°~H45°/ D116°~D51°/ V57°~V25°
Mount	Φ14
P-Iris	Support
Focus Control	Auto/Manual
Max. Vehicle Speed	60km/h
Capture Rate	0.99
Recognition Accuracy	0.98
Coverage	2 lanes
Country/Region Supported	More than 80 countries and regions
ANPR Distance	Up to 15m
Attributes Identification	Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction Detection * Vehicle Color and Plate Color identification are not supported in low-light or night conditions.
Smart Traffic Function	Evidence Camera Linkage
White/Black List	Up to 100,000 records inside the camera
LPR Smart Search	Support
Ethernet	1*RJ45 10M/100M Ethernet Port
Audio I/O	1/1
Alarm Input	2
Alarm Output	2 (1 relay output; 1 open collector output, max. 12V DC/10mA)
Wiegand	1
RS485	1
Max. Image Resolution	2688x1520
Primary Stream	60Hz: 60fps@(2688x1520, 2304x1296, 1920x1080, 1280x720) 50Hz: 50fps@(2688x1520, 2304x1296, 1920x1080, 1280x720)
Secondary Stream	60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream	60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video Compression	H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate	16Kbps~16Mbps (CBR/VBR Adjustable)
Privacy Masking	Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI	Up to 8 areas
Image Setting	Brightness/Contrast/Sharpness
Network Storage	NAS (Support NFS, SMB/CIFS), ANR
Protocol	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio Compression	G.711/AAC/G.722/G.726
Audio Sampling Rate	8/16/32/44.1/48KHz
Audio Bit Rate	16~256kbps
Two-way Audio	Support
System Compatibility	API, MQTT, HTTP, TCP, ONVIF Profile G & M & S & T
Storage	microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function	BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, EIS, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support	Yes, Voice & Video-over-IP
Event Trigger	Black/White List, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action	FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
Working Temperature	-40℃~60℃
Working Humidity	0~95% (Non-condensing)
Power Supply	PoE (802.3af) / DC 12V±10%
Power Consumption	Min.: 2.78W (DC 12V), 3.62W(PoE) Max.: 8.57W (DC 12V), 10.54W(PoE)
Weather Proof	Up to IP67-rated for Weather-resistant Performance
Housing	Vandal-proof IK10-rated Metal Housing
Weight	Approx. 1300g
Dimensions	346mmX134mmX126mm
Warranty	3 Years
