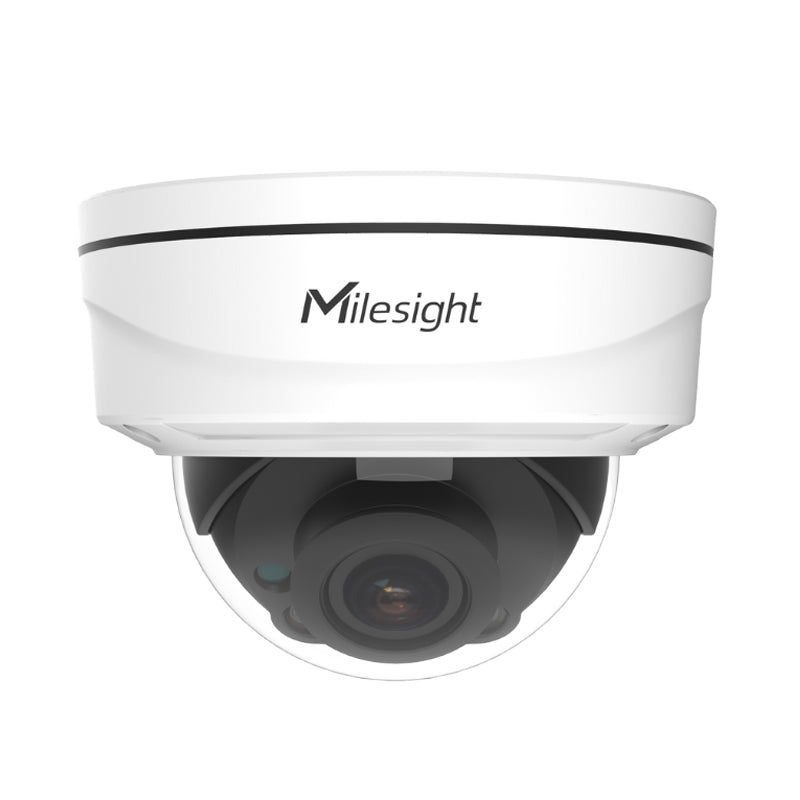

MS-C8172-RFIPG1 - Milesight 4K NDAA AI Motorized Pro Dome Network Camera

MS-C8172-RFIPG1

MS-C8172-RFIPG1 - Milesight 4K NDAA AI Motorized Pro Dome Network Camera

The new and improved Milesight 4k AI Motorized Zoom Pro Dome Network Camera with P-Iris comes jam packed with features such as H265+ - The latest generation of video encoding to give the best image quality whilst using the least amount of bandwidth. It also comes with the new and improved IR II technology to get the best image at night, and many other features such as smart stream and 120db Super WDR. The 2.8mm lens gives an impressive field of view with an IR distance of up to 50m.

With an IP67 and IK10 (vandal proof) rated enclosure, the Motorized Zoom Pro Dome is a perfect fit for any environment. Make use of the SIP/VOIP and two way audio capabilities to monitor gateways or doorways, or monitor those harder to see spots in your retail store for peace of mind.

Equipped with motorized zoom & focus lens, Milesight AI Motorized Pro Dome Network Camera allows remote control of focal length, iris and focus through the use of a lens controller, which is perfect for long distance surveillance in areas such as parking lots, highways and ports.

Engineered for exceptional low-light performance, this feature combines a 1/1.8” large sensor with a Day-Night Co-focus Lens to capture sharp, detailed images around the clock. The upcoming AI ISP technology will further optimize image quality, delivering true-to-life colors and enhanced clarity even in the darkest environments.

Details
Product Code	MS-C8172-RFIPG1
Image Sensor	1/2.8" Progressive Scan CMOS
Min. Illumination Color	Color: [email protected], B/W: 0Lux with IR on
WDR	120dB Super WDR
Shutter Time	1/100000s∼1s
Day/Night Mode	Day/Night/Auto/Customize/Schedule
IR Distance	Up to 50m
S/N	>55dB
Lens	Motorized [email protected]
Field of View	H100.2° ~ H27° / D117.9° ~ D31.1° / V51.9° ~ V15.1°
Mount	Φ17
Focus Control	Auto/Manual
Iris Control	Auto/Manual
Max. Image Resolution	3840x2160
Primary Stream	60Hz: 60fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 048x1536, 1920x1080, 1280x960, 1280x720)50Hz: 50fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720)
Secondary Stream	60Hz: 60fps@(704x576, 640x480, 640x360) 50Hz: 50fps@(704x576, 640x480, 640x360)
Tertiary Stream	60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360)50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360)
Quaternary Stream	60Hz: 10fps@(1280x720), 30fps@(704x576, 640x480, 640x360)50Hz: 10fps@(1280x720), 25fps@(704x576, 640x480, 640x360
Video Compression	H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate	16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking	Up to 8 areas
ROI	Up to 8 areas
Image Settings	Saturation/Brightness/Contrast/Sharpness
Audio Compression	G.711/AAC/G.722/G.726
Audio Sampling Rate	8/16/32/48KHz
Audio Bit Rate	16~256kbps
Two-way Audio	Support
Ethernet	1 x RJ45 10M/100M Ethernet Port
Audio I/O	Built-in Microphone and 1 Audio Output interface
Alarm I/O	1/1
Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Attribute Extraction	Simultaneously detect up to 50 targets and capture humans and vehicles in real time. Recognize attributes including Upper and Lower Clothing Color, Hat, and Vehicle Types (Bicycle, Car, Motorcycle, Bus, Truck, E-scooter).
Face Detection & Face Attribute Recognition	Detect and capture faces, get real-time snapshots. The attributes include Age, Gender, Glasses, Mask, and Cap.
Object Counting & Report	Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas
Heat Map	The built-in statistical behavior analysis enables you to identify the busiest areas within the environment
Sound Classification	Supports recognition of Gunshot, Glass Break, and Screaming with instant alarm triggering.
Hard Hat Detection	Detect whether individuals are wearing safety hats. Trigger an alarm when a person is identified without a hard hat.
Privacy Protection	Automatically detect faces or human bodies in the video stream and overlay mosaic effects. Supported on Primary Stream/Secondary Stream, Compatible with H.265/H.264 formats.
Fall Detection	Detect a person's fall and trigger an alarm to alert others for timely assistance.
Violence Detection	Identify violent behavior and trigger an alarm to alert others to intervene or prevent the action.
One-Click Disarm	Support
Basic Event	Motion Detection, Tamper Detection, Audio Alarm, External Input, External Output, etc.
Exception	Network Disconnection, IP Address Conflict, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card, etc.
Event Action	FTP Upload Record, SMTP Upload Record, SD Card Record, Snapshot, External Output, Play Audio, SIP Phone, HTTP Notification, etc.
Watermark	Support
Storage	Support Micro SD/SDHC/SDXC Card Local Storage, up to 1TB
SIP/VoIP Support	Yes, Voice & Video-over-IP
System Compatibility	ONVIF Profile G & M & S & T, One API
Working Temperature	-40℃~60℃
Working Humidity	0~95% RH (Non-condensing)
Power Supply	PoE (802.3af) / DC 10V~DC 28V
Power Consumption	Min.: 3.3W (DC), 4.3W (PoE) 24 Hour Average: 4.5W (DC), 5.6W (PoE) Max.: 8.7W (DC), 10.5W (PoE)
Surge Protection	6KV
Net Weight	Approx. 1.3kg
Gross Weight	Approx. 1.6kg
Dimensions	Φ143mm X 108.4mm
Warranty	3 Years
