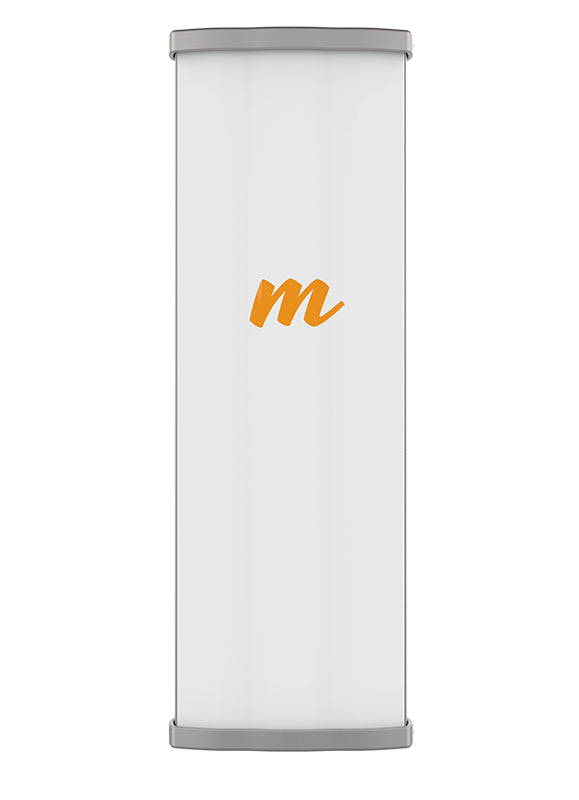

N5-45X2 - Mimosa 4.9GHz - 6.4GHz 2x2 45 Deg Sector Antenna

Mimosa 4.9GHz - 6.4GHz 45 Deg Sector Antenna, 19 dBi gain, 2 Port , includes LMR 240 Type N to Type N cables (2) and mounting brackets (2). The Mimosa N5-45 antennas, deliver all the gain and ground coverage of a sector antenna, with the amazing front-to-back and sidelobe performance of a horn. These 4.9-6.4 GHz, 45-degree sector antennas are custom-engineered for a variety of multipoint applications.

Using state-of-the-art RF design, the N5-45 antennas are custom-engineered to deliver a high-gain, 42º half-power beamwidth with non-existent side lobes.

With a front-to-back ratio of 43 dB, the N5-45 antennas utilize metalized end-caps and a precision engineered backplate extrusion to improve noise rejection.

Providing long-range tower or pole solutions for less dense coverage areas, four A5c devices plus eight N5-45x2 antennas enable cost-effective deployments with frequency re-use and 2 Gbps of capacity.

Details
Manufacturer's Product Code	N5-45X2
Gain	19dBi
Polarization	Dual-slant 45º
Azimuth Beamwidth	(4 dB): 45º
Elevation Beamwidth	(3 db): 9º
Electrical Downtilt	2º
Front-to-Back Ratio (min)	43 dB
Cross-Polar Isolation	>30 dB
Port-to-Port Isolation	>10 dB
RF Connectors	2 N-type female (includes two 1 meter LMR 240 Type-N to Type-N cables)
Impedance	50 Ω
Max Input Power	30 dBm
Enclosure Characteristics	Outdoor, UV stabilized, engineered polymer
