Ubiquiti

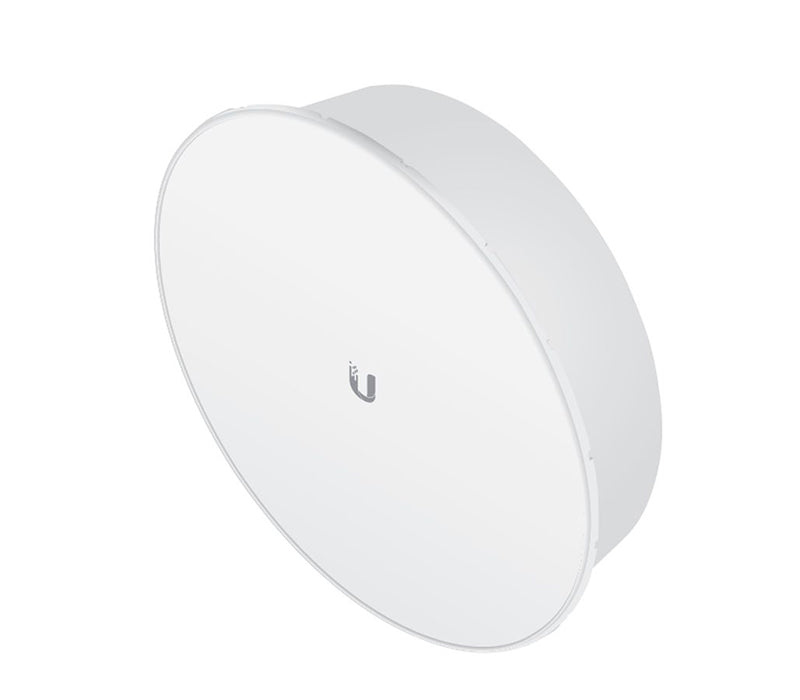

PBE-5AC-ISO-Gen2 - Ubiquiti airMax 5 GHz PowerBeam AC Gen2 with RF Isolator Shielding Ring
$326.55
Free shipping over $299
Genuine product
7-day returns
PBE-5AC-ISO-Gen2
PBE-5AC-ISO-Gen2 - Ubiquiti airMax 5 GHz PowerBeam AC Gen2 with RF Isolator Shielding Ring
Description
Ubiquiti airMax 5 GHz PowerBeam AC Gen2 with RF Isolator Shielding Ring. The Ubiquiti PBE-5AC-ISO-Gen2 offers a rear housing with a metal-plated interior, designed to enhance RF shielding. Additionally, an included protective radome shields the PowerBeam 5AC ISO Gen 2 from nature's harshest elements. The integrated isolator design spatially filters out interference, so the PBE-5AC-ISO-Gen2 delivers improved noise immunity in co-location deployments.
Features
- Improved Noise Immunity
- Up to 500Mbps actual TCP Throughput
- Ubiquiti InnerFeed technology integrates the radio into the feedhorn
- Advanced RF Analytics
- Industrial-Strength Construction
- Breakthrough RF Isolation
Specifications
| Details | |
|---|---|
| Manufacturer's Code | PBE-5AC-ISO-Gen2 |
| Dimensions | 459 x 459 x 261 mm (18.07 x 18.07 x 10.28") |
| Weight (Mount Included) | 3.22 kg (7.10 lbs) |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included) |
| Max. Power Consumption | 8.5W |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Supported Voltage Range | 20 to 26VDC |
| Antenna Gain | 25 dBi |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Processor Specs | MIPS 74Kc |
| Memory | 64 MB |
| LEDs | Power, Ethernet, (4) Signal Strength |
| Channel Sizes | PtP Mode 10/20/30/40/50/60/80 MHz, PtMP Mode 10/20/30/40 MHz |
| Antenna Feed Material | Outdoor UV Stabilized Plastic |
| Dish Reflector Material | Powder-Coated SPCC |
| Mounting | Pole-Mounting Kit (Included) |
| Wind Loading | 559 N @ 200 km/h (125.7 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| RoHS Compliance | Yes |
| Salt Fog Test | IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5 |
| Vibration Test | IEC 68-2-6 |
| Temperature Shock Test | IEC 68-2-14 |
| UV Test | IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4 |
| Wind-Driven Rain Test | ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5 |
| Certifications | CE, FCC, IC |
| Brand | Ubiquiti |
|---|---|
| Product Type | Networking & Wireless |
| Weight | 0.5 kg |
