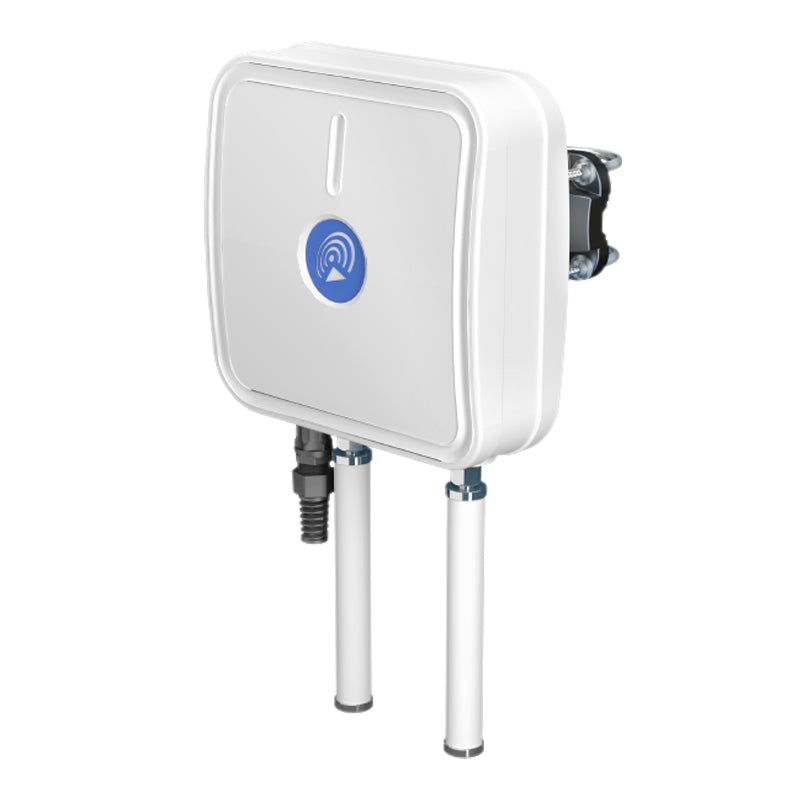

QuWireless A360M - QuMax 5G/4G/LTE plus 2.4GHz Wi-Fi Panel Enclosure Antenna for Teltonika RUT360
QuWireless

QuWireless A360M - QuMax 5G/4G/LTE plus 2.4GHz Wi-Fi Panel Enclosure Antenna for Teltonika RUT360

SKU: A360M ● In Stock
$182.64
Free shipping over $299 Genuine product 7-day returns

A360M

QuWireless A360M - QuMax 5G/4G/LTE plus 2.4GHz Wi-Fi Panel Enclosure Antenna for Teltonika RUT360

Description

QuMax A360M 5G/4G/LTE plus 2.4GHz Wi-Fi Panel Enclosure Antenna for Teltonika RUT361

QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika RUT360 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. It has embedded also outdoor Wi-Fi omni antennas.
Features
  • IP67 Outdoor antenna
  • Made to fit mount
  • Easy to Install
  • Easy Integration with Teltonika RUT361

Specifications

Details
Product Code A360M
Supported LTE/5G bands 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 85, 103, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101, n256
Frequency Gain 0.694 - 0.96 GHz : 4 dBi , 1.7 - 2.2 GHz : 5 dBi , 2.2 - 2.7 GHz : 6 dBi
Beamwidth 90°/90° +/- 30°
Polarization Vertical
Impedance 50 Ω
WiFi Frequencies 2.40-2.50 GHz (6dBi)
Materials ABS, aluminum, PTFE, Fiberglass
Ingress Protection IP67
Dimensions 272 x 276 x 96 mm
Weight 1.8 kg
Operating Temperature From -40°C to 75°C
