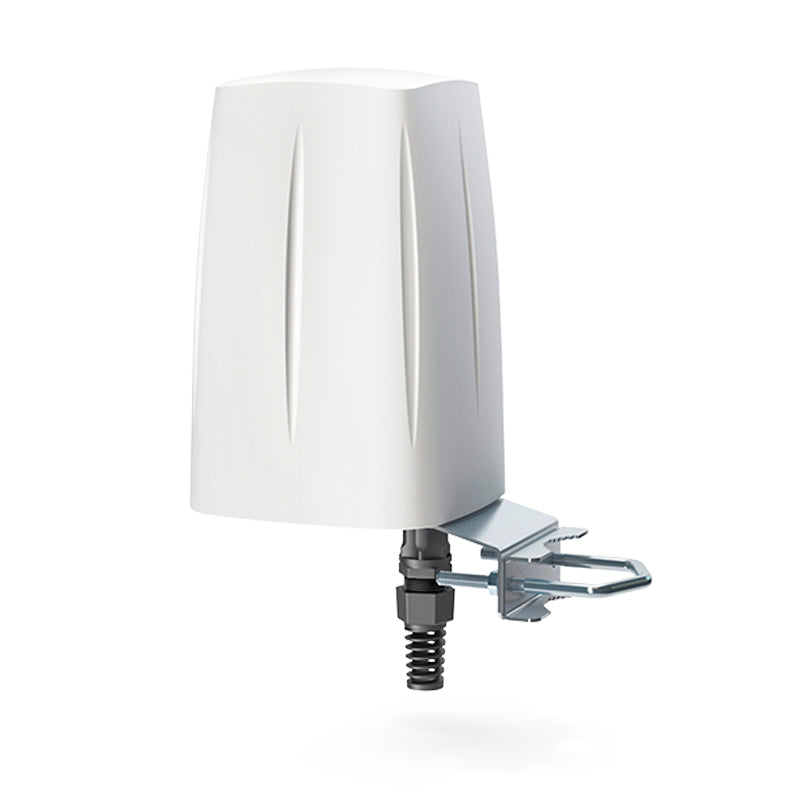

QuWireless AX12S - QuSpot Integrated MIMO 4x4 multi-band LTE, WiFi, GPS and Bluetooth Omni Antenna for RUTX12/14

AX12S

QuWireless AX12S - QuSpot Integrated MIMO 4x4 multi-band LTE, WiFi, GPS and Bluetooth Omni Antenna for RUTX12/14

QuSpot Integrated MIMO 4x4 multi-band LTE omni antenna + Wi-Fi omni antenna + GPS antenna + Bluetooth antenna + place to install Teltonika RUTX12 or RUTX14 (All-in-one)

QuSpot MIMO 4x4 omni LTE antenna (4x SMA connector for 2x embedded LTE modems or 1x MIMO 4x4 LTE modem) for Teltonika RUTX12 and RUTX14 routers is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It also has embedded Wi-Fi dual band 2.4 & 5 GHz omni antennas, GPS antenna and Bluetooth antenna. If you use RUTX12 or RUTX14 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.

Details
Product Code	AX12S
FREQUENCY	0.694-0.96 GHz, 1.7 - 2.2 GHz, 2.2 - 2.7 GHz
SUPPORTED LTE/5G BANDS	1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n90, n95
LTE GAIN	0.694 - 0.96 GHz : 2 dBi, 1.7 - 2.2 GHz : 2 dBi, 2.2 - 2.7 GHz : 3 dBi
LTE VSWR	<1.50, max <2.50
LTE BEAMWIDTH	360°/25° +/- 5°
LTE POLARIZATION	Vertical
LTE IMPEDANCE	50 Ohm
Wi-Fi FREQUENCY	2.40-2.50 GHz, 4.70 - 6.00 GHz
Wi-Fi GAIN	2.40 - 2.50 GHz : 6 dBi, 4.70 - 6.00 GHz : 7 dBi
Wi-Fi VSWR	<1.70, max <2.00
Wi-Fi BEAMWIDTH	360°/25° +/- 5°
Wi-Fi POLARIZATION	Vertical
Wi-Fi IMPEDANCE	50 Ohm
BLUETOOTH FREQUENCY	2.40-2.50 GHz
BLUETOOTH GAIN	2 dBi
BLUETOOTH VSWR	<1.70, max <2.00
BLUETOOTH BEAMWIDTH	360°/25° +/- 5°
BLUETOOTH POLARIZATION	Vertical
BLUETOOTH IMPEDANCE	50 Ohm
MATERIALS	ABS, aluminum, PTFE, FR4
INGRESS PROTECTION	IP67
CONNECTOR TYPE	RJ45
DIMENSIONS	160 x 160 x 240 mm, 6.3 x 6.3 x 9.45 inch
WEIGHT	1.5 kg, 3.31 lbs
OPERATING TEMPERATURE	From -40°C to 75°C
