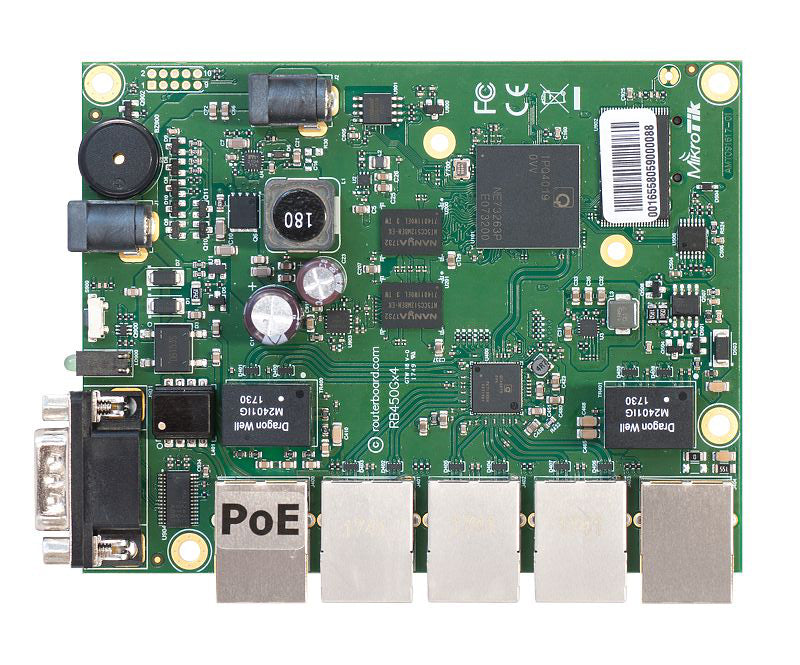

The MikroTik RB450Gx4 is an Ethernet router with five Gigabit Ethernet ports, a serial port, 512 MB NAND memory and a microSD card slot. In addition, it supports full 10 V - 57 V input by two power jacks or PoE (802.3af/ at or passive PoE) and can provide PoE output for Ethernet port #5. It is powered by MikroTik RouterOS. It comes without an enclosure, you are free to use it in your own. The device form factor is identical to our previous RB850 and RB450 series, so you can even use the same enclosures. The MikroTik RB450Gx4 is powered by a quad core ARM CPU, has 1 GB of RAM and supports hardware IPsec encryption. The device is powered by RouterOS - the operating system, which will turn this powerful system into a highly sophisticated router, firewall or bandwidth manager.

Details
Product code	RB450Gx4
Architecture	ARM 32bit
CPU	IPQ-4019
CPU core count	4
CPU nominal frequency	716 MHz
Dimensions	90 x 115 mm
License level	5
Operating System	RouterOS
Size of RAM	1 GB
Storage size	512 MB
Storage type	NAND
Tested ambient temperature	-40°C .. +70°C
Max Power consumption	5W
PoE in	802.3af/at
PoE out Passive	PoE
PoE in input Voltage	12-57 V
Number of DC inputs	3 (DC jack, PoE-IN)
DC jack input Voltage	10-57 V
10/100/1000 Ethernet ports	5
Memory card type	microSD
Serial port	RS232
PCB temperature monitor	Yes
Voltage Monitor	Yes
