RFC400-1000 - Shireen Inc RFC400 Cable 1000ft Spool 50 Ohm Coax Cable
Description

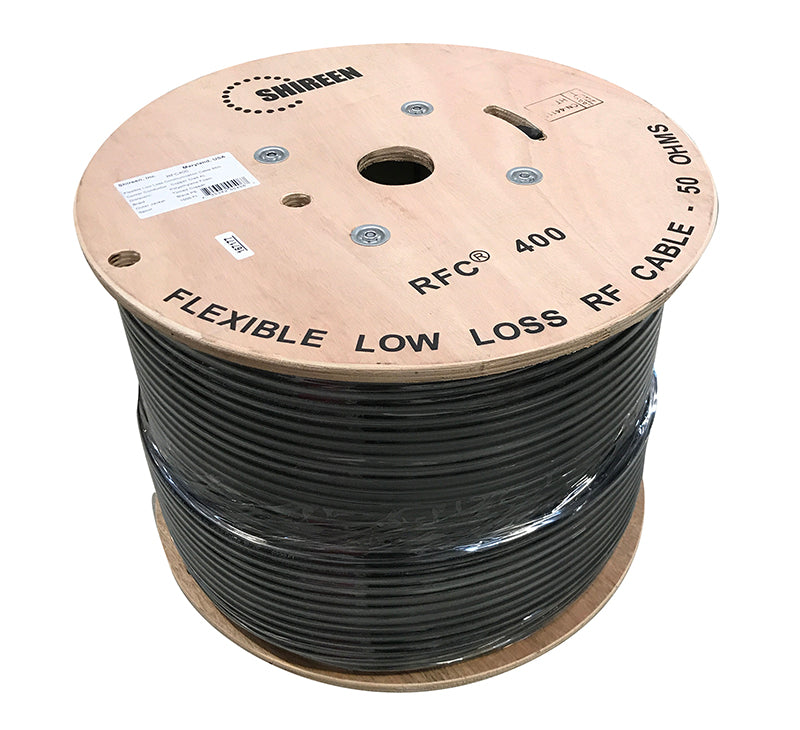

Shireen Inc RFC400 Cable 1000ft. Spool 50 Ohm Coax Cable Drum
Specifications
| Details | |
|---|---|
| Manufacturer's Product Code | RFC400-1000 |
| Center Conductor | Solid CCA |
| Conductor Dia.(+/-0.02mm) | 2.74 |
| Min. Break Strength (N) | 640 |
| Insulation | Foamed Polyethylene |
| Insulation Dia.(+/-0.10mm) | 7.24 |
| Colour | Neutral |
| Centricity (%) | ≥90 |
| Adhesion | 10 to 100N @ 25mm |
| 1st Outer Conductor | Bonded Aluminum Foil |
| Overlapping | ≥ 115% |
| Dia.(+/-0.10mm) | 7.39 |
| 2nd Outer Conductor | Tinned Copper Braid |
| Conductor Dia.(+/-0.01mm) | 0.15 |
| No. of Wires | 192 |
| Coverage (+/-3%) | 95 |
| Outer Jacket | PE |
| Outer Dia (+/-0.10mm) | 10.29 |
| Tensile strength | ≥ 16.2 N/mm2 |
| Elongation at break | ≥ 700 % |
| Adhesion | 20 to 80N @ 50mm |
| Min. Bending Radius | 25.4 mm |
| Max. Pulling Tension | 740 N |
| Crush resistance of cable (load of 700N) | < 1 % |
| Admissible Ambient Temperature | Jacket -40~+85 deg C |
| Brand | Shireen |
|---|---|
| Product Type | Cables & Connectivity |
| Weight | 0.5 kg |
