Omada

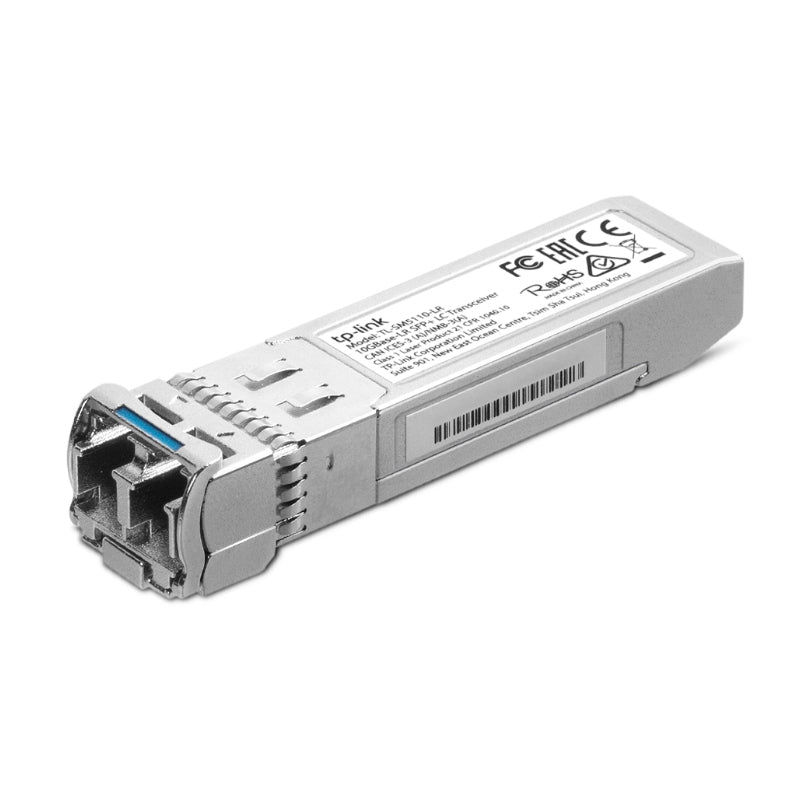

SM5110-LR - Omada SM5110-LR Single-Mode 10GBase-LR SFP+ LC Transceiver
$86.16
Free shipping over $299
Genuine product
7-day returns
SM5110-LR
SM5110-LR - Omada SM5110-LR Single-Mode 10GBase-LR SFP+ LC Transceiver
Description
The Omada SM5110-LR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-LR high performance 1310 nm single-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.
Features
- Single-mode SFP+ LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)
Specifications
| Details | |
|---|---|
| Manufacturer's Code | TL-SM5110-LR |
| Standards and Protocols | IEEE 802.3ae, TCP/IP |
| Wave Length | 1310 nm |
| Power Supply | 3.3V |
| Fiber Type | 9/125um Single-Mode |
| Max. Cable Length | 10 km |
| Data Rate | 10 Gbps, SFP+ |
| Port Type | LC Duplex |
| Operating Temperature | 0–70 °C |
| Storage Temperature | -40–85 °C |
| Operating Humidity | 10–90% RH, Non-Condensing |
| Storage Humidity | 5–90% RH, Non-Condensing |
| DDM | Yes |
| SFP-MSA | Yes |
| Hot Swappable | Yes |
| Dimensions ( W x D x H ) | 56.7*13.9*10.35 mm |
| Safety & Emission | FCC, CE |
| Brand | Omada |
|---|---|
| Product Type | Networking & Wireless |
| Weight | 0.5 kg |
