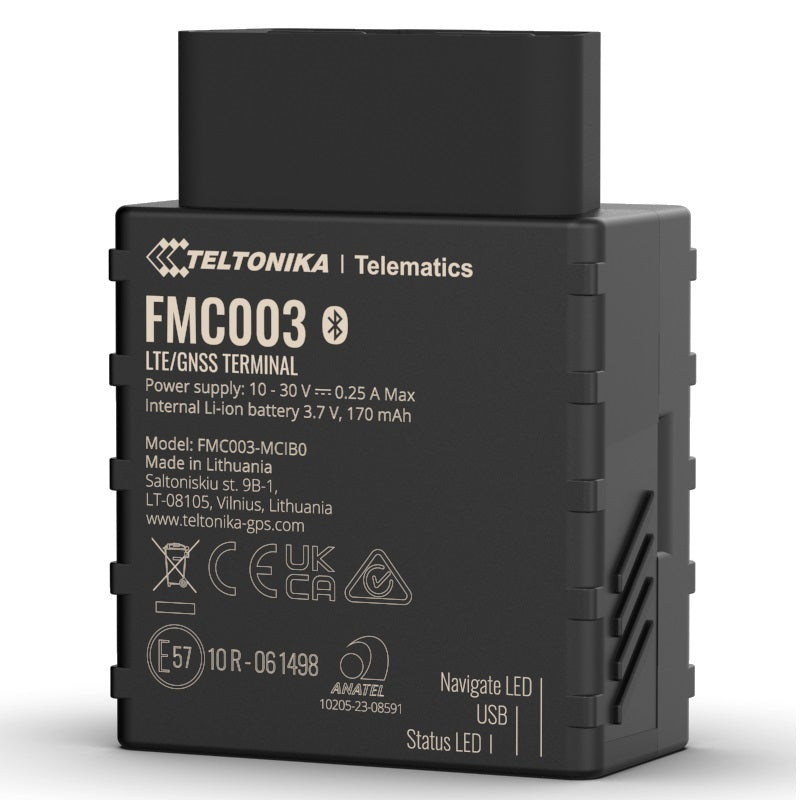

Teltonika Telematics FMC003 - Teltonika FMC003 4G LTE Cat 1 tracker with OBD OEM data reading

FMC003

Teltonika Telematics FMC003 - Teltonika FMC003 4G LTE Cat 1 tracker with OBD OEM data reading

Teltonika FMC003 is a small plug and play device with LTE CAT 1 network coverage including 2G (GSM) fallback compatibility. Main feature of FMC003 is its possibility to read OEM parameters (PIDs) via OBD port. With this device you will be able to read Real Odometer and Real Fuel Level data. More to that, device comes with supported vehicles and data list, so you do not need to guess no more, now you know what data can be read from a specific vehicle. It is a perfect tracker for a wide range of use cases - including fleet management of light commercial vehicles, driver log-book, insurance telematics (UBI), car rental & leasing and others. Device supports various Bluetooth® LE 4.0 features including sensors, beacons, firmware and configuration update via Bluetooth® which expands its already rich set of features.

Details
Product code	FMC003WMNJ01
Module	Teltonika TM2500, MeiG SLM320-E, MeiG SLM320-LA
Technology	LTE(CaT1)/2G(GSM/GPRS)/GNSS/BLUETOOTH
Frequency Bands	4G (LTE-FDD): B1, B2, B3, B4, B5, B7, B8, B20, B28, 4G (LTE-TDD): B40; 2G (GSM): B2, B3, B5, B8
Transmit power	Class 4 for GSM850/900: 23±2dBm, Class 1 for GSM1800/1900: 20±2dBm, Class 3 for LTE-TDD: 23±2.7dBm, Class 3 for LTE-FDD: 23±2.7dBm
Data support	SMS (text/data)
GNSS	GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
GNSS Receiver	33 tracking channel, 99 acquisition channel
Tracking sensitivity	-165 dBM
Position Accuracy	< 2.5 m CEP
Hot start	< 1 s
Warm start	< 25 s
Cold start	< 35 s
Velocity Accuracy	< 0.1 m/s (within +/- 15% error)
Input voltage range	10–30 V DC with overvoltage and reverse polarity protection
Internal Back-up battery	170 mAh Li-Ion battery, 3.7 V (0.63 Wh)
Power consumption	At 12V < 3 mA (Ultra Deep Sleep), At 12V < 5 mA (Deep Sleep), At 12V < 16 mA (Online Deep Sleep), At 12V < 18 mA (GPS Sleep), At 12V < 33 mA (nominal)
Bluetooth	4.0 + LE
Supported peripherals	Temperature and Humidity sensor, Inateck Barcode Scanner, Universal BLE sensors support
OBD interface Data	K-Line, CAN bus data
Data reading	Up to 32 vehicle onboard parameters, supported OBD protocols: ISO 9141-2 (5 baud init, 10.4 kbaud), ISO 14230-4 KWP (5 baud init, 10.4 kbaud), ISO 14230-4 KWP (fast init, 10.4 kbaud), ISO 15765-4 CAN (11 bit ID, 250 kbaud), ISO 15765-4 CAN (11 bit ID, 500 kbaud), ISO 15765-4 CAN (29 bit ID, 250 kbaud), ISO 15765-4 CAN (29 bit ID, 500 kbaud)
Interface Connection	OBDII Socket
GNSS antenna	Internal High Gain
Cellular antenna	Internal High Gain
USB	2.0 Micro-USB
LED indication	2 status LED lights
SIM	Micro-SIM
Memory	128MB internal flash memory
Sensors	Accelerometer
Scenarios	Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes	GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update	FOTA WEB, FOTA, Teltonika Configurator (USB, Bluetooth)
SMS	Configuration, Events, Debug
GPRS commands	Configuration, Debug
Time Synchronization	GNSS, NITZ, NTP
Fuel monitoring	OBD II
Ignition detection	Accelerometer, External Power Voltage, Engine RPM
Weight	63 g
Dimensions	67,2 x 49,6 x 25 mm (L x W x H)
Regulatory	CE/RED/UKCA, E-Mark, EAC, RoHS, REACH, RCM, SDPPI POSTEL, CITC
