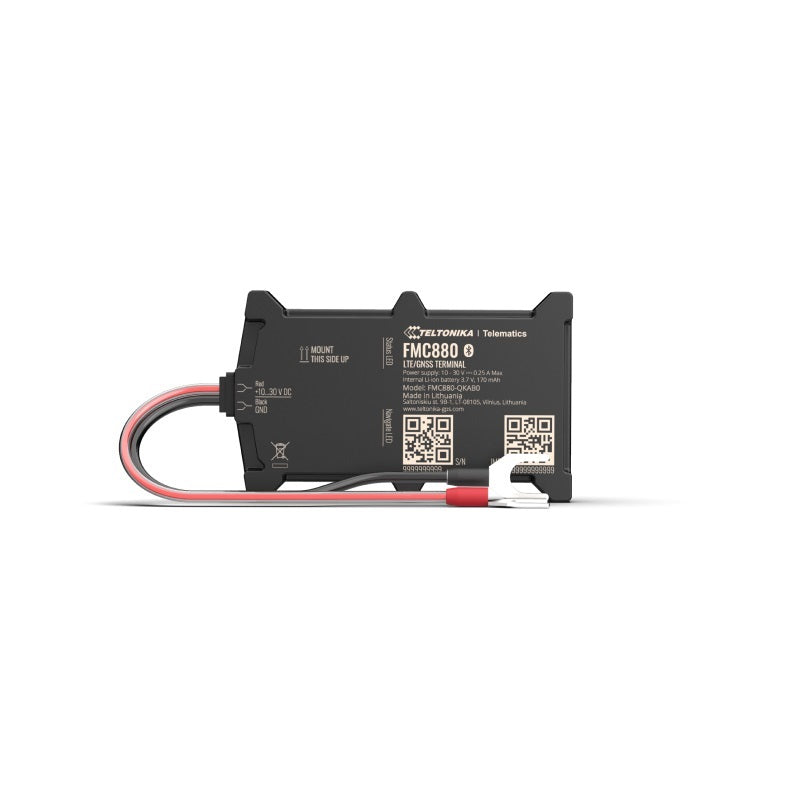

Teltonika Telematics FMC880 - Teltonika FMC880 4G LTE CATM1 Water-resistant High GNSS Precision Battery-mounted Tracker
Teltonika Telematics

Teltonika Telematics FMC880 - Teltonika FMC880 4G LTE CATM1 Water-resistant High GNSS Precision Battery-mounted Tracker

SKU: FMC880 ● In Stock
$179.56
Free shipping over $299 Genuine product 7-day returns

FMC880

Teltonika Telematics FMC880 - Teltonika FMC880 4G LTE CATM1 Water-resistant High GNSS Precision Battery-mounted Tracker

Description

Teltonika FMC880 Water-resistant high GNSS precision battery-mounted 4G LTE Cat 1 tracker. Standalone L1 and L5 dual-band GNSS receiver ensures better track quality and quick time to first fix.

With U-type cable, virtually anyone can mount the device in 5 minutes or less directly on a car battery. Bluetooth LE-based wireless connection of external devices, including Low Energy beacons and sensors, to monitor temperature, humidity, magnet detection, and movement.

Features
  • IP65-rated casing is designed to withstand poor weather conditions
  • Sensors: Accelerometer
  • Scenarios: Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
  • Sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
  • Configuration and firmware update: FOTA Web, Teltonika Configurator (USB, Bluetooth® wireless technology)
  • SMS: Configuration, Events, Debug
  • GPRS commands: Configuration, Debug
  • Time Synchronization: GNSS, NITZ, NTP
  • Ignition detection: Accelerometer, External Power Voltage, Engine RPM (OBDII dongle)

Specifications

Details
Product Code FMC880
Technology LTE CAT 1/GSM/GPRS/GNSS/BLUETOOTH LE, Quectel EG915U-EU with AG3335
Bands 4G (LTE-FDD): B1/B3/B7/B8/B20/B28
GNSS L1: GPS, GLONASS, GALILEO, BEIDOU, SBAS* , QZSS*, L5: GPS, GALILEO, BEIDOU
Receiver L1: 75 acquisition/tracking channel, L5: 60 tracking channel
Tracking sensitivity -165 dBM
Position Accuracy < 1.5 m CEP
Velocity Accuracy < 0.1 m/s (within +/- 15% error)
Hot start < 1 s
Warm start < 25 s
Cold start < 35 s
Data transfer LTE FDD (CAT 1): Max. 10 Mbps (DL) / Max. 5 Mbps (UL), GSM (GPRS): Max. 85.6 Kbps (DL) / Max. 85.6 Kbps (UL)
Transmit power Class 5 for GSM850/900: 30±5dBM, Class 3 for GSM1800/1900: 29±5dBM, Class 3 for LTE-FDD: 26±5dBM, Bluetooth: 5.54±2dBM Bluetooth LE: -4.26±2dBM
Data support SMS (TEXT, PDU), Network protocols (TCP, UDP, TLS, MQTT)
Input voltage range 10 - 30 V DC with overvoltage protection
Internal Back-up battery 170 mAh Li-Ion battery 3.7 V
Internal fuse 3A, 125V
GNSS antenna Internal High Gain
Cellular antenna Internal High Gain
USB 2.0 USB Micro B
LED indication 2 status LED lights
SIM Micro-SIM
Memory 128MB internal flash memory
Operating temperature (without battery) -40 °C to +85 °C
Storage temperature (without battery) -40 °C to +85 °C
Operating temperature (with battery) 0 °C to +40 °C
Storage temperature (with battery) -20 °C to +45 °C
Operating humidity 5% to 95% non-condensing
Ingress Protection Rating IP65
Dimensions 92.5 x 57.6 x 14 mm (L x W x H)
Weight 63 g
Regulatory E-Mark, RoHS, REACH, RCM, Declaration of IMEI assignment, ICASA, CITC, IMDA
