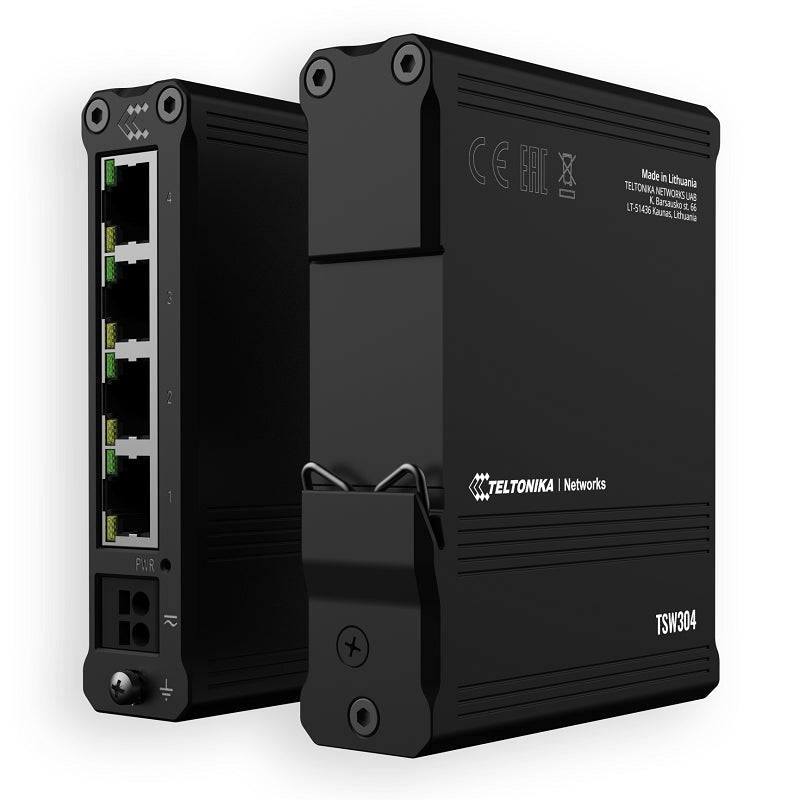

TSW304 - Teltonika 4+1 Port unmanaged gigabit network switch, DIN RAIL Mount, Heavy Duty Shock Resistant design (Power Supply Not Included)

TSW304

TSW304 - Teltonika 4+1 Port unmanaged gigabit network switch, DIN RAIL Mount, Heavy Duty Shock Resistant design (Power Supply Not Included)

Teltonika 4+1 port unmanaged gigabit network switch, DIN RAIL Mount, Heavy Duty Shock Resistant design. TSW304 is Teltonika Networks’ first unmanaged switch with an integrated, built-in DIN rail mount. Equipped with four Gigabit Ethernet ports supporting the IEEE 802.3, IEEE 802.3u, and 802.3az Ethernet standards.

Designed with easy installation in mind, the TSW304 features a compact size with a shock-resistant casing to go along with its integrated DIN mount.

10/100/1000 Mbps Ethernet ports for economical, high-bandwidth solutions to provide reliable data throughput. 2-pin industrial power socket and wide range of supported power supply voltages (7-57 VDC and 9-40 VAC).

Details
Product code	TSW304
Ethernet	4 x RJ45 ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
Bandwidth (Non-blocking)	8 Gbps
Packet buffer	128 KB
MAC address table size	2K entries
Jumbo frame support	9216 bytes
Power Connector	2-pin power socket (Power Supply Not Included)
Input voltage range	7 - 57 VDC; 9 - 40 VAC
PoE (passive)	Passive PoE input on port No. 1
Power consumption	Idle: 0.26 W / Max: 1.44 W
Status LEDs	1 x Power LED, 8 x LAN status LED’s
Casing material	Aluminum housing
Dimensions (W x H x D)	102x25x81.5 mm
Weight	210 g
Mounting options	DIN rail mounting
Operating temperature	-40 C to 75 C
Operating humidity	10 % to 90 % non-condensing
Ingress Protection Rating	IP30
Regulatory	CE, REACH, RoHS, WEEE, EN IEC 62368-1:2020+A11:2020, UKCA, FCC, IC, CB, RCM
