Tycon Systems POE-INJ-1000-WTs - Tycon Power Systems POE-INJ-1000-WTs High Power Gigabit 8 Wire Passive PoE Injector
Tycon Systems

Tycon Systems POE-INJ-1000-WTs - Tycon Power Systems POE-INJ-1000-WTs High Power Gigabit 8 Wire Passive PoE Injector

SKU: POE-INJ-1000-WTs ● In Stock
$41.00
Free shipping over $299 Genuine product 7-day returns

POE-INJ-1000-WTs

Tycon Systems POE-INJ-1000-WTs - Tycon Power Systems POE-INJ-1000-WTs High Power Gigabit 8 Wire Passive PoE Injector

Description

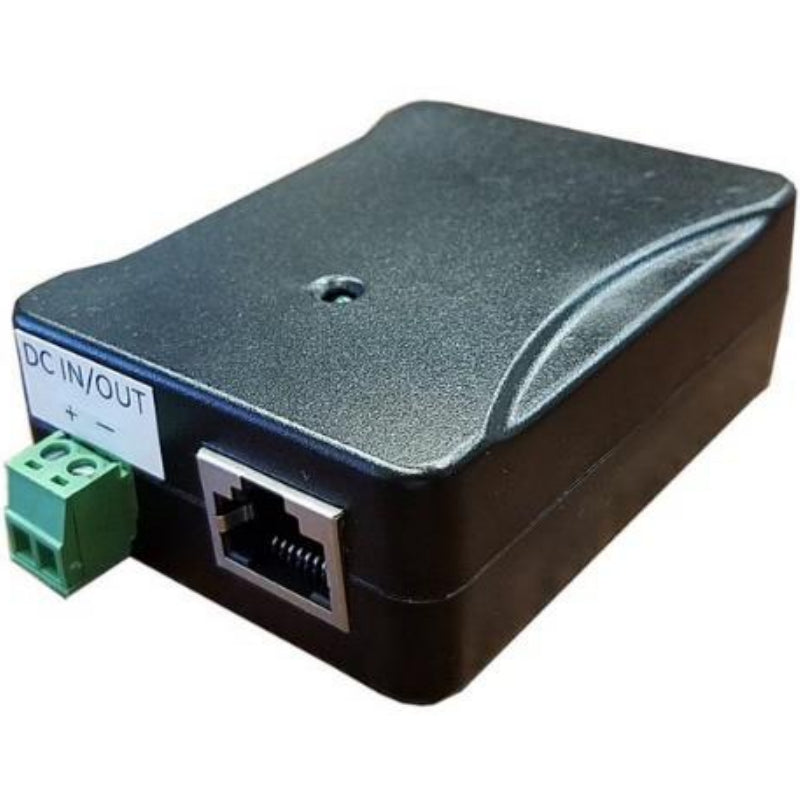

Tycon Power Systems POE-INJ-1000-WTs Gigabit 8 Wire Passive PoE Injector. The POE-INJ-1000-WTs are shielded passive power over Ethernet Inserters and Splitters that are compatible with data speeds up to 1 gigabit. The DC connector is a removeable wire terminal type power connector. The RJ45 connectors are shielded to ensure continuous shielding from power source to destination device. Power is supplied on all 8 Ethernet pins (4 Pair) This allows for transport of up to 130W over a single CAT5/6 wire up to 100m
Features
  • High Power Shielded Design (uses all 4 pairs)
  • 10/100/1000Mb Compatible
  • Removeable Wire Terminal Connector
  • 5VDC to 58VDC Power over Ethernet
  • Power On LED indicator
  • Security Applications
  • HD PTZ Cameras

Specifications

Details
Product Code POE-INJ-1000-WTs
DC Input Voltage Range 5V to 58VDC
Data Speeds 10/100/1000Mb
Maximum POE Current 2.25A, 130W Max
DC Connector Removeable Wire Terminal Connector – Maximum Wire Size 14AWG
RJ45 PoE Pinout 1,2,3,6 (V+) 4,5,7,8 (V-)
Operating Temperature -40°F to 185°F (-40°C to +85°C)
Operating Humidity Size 0 to 99% RH
Size 2.8 x 2.1 x 0.95” (71x53x24mm)
Weight 2.3oz (65g)
