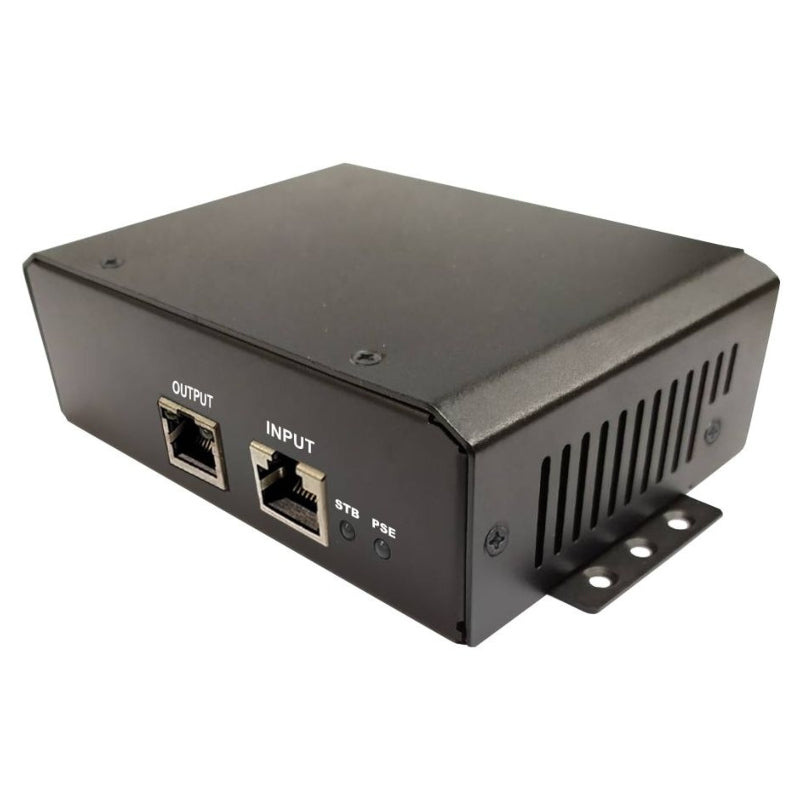

Tycon Systems TP-DC-1256GD-VHP - Tycon Power Systems TP-DC-1256GD-VHP 10-60VDC IN 56VDC Out 70W PoE Inserter
$535.61
Free shipping over $299
Genuine product
7-day returns
TP-DC-1256GD-VHP
Tycon Systems TP-DC-1256GD-VHP - Tycon Power Systems TP-DC-1256GD-VHP 10-60VDC IN 56VDC Out 70W PoE Inserter
Description
Tycon Power Systems TP-DC-1256GD-VHP 10-60VDC IN 56VDC Out 70W PoE Inserter
The 5 Gigabit-compatible TP-DC-1256GD-VHP is a high-power DC-to-DC converter and PoE inserter, designed for Ubiquiti airFiber™ systems, Axis High Power PoE PTZ cameras, and other high-power PoE devices. They deliver 56VDC PoE over all 8 Ethernet wires (4-pair).
With a wide 10–60VDC input range, they suit battery-powered applications and work in both negative and positive ground systems. Dual DC inputs allow primary and backup power connections. Built-in protections include low voltage, surge, short circuit, and overload. Encased in a metal housing, they come with a DIN rail mounting kit.
The 5 Gigabit-compatible TP-DC-1256GD-VHP is a high-power DC-to-DC converter and PoE inserter, designed for Ubiquiti airFiber™ systems, Axis High Power PoE PTZ cameras, and other high-power PoE devices. They deliver 56VDC PoE over all 8 Ethernet wires (4-pair).
With a wide 10–60VDC input range, they suit battery-powered applications and work in both negative and positive ground systems. Dual DC inputs allow primary and backup power connections. Built-in protections include low voltage, surge, short circuit, and overload. Encased in a metal housing, they come with a DIN rail mounting kit.
Features
- Wide 10–60VDC input with dual DC inputs
- 56VDC High PoE (4-pair) output, up to 70W power
- 5 Gigabit data throughput for high-speed performance
- Built-in protections: low voltage disconnect, short circuit, overcurrent, and over/under-voltage
- Industrial-grade design with a metal housing, DIN rail mount, and operation up to 70°C
Specifications
| Details | |
|---|---|
| Product Code | TP-DC-1256GD-VHP |
| Input Voltage | +/- 10VDC to 60VDC |
| DC Input Connector | Removeable Screw Type Compression Wire Terminal, 5 Pin (12 AWG Max) |
| POE Specification | IEEE 802.3at (4 Pair) Dual Detect 3645V+, 1278V- |
| Output Voltage (+/-2.5%) | 56VDC |
| Data in & Data/POE Output Connector | RJ45 (Shielded) |
| Data Rate | Up to 5 Gigabit |
| Output Current (max) | 1.25A Total |
| Output Power (max) | 70W Total |
| Self-Consumption Power | 2W |
| Low Voltage Protection | ~8-9VDC Unit will power down to conserve battery |
| Other protections | Overcurrent (110% of rated), Short Circuit, Reverse Polarity, Surge Protection |
| Efficiency | 85% Min (10VDC to 60VDC Input) (Full Load) |
| Line Regulation, Ripple, Noise | 1% |
| Load Regulation | 5% |
| EMC Standards | EN55032/55035 |
| Safety Standards | EN62368-1 |
| Operating Temperature | -40 to +70°C (-40 to +158°F) |
| Operating Humidity (RH) | 5% - 90% |
| MTBF (Mean Time Between Failure) | 96,022 Hours |
| Storage Temperature | -40 to +85°C (-40 to +185°F) |
| Dimensions (LxWxH) | 86 x 139 x 40mm (3.4 x 5.5 x 1.57”) |
| Weight | 550g (19.4oz) |
| Brand | Tycon Systems |
|---|---|
| Product Type | Networking & Wireless |
| Weight | 0.5 kg |
