U-PoE - Ubiquiti UniFi U-PoE PoE Adapter (15W)
Ubiquiti

U-PoE - Ubiquiti UniFi U-PoE PoE Adapter (15W)

SKU: U-PoE ● In Stock
$26.45
Free shipping over $299 Genuine product 7-day returns

U-PoE

U-PoE - Ubiquiti UniFi U-PoE PoE Adapter (15W)

Description

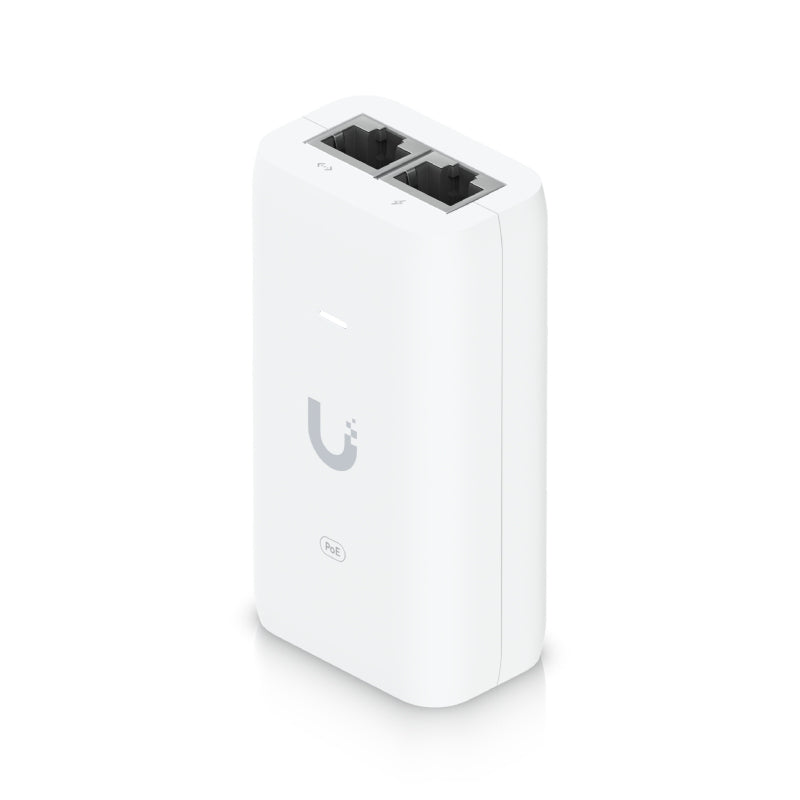

The Ubiquiti UniFi U-PoE PoE Injector is an adapter that can power UniFi PoE devices, reduce dependency on PoE switch power, and provide a Gigabit LAN connection.
Features
  • Delivers up to 15W of PoE
  • Surge, peak pulse, and overcurrent protection
  • Contains RJ45 data input, AC cable with earth ground, and PoE output
  • LED indicator for status monitoring

Specifications

Details
Product Code U-PoE
Dimensions 86 x 46 x 33 mm
Weight 100 g
Output Voltage 48V DC @ 0.32A
LAN Activity Indicator No
Gigabit LAN port Yes
Remote Reset Capability No
Reset button No
Rated Voltage 100—240V AC @ 50/60Hz
Input Current 500mA max.
Inrush Current <100A peak at 25°C
Efficiency 84.25+%
Output Ripple 200mV p-p
Switching Frequency 65 kHz
Line Regulation ≤ 3%
Load Regulation ≤ 5%
2-pair Powering Pins 4, 5 (+) and 7, 8 (-)
4-pair Powering No
AC Connector IEC-320 C6
Data In / PoE RJ45 shielded socket
Surge Protection Difference and common mode
Clamping Protection 11V data, 60V power
Maximum Surge Discharge 1500A (8/20 μs) power
Peak Pulse Current 36A (10/1000 μs) data
Shunt Capacitance <5 pF data
Response Time <1 ns
Ambient Operating Temperature 0 to 40° C
Storage Temperature -30 to 70°C
Ambient Operating Humidity 10 to 95% noncondensing
Certifications CE, FCC, IC, UL
NDAA Compliant Yes
