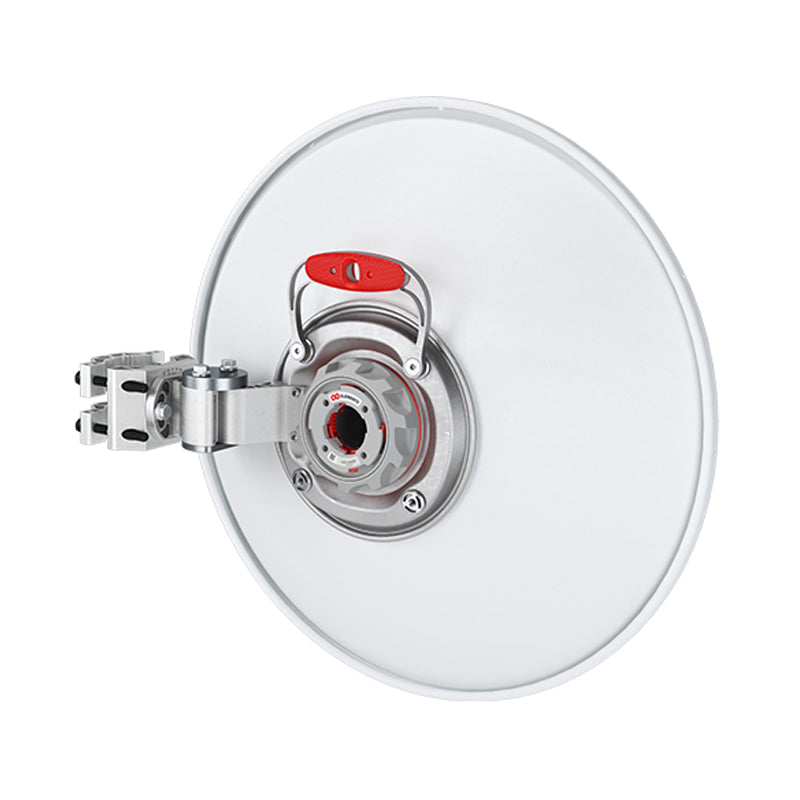

UD29WB - RF Elements 5 GHz 29dBi Wideband UltraDish Antenna, Single Pack UD29WB

UD29WB

UD29WB - RF Elements 5 GHz 29dBi Wideband UltraDish Antenna, Single Pack UD29WB

RF Elements 5 & 6 GHz 29 dBi UltraDish Wideband Antenna - UD29WB-4PACK.

The RF Elements UltraDish WB Antennas are parabolic dish antennas designed to cover both 5 and 6 GHz unlicensed bands. UltraDish 29 WB is designed for premium CPE applications demanding increased gain and high performance. UltraDish 29 WB Antenna is optimized for high directivity with suppressed side lobes and comes equipped with our proprietary waveguide TwistPort connector.

Excellent Wideband Performance

With more than 2,225 MHz wide band covering both 5 and 6 GHz unlicensed spectrum bands, UltraDish 29 WB delivers excellent performance as a CPE antenna. The radiation pattern of UltraDish 29 WB is optimized for suppressed side lobes to decrease the collected and transmitted interference in high-noise areas. Wideband performance covering U-NII-1 to U-NII-7 bands provides for excellent investment protection.

Covering 5 GHz and 6 GHz Unlicensed Bands

Stable antenna gain is important for reliable link performance. The realized gain of UltraDishTM 29 WB Antenna is stable in the 4.900-7.125 MHz spectrum, letting you leverage the extremely wide band with reliable link performance.

TwistPort For Easy Radio Connection

UltraDish 29 WB is equipped with TwistPort, our proprietary waveguide quick locking connector. TwistPort operation is extremely easy. The mounting and RF connection of the radio is combined into a single, elegant, and highly functional "twist and lock" design. A single-handed radio installation? As easy as pie!

Cross-Platform Compatibility with TPA

UltraDish 29 WB can be used with any radio with RF elements TwistPort 5 GHz or 6 GHz High Performance male interface, as well as with a variety of third-party radios connected through a 5 GHz or 6 GHz TwistPort Adaptor.

Built To Last

UltraDish 29 WB Antennas offer not only elegant and sleek design, but they are designed to resist any weather conditions. Entire antenna is built from corrosion resistant materials: marine grade aluminum sheets, extruded aluminum profiles, corrosion resistant zinc alloy and high quality ABS plastic. We pioneered the use of stainless steel hardware in WISP industry and we use exclusively stainless steel hardware in all our products, We use surface coating on stainless hardware to prevent galling wherever appropriate.

Details
Manufacturer's Code	UD29WB-4PACK
Frequency Range	4900 - 7125 MHz Antenna on WG Port
Gain	29 dBi
Azimuth Beam Width -3 dB/-6 dB	H 5.5°, V 5.5° / H 7.6°, V 7.6°
Elevation Beam Width -3 dB/-6 dB	H 5.5°, V 5.5° / H 7.6°, V 7.6°
Beam Efficiency	59 %
Front-to-Back Ratio	40 dB
VSWR	Check RF Elements online SpecCheck for performance data of the particular combination of feed (TPA) and antenna
Polarization	Dual Linear H + V
Impedance	50 Ohm
ETSI	EN 302 217-4 class 1
Radio Connection	TwistPort™ Waveguide Connector
Antenna Type	Parabolic Dish
Materials	UV Resistant ABS plastic, Aluminium, Stainless Steel
Environmental	IP65
Pole Mounting Diameter	40-80 mm
Temperature	-35°C to +60°C
Wind Survival	160 km/h
Wind Load	371/42 N - Front/Side at 160 km/h
Effective Projected Area	3002/281 cm² - Front/Side
Mechanical Adjustment	± 20° Elevation, ± 20° Azimuth
Weight	20.5 kg – 4PACK (4 units) incl. package
Dimensions	Single unit retail box: 735 × 735 × 265 mm
