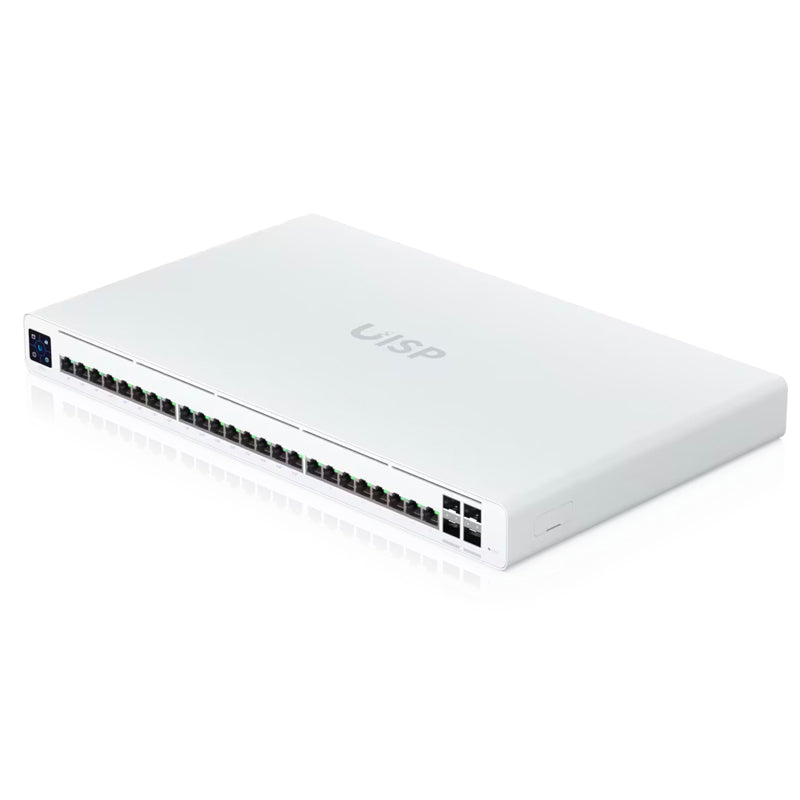

UISP-S-Pro - Ubiquiti UISP Switch Pro 24-port, Layer 2 220W (27V) PoE switch with (24) GbE RJ45 ports, including (16) with 27V passive PoE, and (4) 10G SFP+ ports.
Ubiquiti

UISP-S-Pro - Ubiquiti UISP Switch Pro 24-port, Layer 2 220W (27V) PoE switch with (24) GbE RJ45 ports, including (16) with 27V passive PoE, and (4) 10G SFP+ ports.

SKU: UISP-S-Pro ● In Stock
$911.70
Free shipping over $299 Genuine product 7-day returns

UISP-S-Pro

UISP-S-Pro - Ubiquiti UISP Switch Pro 24-port, Layer 2 220W (27V) PoE switch with (24) GbE RJ45 ports, including (16) with 27V passive PoE, and (4) 10G SFP+ ports.

Description

Ubiquiti UISP Switch Pro 24-port, Layer 2 220W (27V) Passive PoE switch with (24) GbE RJ45 ports, including (16) with 27V passive PoE, and (4) 10G SFP+ ports.

Configured and managed by the UISP software, local web interface also supported from version 1.6.0 onwards.
Features
  • (24) GbE RJ45 ports, including (16) with 27V passive PoE output
  • (4) 10G SFP+ ports
  • 220W (27V) total PoE availability, 15W/port (2-pair) / 30W/port (4-pair)
  • 1.3" LCM color touchscreen
  • Easy Bluetooth setup with the UISP Mobile app
  • Additional Power TransPort input for DC redundancy

Specifications

Details
Manufacturer's Code UISP-S-Pro
Total non-blocking throughput 64 Gbps
Switching capacity 128 Gbps
Forwarding rate 95.23 Mpps
Networking interface (24) GbE RJ45 LAN ports, (4) 1/10G SFP+ ports
Management interface Ethernet In-band, Bluetooth
PoE interface (16) 27V passive PoE: 2-pair (Pins 4, 5+/7, 8-) or 4-pair (Pins 1, 2, 4, 5+/3, 6, 7, 8-); Ports 1 to 16
Total available PoE 220W
Max. passive PoE wattage per port 30W/27V DC
Passive PoE voltage range 27V DC
LED RJ45 data ports PoE, Speed/link/activity
LED SFP+ data ports Speed/link/activity
Power method (1) Universal AC input, 100-240V AC, 4.4A Max., 50/60 Hz, (1) Power TransPort DC input 27V DC, 9.3A
Power supply AC/DC, Internal, 250W
Supported voltage range 100—240V AC
Max. power consumption 30W (Excluding PoE output)
ESD/EMP protection Air: +/- 15 kV, contact: +/- 8 kV
LCM display (1) 1.3" touchscreen
Dimensions 442.4 x 267.5 x 43.7 mm (17.4 x 10.5 x 1.7")
Weight 4 kg (8.8 lb)
Enclosure materials SGCC steel, polycarbonate/acrylonitrile butadiene styrene
Management application UISP: Version 1.5.7 and later
Operating temperature -10 to 50° C (14 to 122° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
