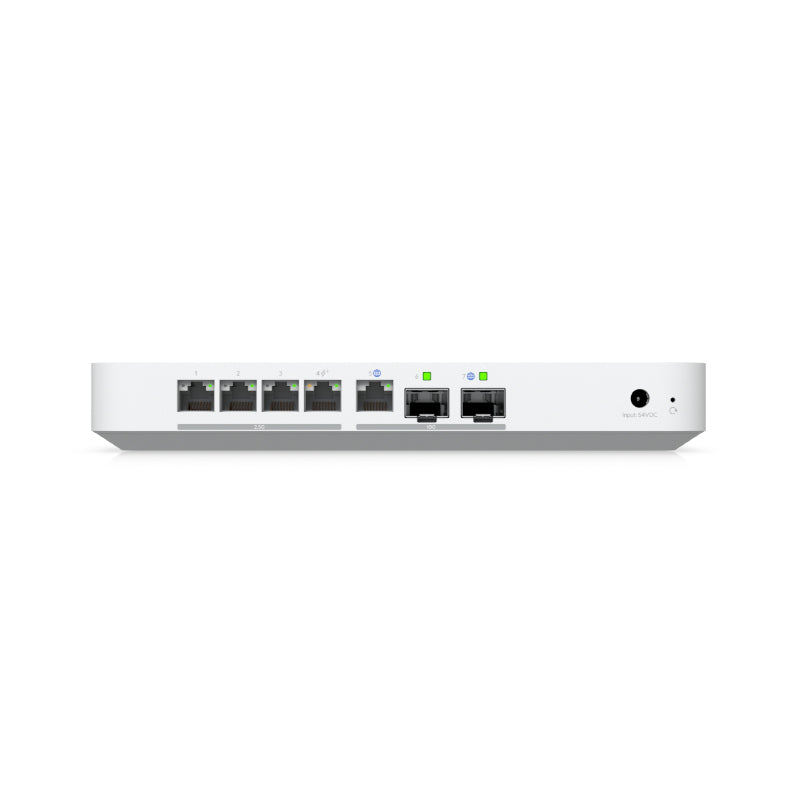

UXG-Fiber - Ubiquiti UXG-Fiber Desktop 10G independent gateway with integrated 4-port 2.5 GbE switch
Ubiquiti

UXG-Fiber - Ubiquiti UXG-Fiber Desktop 10G independent gateway with integrated 4-port 2.5 GbE switch

SKU: UXG-Fiber ● In Stock
$670.68
Free shipping over $299 Genuine product 7-day returns

UXG-Fiber

UXG-Fiber - Ubiquiti UXG-Fiber Desktop 10G independent gateway with integrated 4-port 2.5 GbE switch

Description

Ubiquiti Desktop 10G independent gateway with integrated 4-port 2.5 GbE switch. The UniFi Gateway Fiber is a desktop 10G independent gateway with integrated 4-port 2.5 GbE switch

Please note: The UXG-Fiber is managed with a Cloud Key (UCK-G2-Plus), UniFi Network Server for Linux/Mac/Windows or Official UniFi Cloud Hosting
Features
  • Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server
  • 5 Gbps routing with IDS/IPS
  • (1) 10G SFP+ and (1) 10 GbE RJ45 WAN port
  • (1) 10G SFP+ LAN port
  • Integrated 4-port switch with (1) PoE+ port

Specifications

Details
Manufacturer's Code UXG-Fiber
Dimensions 212.8 x 127.6 x 30 mm
Default WAN Ports (1) 10G SFP+, (1) 10 GbE RJ45
LAN Ports (1) 10G SFP+, (4) 2.5 GbE RJ45
IDS/IPS Throughput 5 Gbps
PoE Budget 30W
Maximum PoE Wattage per Port by PSE PoE+ @ 30W
Voltage Range PoE Mode 50—57V
Maximum Power Consumption 25W (Excluding PoE output)
Power Method DC jack (54V DC/1.1A)
Power Supply 54V DC/1.1A (Adapter included)
Supported Voltage Range 100—240V AC
Processor Quad-core ARM® Cortex®-A73 at 2.2 GHz
System Memory 2 GB
Weight 605 g
Enclosure Material Polycarbonate
ESD/EMP Protection Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature 0 to 40° C
Ambient Operating Humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
