Features

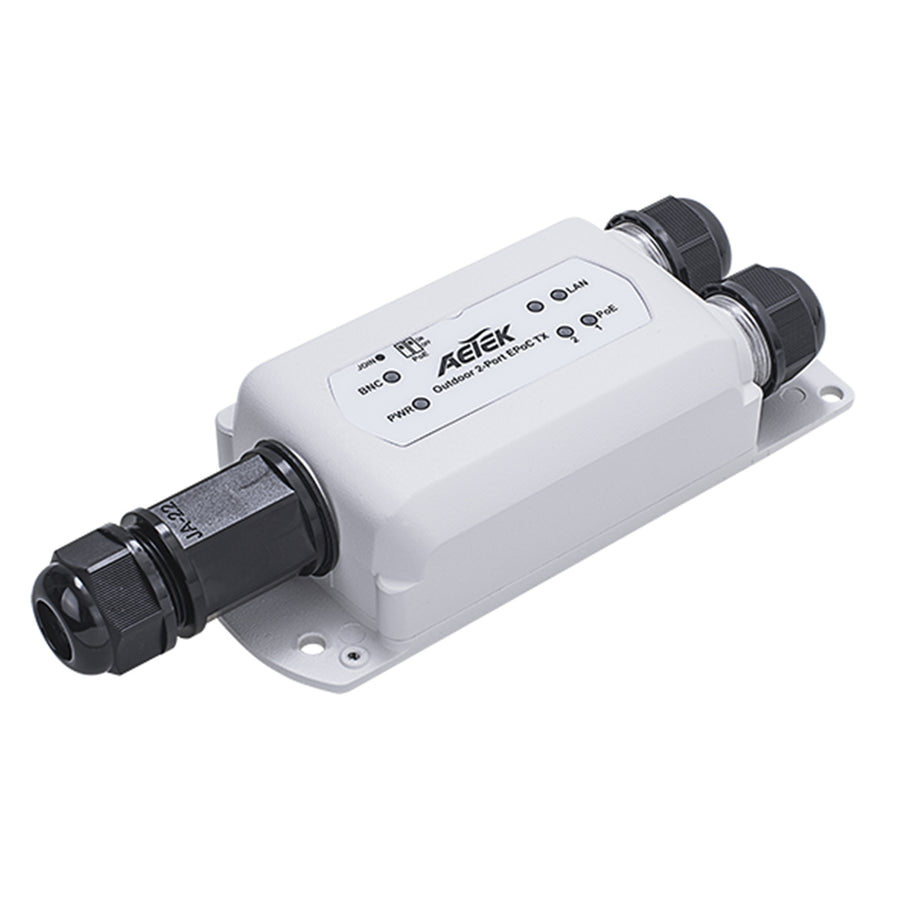

Outdoor IP67/IK10 2-Port EPoC TX Adapter

EPoC (Ethernet & Power over Coax) line is a long-reach solution providing Fast Ethernet and PoE over RG6 coaxial cable up to 1200m(3937ft) for any brand of PoE IP camera. This product line also is often used to upgrade legacy of CCTV to IP surveillance without changing legacy RG59/RG6 coaxial cable. Furthermore, outdoor EPoC solution is a rugged and economical alternative to optical fiber. In addition, the power over coax to remote PoE IP camera is more convenient than optical fiber solution.

- One BNC coax port & two PoE PSE port
- Outdoor IP67/IK10
- Enclosure with wall-mount
- 6KV Surge protection
- Eliminates the need for power supply beside long range PoE IP camera
- Delivers up to 25 watts @500m(1640ft) shared between two PoE IP cameras

Power / Distance Chart

Applications

Specifications

Technical Specifications

75Ω Coaxial BNC Port	1
10/100Mpps Ethernet RJ45 Port	2
Transmission mode	Transmitter TX mode
MAX.(Power+Data) Distance	100Mbps, 25W@500m(1,640ft) shared between two PoE IP cameras100Mbps@2,400m(7,874ft) Data only
Power Input	EPoC@50~57VDC
Power Output	Passive PoE (Compliant IEEE 802.3af PoE)
Surge Protection	6KV
Unit Power Consumption	3 watts
Dimensions (L x W x H)	157 x 55.8 x 39.75 mm (6.18x2.2x1.56")
Weight	0.3 kg (0.66 lb)
Connectors	BNCx1 , RJ45x1
Weather Rating	IP66
Vandal Proof	IK10
Operating Temperature	-30°C ~ 60°C (-22°F ~ 140°F)
Storage Temperature	-40°C ~ 85°C (-40°F ~ 185°F)
Operating Humidity	5% ~ 90% non-condensing
EMC	CE, FCC, VCCI, C-Tick
