EAH-8 - Ubiquiti UniFi Enterprise Access Hub Facility Access
Features
Ubiquiti UniFi Enterprise Access Hub Facility Access. Ubiquiti UniFi Enterprise Access Hub is an Enterprise-grade access hub with entry and exit control to eight doors and battery backup support., a part of UniFi Access solution.

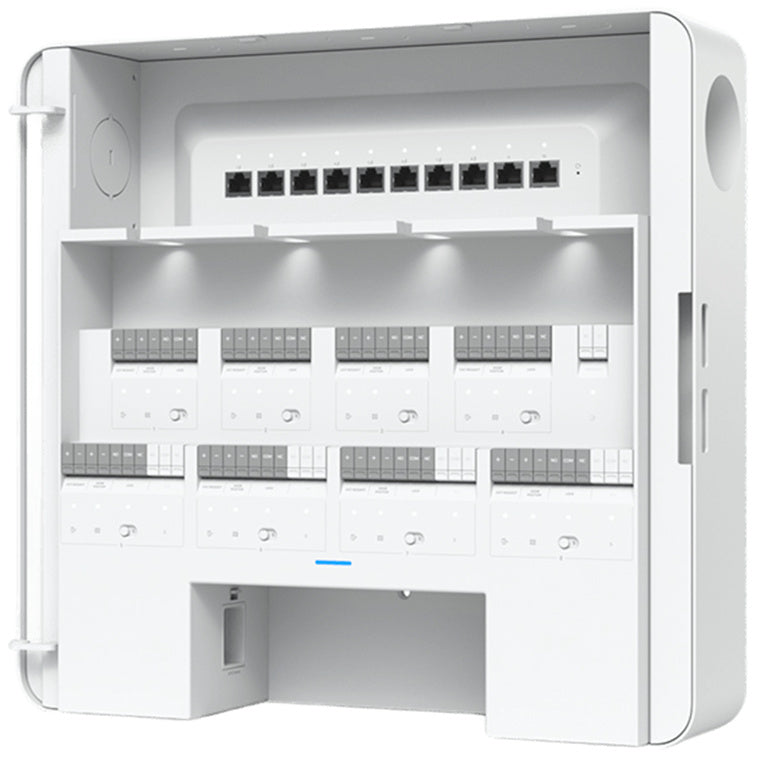

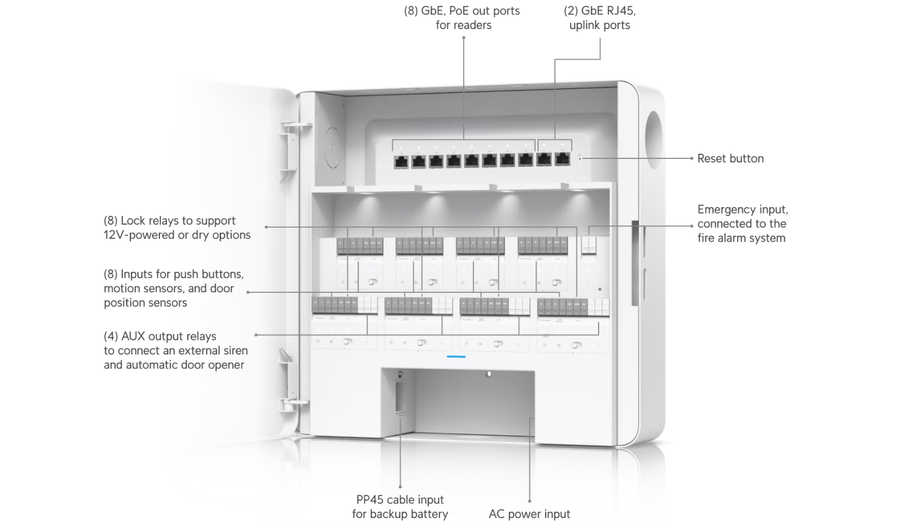

- (8) Lock terminals (12V or Dry)
- (8+8) Inputs for request-to-exit devices and door position sensors
- (8) PoE ports for Access Readers
- (4) AUX terminals for chimes, sirens, or door openers
- (1) Battery backup input (32-48V)
Building Features
Specifications
Technical Specifications

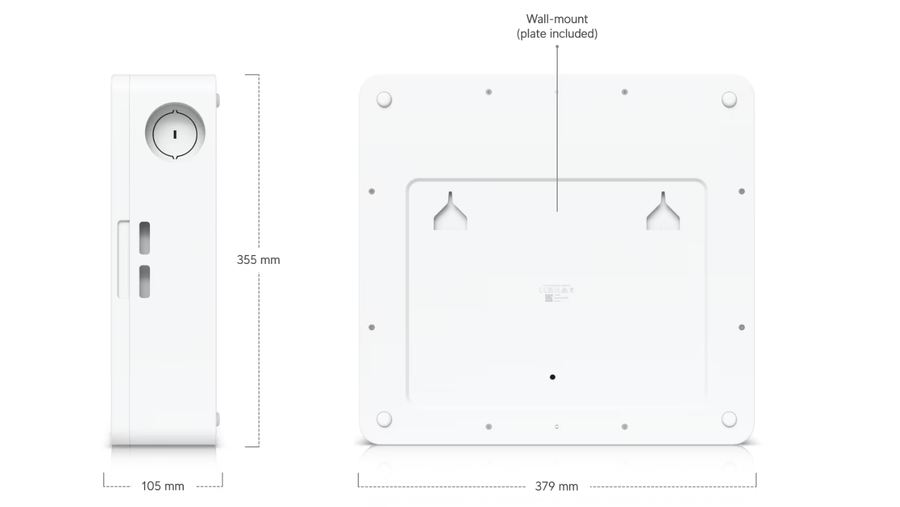

| Dimensions | 379 x 355 x 105 mm (15 x 14 x 4.1") |
|---|---|
| Weight Device | 9.1 kg (20 lb) |
| Mount | 624 g (1.4 lb) |
| Enclosure material | SGCC housing with PC cover |

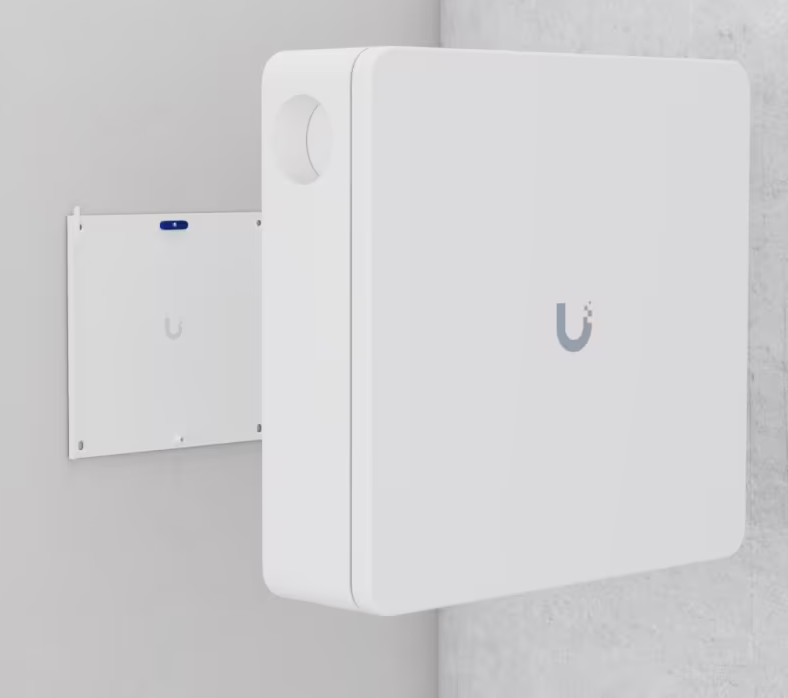

| Mounting material | SGCC wall mount plate |
| Networking interface | (10) 10/100/1000 Base-T |
| Power method | Universal input, 100-240V AC, Max. 4.4A, 50/60Hz32-48V DC Lead Acid Battery, Max. 7.5A @32V |
| Power supply | AC/DC, internal |
| Max. power consumption | 240W |
| PoE interface | (8) PoE (Pins 1, 2+; 3, 6-) |
| Voltage range PoE mode | 44-57V DC |
| Total available PoE | 60W |
| Max. PoE wattage per port | 15.4W |
| Button | (1) Factory-reset |
| Digital input | (8) Inputs for request-to-exit devices(8) Inputs for door position sensors(1) Emergency |
| Dry output relay | (8) Lock terminals (12V or Dry)(4) AUX terminals for advanced setup (Chime/Siren/Door opener) |
| Powered output relay | Lock: 12V DC, 1A/ DryAux: Dry only |
| Operating environment | Indoor use only |
| Ambient operating temperature | 0 to 40° C (32 to 104° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
