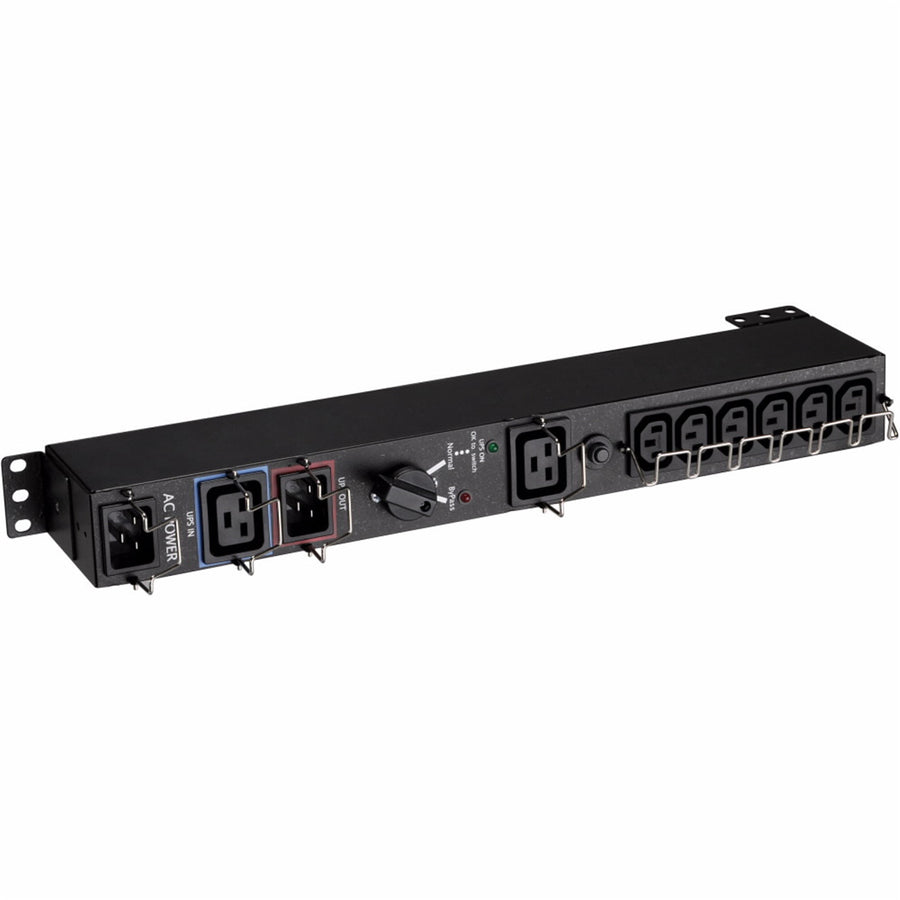

MBP3KI - Eaton HotSwap MBP IEC
Features
EATON Hotswap MBS - 1x 16A IEC, 6x 10A IEC
- High availability for all UPSs up to 11 kVA.
- HotSwap MBP provides a maintenance bypass for all UPSs. UPSs can be hot swapped or upgraded without interrupting the power supply.
- HotSwap MBP are available with multiple power ratings: 3000 VA, 6000 VA, 11000 VA, 11000 VA (3 ph Input).
- HotSwap MBP provides compatibility with any UPS now and in the future from Eaton or any other supplier
- The HotSwap MBP 3000 VA is available with different output connectors: French, Schuko, British, IEC or terminal blocks (Hard-Wired version).
- When used with a 9PX or 9SX the HotSwap MBP 6000 VA and above are providing information on the Bypass status through the UPS LCD screen.
- HotSwap MBP units can be installed as required; at the back, side, top of the UPSs, or rack-mounted.
Specifications
Technical Specifications
| Maximum power | 3000VA |
|---|---|
| Format | >1U 19" rack-mounting with multi-position mountings |
| Installation | 19" rack, wall mounting or on Eaton RT UPSs |
| Dimensions H x W x D, 44 x 483 x 80 mm | 52 x 483 x 120mm |
| Inputs | FR / DIN / BS / IEC models:1 IEC C20 (16 A) connector and1 IEC 16 A - 16 A cable (1)HW (Hard-Wired): terminal block |
| Outputs | FR: 4 French sockets + 1 IEC 16 A socketDIN: 4 Schuko sockets + 1 IEC 16 A socketBS: 3 British sockets + 1 IEC 16 A socket(with 1 circuit breaker)IEC: 6 IEC sockets + 1 IEC 16 A sockets(with 1 circuit breaker)HW: Terminal block |
| Cascading | Yes, IEC 16 A output socket |
| Retaining clips | Retaining clips on the IEC output sockets |
| Brand | EATON |
|---|---|
| Product Type | Power & Charging > UPS & Power Distribution > UPS |
| Weight | 0.975 kg |
| Warranty |
|---|
