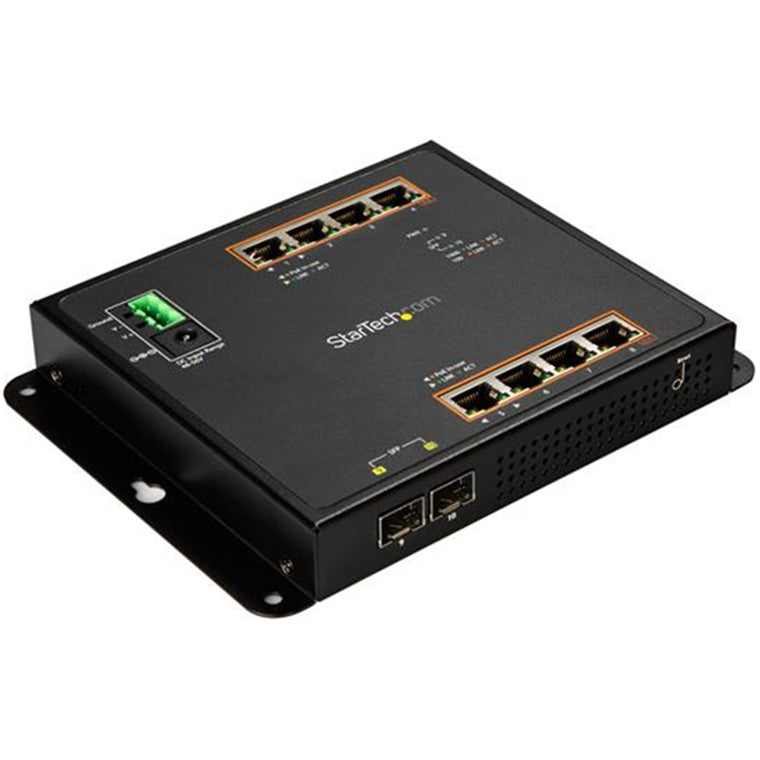

StarTech.com IES101GP2SFW - GbE Switch - 8-Port PoE+ plus 2 SFP Pts
Features
Easily deploy or scale your network with this Gigabit Ethernet switch, by adding eight copper Gigabit Ethernet ports (PoE+) and two fiber-optic SFP slots. This IP30 industrial network switch provides intelligent Layer 2 management. Its rugged, compact design and wall-mount option with front access make it ideal for demanding applications, even where space is limited.
Expand your network
This versatile switch adapts to your network needs by providing two open SFP slots and eight RJ45 Ethernet ports (PoE+), providing both fiber and copper connections in a single network device. The MSA compliant SFP ports are compatible with 100/1000Mbps networks. The network switch enables you to connect up to eight RJ45 PoE+ devices, so different users can share files and devices, such as printers and scanners, over a LAN connection.
Supports PoE+ for flexible use
Dual power input (terminal block and DC plug) provides flexible power options. The switch gives you the freedom to place your equipment in locations where power outlets are not available, with support for Power over Ethernet Plus. The network switch provides abundant PoE power, with up to 30 watts for each PoE port (200W budget).
Wall-mountable with front access
Wall-mount the compact Gigabit switch to provide convenient front access to ports and indicators. It's ideal for a wide range of applications, including tight installation areas with significant electromagnetic interference, such as control cabinets and panels. The network switch is also DIN-rail mountable.
Efficient Layer 2 management
The switch delivers efficient and stable performance, with Layer 2 management capabilities. This lets you control packet traffic on a busy network, and customize your settings to achieve optimal network performance, offering improved efficiency and reliability.
Rugged IP30 industrial design
This rugged network switch features an IP30-rated metal housing and extended temperature range of -40°C to 75°C, which makes it ideal for a wide range of operating conditions. The sturdy metal enclosure offers durability, even in harsh industrial environments.
Reliable connection for seamless network performance
With support for 10/100/1000Mbps transfer speeds, this managed switch supports full/half-duplex auto-negotiation, jumbo frames and auto MDI/MDIX operation. This lets you connect your network devices quickly and easily, with little to no configuration required.
Specifications
Technical Specifications
| Industry Standards | IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-TIEEE 802.3z 1000Base-SX/LXIEEE 802.3az Energy-Efficient Ethernet, IEEE 802.3x Flow Control, IEEE 802.1q VLAN Tagging, IEEE 802.1p QoS, IEEE 802.1x Port-Based Network Access Control, IEEE802.3ad Link Aggregation, IEEE 802.1d Spanning Tree Protocol, IEEE 802.1w Rapid Spanning Tree Protocol |
|---|---|
| Interface | RJ45 (Gigabit Ethernet)Fiber Ethernet |
| Ports | 10 |
| Auto MDIX | Yes |
| Buffer Size | 512 KB |
| Compatible Networks | 10/100/1000 Mbps |
| Flow Control | IEEE 802.3x pause frame for full-duplex, back pressure for half-duplex |
| Full Duplex Support | Yes |
| Jumbo Frame Support | 9K max. |
| Maximum Cable Length | 328 ft [100 m] |
| Maximum Data Transfer Rate | 2 Gbps (Full-Duplex) |
| MTBF | > 100,000 hrs @ 25 degrees C |
| Surge Protection | 6kV ESD, 6kV EFT |
| Switching Architecture | Store-and-Forward |
| Connector Type(s) | 8 - RJ-45 (PoE+) Female2 - SFP Slot Female1 - Terminal Block (3 Wire) Male |
| LED Indicators | 1 - Power8 - PoE Active (yellow)Link/Activity (green)2 - 100Mbps Link/Activity (yellow)1000Mbps Link/Activity (green) |
| Input Current | 1A minimum |
| Input Voltage | 48 ~ 56V DC |
| Plug Type | M |
| Power Source | Terminal Block |
| Humidity | 5~95% RH (Non-Condensing) |
| Operating Temperature | -40°C to 75°C (-40°F to 167°F) |
| Storage Temperature | -40°C to 90°C (-40°F to 194°F) |
| Color | Black |
| Enclosure Type | Steel |
| Product Height | 1 in [25 mm] |
| Product Length | 5.3 in [134 mm] |
| Product Weight | 21.8 oz [618 g] |
| Product Width | 7 in [178 mm] |
| Included in Package | 1 - network switch1 - terminal block connector4 - screw anchors4 - screws4 - attaching pins4 - locking pins4 - washers4 - magnets1 - DIN rail3 - DIN-rail screws8 - RJ45 dust caps2 - SFP dust caps1 - quick-start guide |
| Brand | StarTech.com |
|---|---|
| Product Type | Networking > Switches |
| Weight | 0.423 kg |
| Warranty |
|---|
