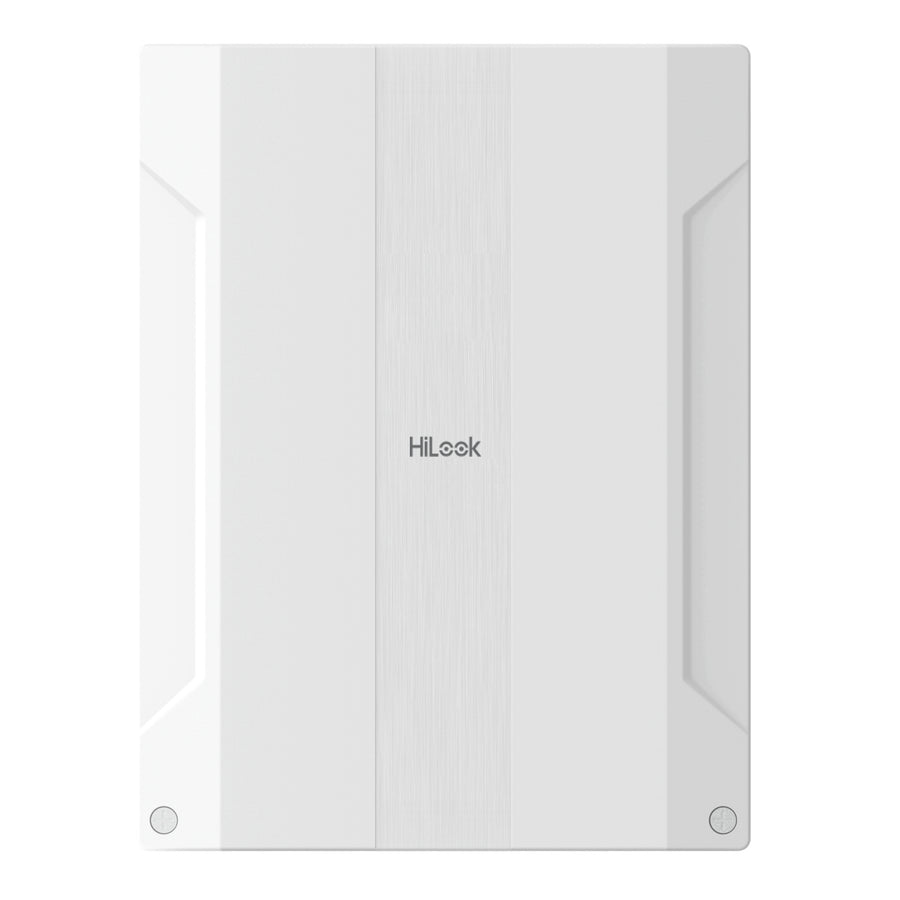

HiLook HA-ALARM-P48 - PRO Wired Alarm Hybrid Panel
Features
Hilook alarm control panel is a wired intrusion control panel with wireless detectors & peripherals access capability. It is the first control panel that supports Speed-X bus, which is a creative technology and is used to transmit verification video/ picture from PIR-CAM. Besides, this hybrid control panel supports 1 customized voice library and is designed for users to upload customized voice files, which will be played via alarm phone call when alarm triggered. As for basic functions, it supports TCP/IP,and GPRS/3G/4G communication methods. It also supports Hik-ProConnect, Hik-Connect, Hik IP Receiver, Hik IP Receiver Pro and Hik-Central, which is applicable to the scenarios of market, hotel, supermarket, warehouse, office, house (especially with cables pre-installed), etc.
- Hybrid system: 8 on-board zones and 40 wired/wireless zones expandable; 4 on-board outputs (2 relay outputs and 2 I/O outputs), and 44 wired/wireless outputs expandable
- Dual path communication of alarm events and other signals over LAN, PSTN, GPRS or 3G/4G utilizing a main and backup channel with configurable priority
- 2-ch onboard IP camera video verification, supports video recording (5s pre-alarm + 2s post-alarm, or 2s pre-alarm + 5s post-alarm) for verification to the alarm receiving email or mobile client
- Supports arming/disarming via keypad, keyfob, mobile client, iVMS-4200, SMS and tag
- Pushes alarm notification via messages and Hik-Connect
- Supports ISAPI, Cloud P2P, ISUP, CSV-IP and DC-09 protocol
- Supports 1 Speed-X BUS
Specifications
Technical Specifications
| Zones | 48(8 on-board zones, max 4 wired PIRCAM) |
|---|---|
| Area | 16 |
| User | Installer: 1Administrator: 1Operator: 46 |
| SMS notification | Supports (with GPRS/3G/4G module) |
| Onboard video clips | 2 |
| ARC protocol | ISAPI: Supports iVMS-4200 client software and web clientCloud P2P: Supports cloud P2P privacy protocolDC-09: ARC accessible (ADM-CID/SIA-DCS)CSV-IP: Supports CSV-IPISUP: Supports ISUP 5.0 |
| Programming tools | Web/iVMS-4200/Hik-ProConnect/Hik-ProConnect |
| Firmware upgrade | Web/iVMS-4200/Hik-ProConnect |
| End of Line Resistance | Support 1K, 2.2K, 4.7K, 5.6K, 6.8K, 8.2K |
| Alarm input | 48 (8 on-board zones) |
| Alarm output | 48(Including 2 on-board relay outputs and 2 I/O outputs) |
| Power Output | 1. Bell: maximum 12V 1.2A2. AUX: maximum 12V 1.5A3. Bell and AUX maximum 12V 2.1A |
| Bus | 1 Speed-X bus |
| Sounder output | 1 wired on-board sounder output |
| Tamper-Proof | 1 switch to detect removal from mounting1 switch to detect front cover open |
| Netowrk interface | 1 RJ45 10M/100M Ethernet interface |
| Indicator | 4 on-board LEDs1. 1 AC power LED indicator (Green)2. 1 system status LED indicator (Green/Red)3. 1 PSTN status LED indicator (Green/Red)4. 1 mobile communication status LED indicator (Green/Red) |
| Power interface | 100 to 240 VAC (On-board power transformer) |
| Power Consumption | 1. 220V power supply(1) With an alarm: 1.875A, 30W(2) Without an alarm: 200mA, 3.2W2. 13.5V battery supply(1) With an alarm: 1.5A, 22W(2) Without an alarm: 150mA, 2W |
| Battery type | Lead acid battery (12 V, 7 Ah, battery is not included by default) |
| Battery life span | Up to 36hrs |
| Operation temperature | -10°C to 40°C |
| Operation humidity | 10% to 90% |
| Shell materia | Plastic |
| Color | White |
| Dimension(WxHxD) | 261 mm × 199 mm × 86.4 mm |
| Weight | 996.5 g |
| Tag | 48 |
| Keyfob | 48 |
| Keypad | 4 |
| Wireless sounder | 8 |
| Brand | HiLook |
|---|---|
| Product Type | Smart Home & Security > Security Systems |
| Weight | 1.5 kg |
| Warranty |
|---|
