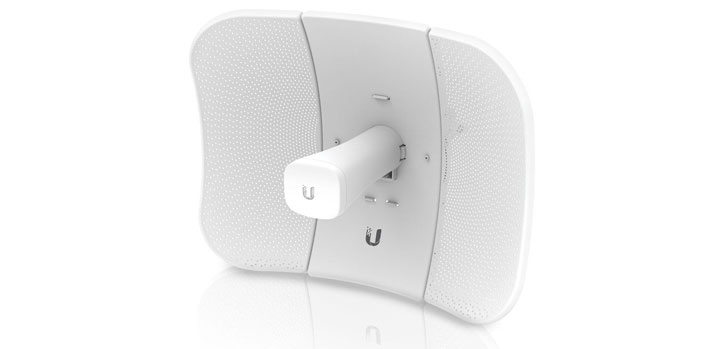

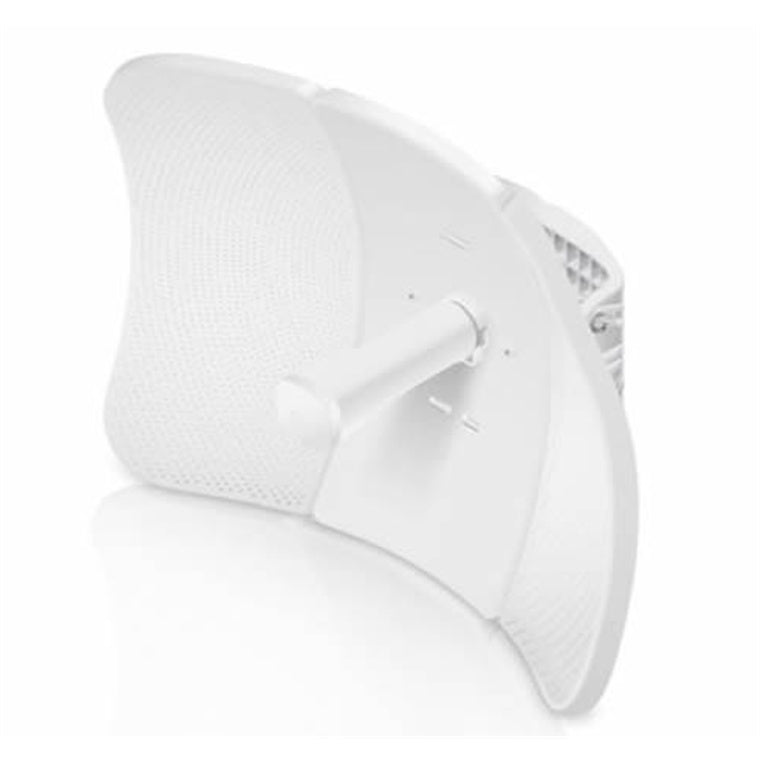

LBE-5AC-LR - Ubiquiti LiteBeam 5AC 26dBi Long-Range CPE and PtP Radio

Name: Ubiquiti LBE-5AC-LR - B2B - Networking & Routing | KW Tech NZ
Brand: Ubiquiti
SKU: LBE-5AC-LR
Price: 249.99 NZD
Availability: InStock

SKU: LBE-5AC-LR ● In Stock

$217.38

inc GST ▲ +GST

Free shipping over $299 Genuine product 7-day returns

Features

Ubiquiti LiteBeam 5AC Long Range is an affordable airMAX AC CPE designed for long-distance applications. The LBE-5AC-LR features a larger reflector size and elevation adjustment (azimuth is adjusted by rotation around the pole).

Specifications

Technical Specifications

Dimensions	512.5 x 385.75 x 258.3 mm (20.18 x 15.19 x 10.17")
Without Mount	1.360 kg (2.998 lb)
With Mount	1.735 kg (3.825 lb)
Power Supply	24V, 0.3A Gigabit PoE Adapter (Included)
Max. Power Consumption	7W
Power Method	Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range	24V ± 10%
Gain	26 dBi
Networking Interface	(1) 10/100/1000 Ethernet Port
Processor Specs	MIPS 74Kc
Memory	64 MB DDR2
LEDs	Power, Ethernet
Channel Sizes	PtP Mode: 10/20/30/40/50/60/80 MHzPtMP Mode: 10/20/30/40 MHz
Enclosure Characteristics Reflector (Aluminum) / Plastic	PC
Mounting	Pole-Mounting Kit (Included)
Wind Loading	550 N @ 200 km/h (123.6 lbf @ 125 mph)
Wind Survivability	200 km/h (125 mph)
ESD/EMP Protection	± 24 kV Contact / Air
Operating Temperature	-40 to 70° C (-40 to 158° F)
Operating Humidity	5 to 95% Non-condensing
Certifications	CE, FCC, IC

Warranty	12 months

Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
